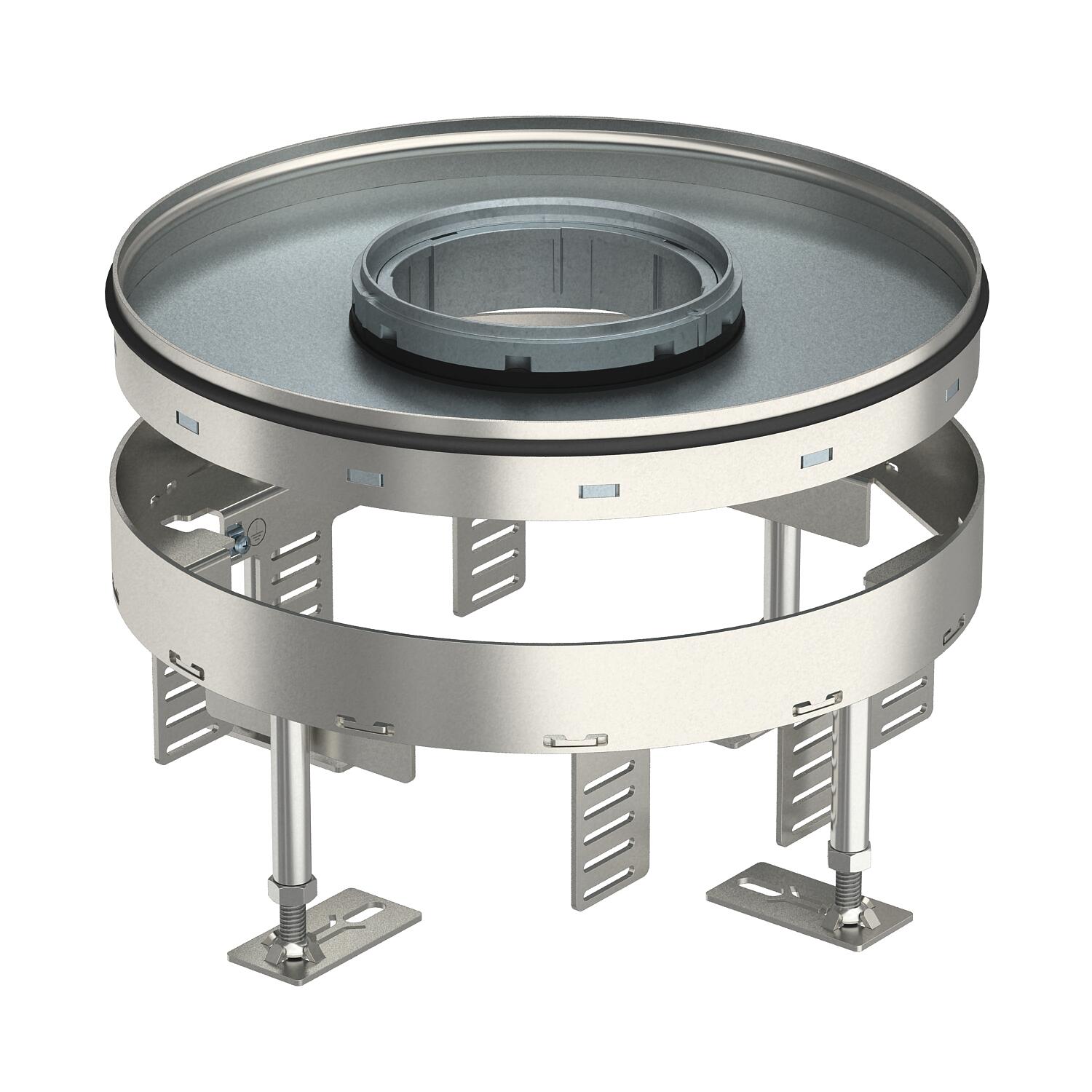

Height-adjustable heavy-duty cassette for tube body RKFRSL, nominal size R7, stainless steel
Item no. 7409468 | EAN 4012195869757
- Product description
-
Product descriptionRound heavy-duty cassette for tube body of nominal size R7 for the installation of accessories in trunking systems, raised and cavity floors, in dry or wet-cleaned floors indoors. Load class 2 to 20 kN.
Height-adjustable heavy-duty cassette with tube body with a load bearing capacity of 2-20 kN, 2-compartment. Two APMT2 cover plates and one APMT5 can be installed. For the installation of two UT3 and one UT4 universal support for seven single accessories with support ring/support clamp or 10 Modul 45 devices. The tube body is not contained in the scope of delivery.
-
- Technical data
-
Technical data

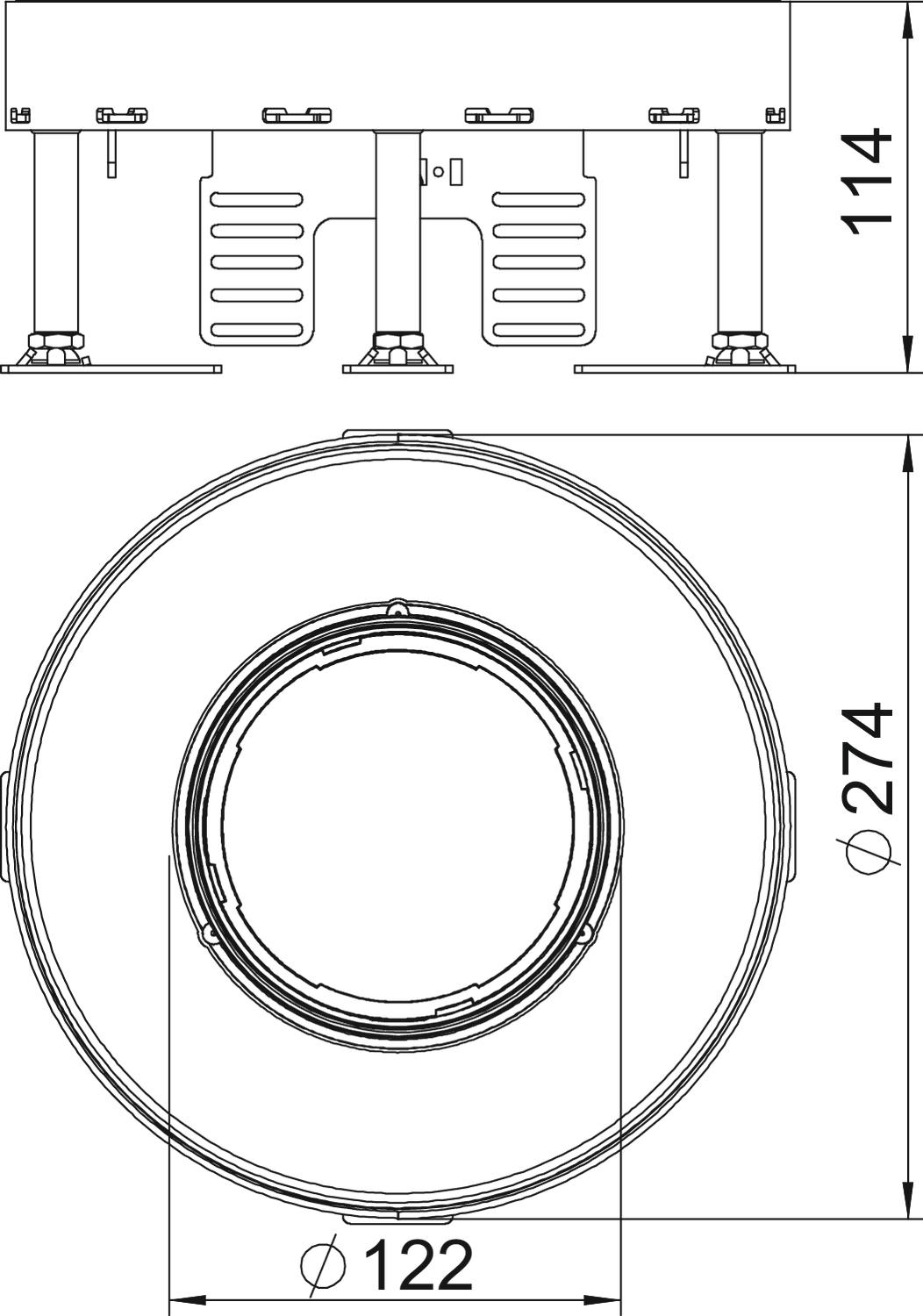

Cable outlet version Lowerable tube body CO2 Footprint (GWP) Cradle-to-Gate 21,0771 kg CO2e / 1 Piece Cover version Round Decouplable no Device support to accept mounting boxes yes Dimension Ø275mm Dimension h 114 mm Floor care Wet Floor covering thickness 25 mm Floor height, max. 159 mm Floor height, min. 114 mm Heavy load class 20 kN (OBO SL2) Heavy-duty version yes Height-adjustment range, max. 159 mm Height-adjustment range, min. 114 mm Installation depth 114 mm Installation diameter 275 Installation system type UT3 / UT4 Material Stainless steel 1.4301 Nominal size for device installation units R7 Number of cable outlets 1 Number of installable devices 10 Number of mounting boxes 3 Protection rating (IP) when unused IP44 Protection rating (IP) when used IP20 Protection rating IK code IK10 Suitable for cavity floor installation yes Suitable for raised floor installation yes - All types
-
System accessories
Products Types Item no. Quantity SSU
Height adjustment unit RKNEV2
RK NEV2 110 7405815 1 PU
Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette
TUK2 GV 7428140 1 piece
Noise protection slipper
SRS 4 7405798 4 piece
Heavy-duty mounting lid for 350, nominal size R7
DUG 350 R7SL 7401414 1 piece
UT3 universal support, with cover plate for Modul 45® devices, system length 165 mm
UT3 45 3 7408723 1 piece
Mounting support for data technology connection sockets, system length 165 mm
MTU 2 7407836 1 piece - Downloads
-
