Note: This article is discontinued.
You can find the current article here: 7410136 / Height-compensation kit ASH 250-4 320
Height compensation set (215-270 mm) for UZD250-3 with height 165–220 mm
Item no. 7410158 | EAN 4012195473275
- Product description
-

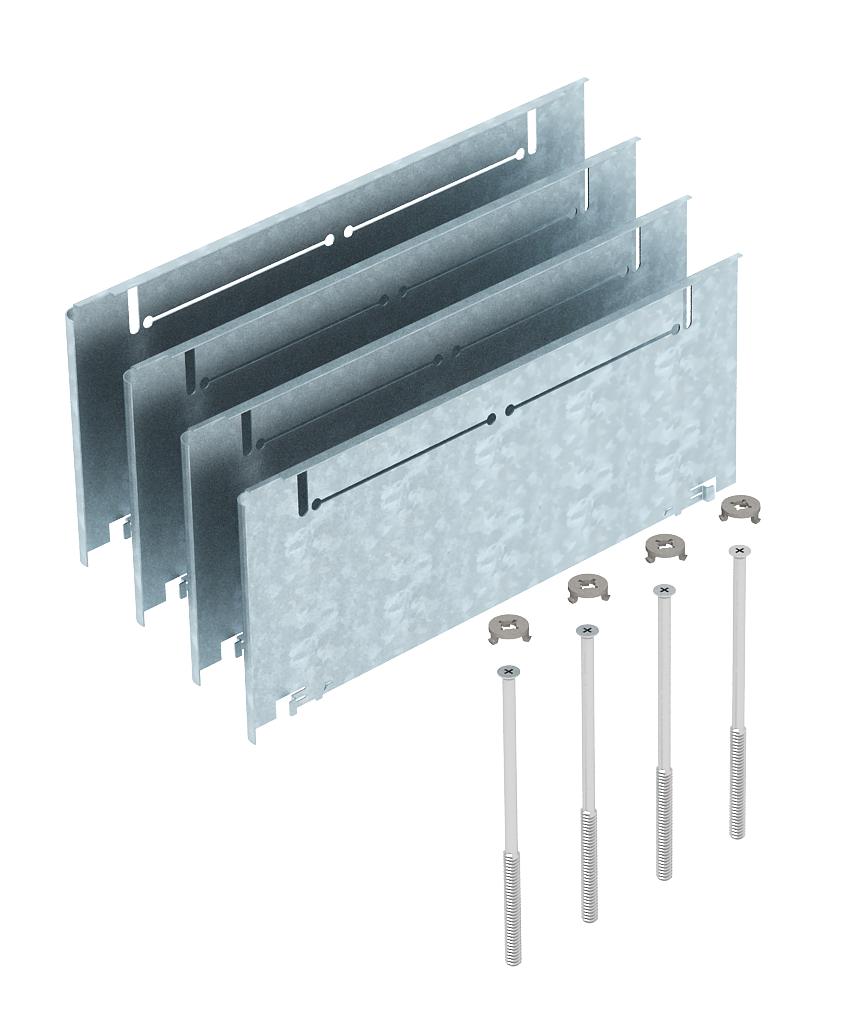

Product descriptionHeight compensation set for underfloor boxes UZD250-3 with a construction height of 165 to 220 mm for construction stacking of the UZD to a height of 215-270 mm, consisting of four fall plates, four height adjustment screws and four rotary locks.
-
- Technical data
-
Technical data

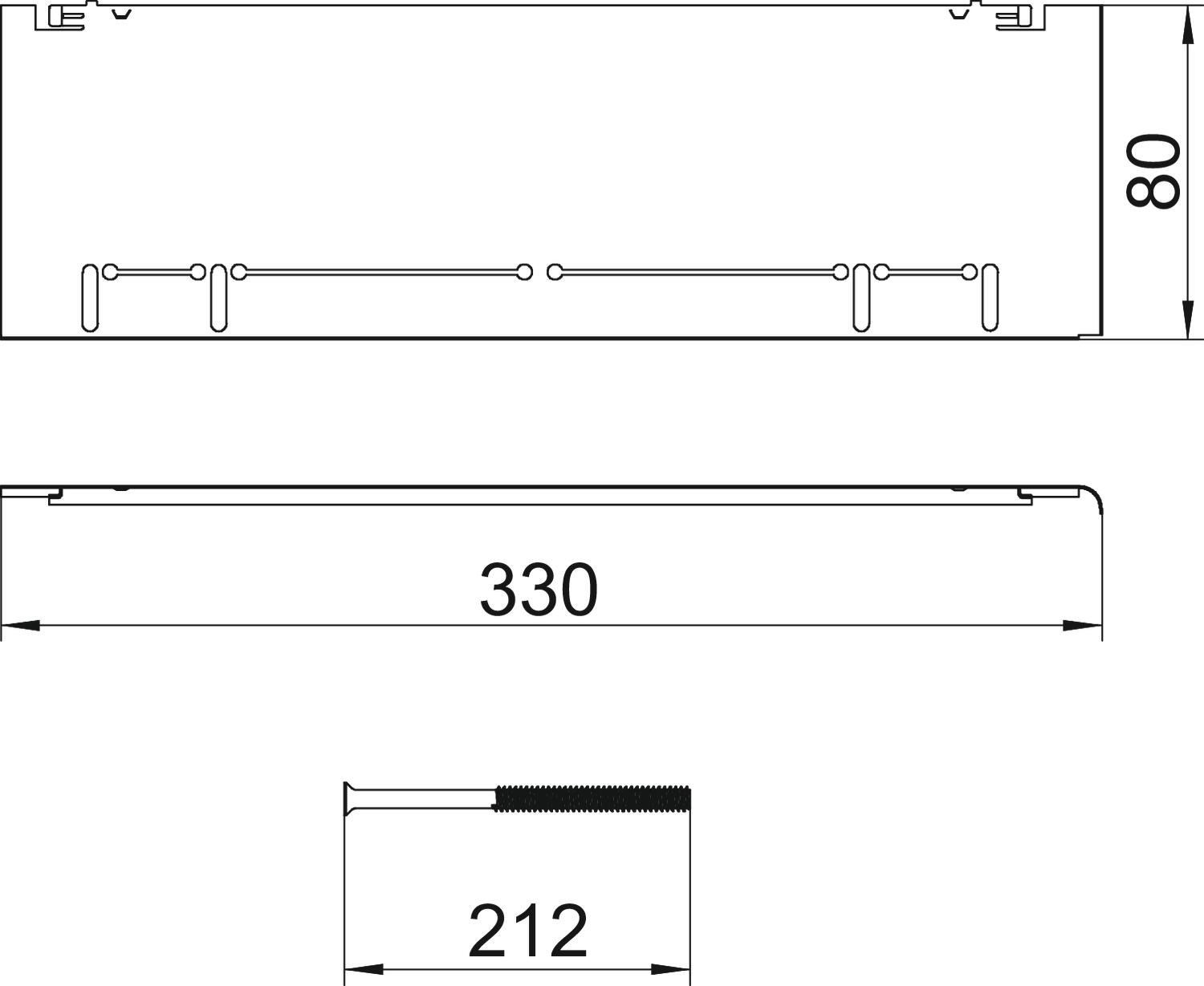

Decouplable no Dimension A 330 mm Dimension B 80 mm Dimension l 212 mm Floor plate no For pipe connection no Height-adjustment range, max. 270 mm Height-adjustment range, min. 215 mm Installation opening for on-floor tank no Lowerable to be flush-floor no Material Steel Screed height, max. 270 mm Screed height, min. 215 mm Seal installation option no Suitable for cavity floor installation no Suitable for raised floor installation no Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts no Surface Strip galvanized Trunking width, max. 250 mm Trunking width, min. 190 mm Version for Square - All types
- Downloads
-
Data sheet ASH250-3 215270 / 7410158 , 0.18MB , pdfEU declaration of conformity ASH250-3 215270 / 7410158 , 0.11MB , pdfMounting instructions Mounting instructions, stacking aid , 0.17MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfNo invitation to tender text is available for this product.
