HoverCube VHF-8, empty housing
Item no. 6109822 | EAN 4012195125204
- Product description
-

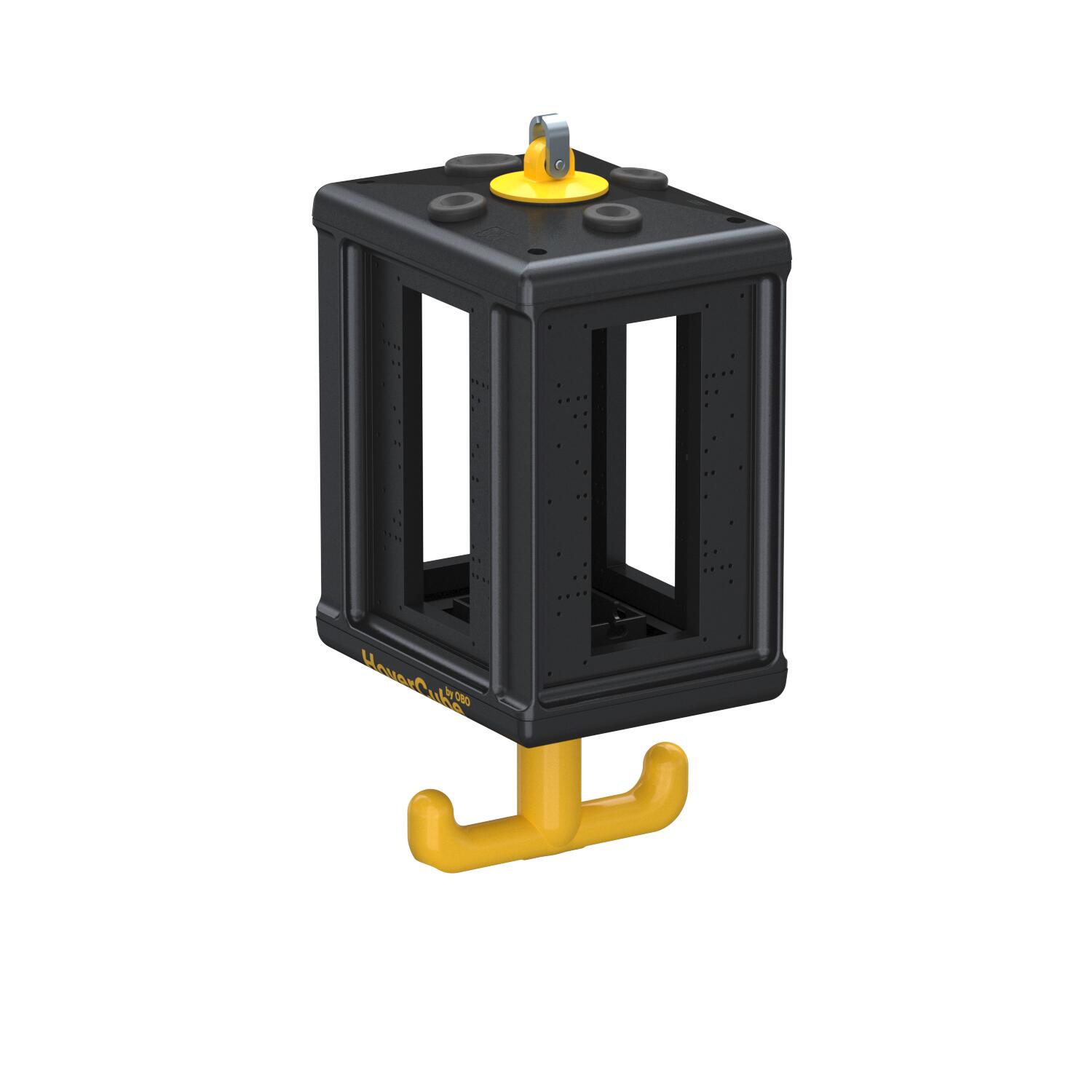

Product descriptionEmpty housing with suspension lug and grip hook, for the installation of electrical resources, with included partition. Without cover plates to supply workplaces in wet areas. Protection rating: IP44.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
-
- Technical data
-
Technical data
CEE socket, 16 A Without CEE socket, 32 A Without Colour Graphite black; RAL 9011 Depth 175 mm Dimension 175x135x327 FI protection switch Without Handling abhängbar Material Polyamide Military version no Other installations and/or empty slots 8 Protection rating IP44 Supply/connection option Miscellaneous Dimensions

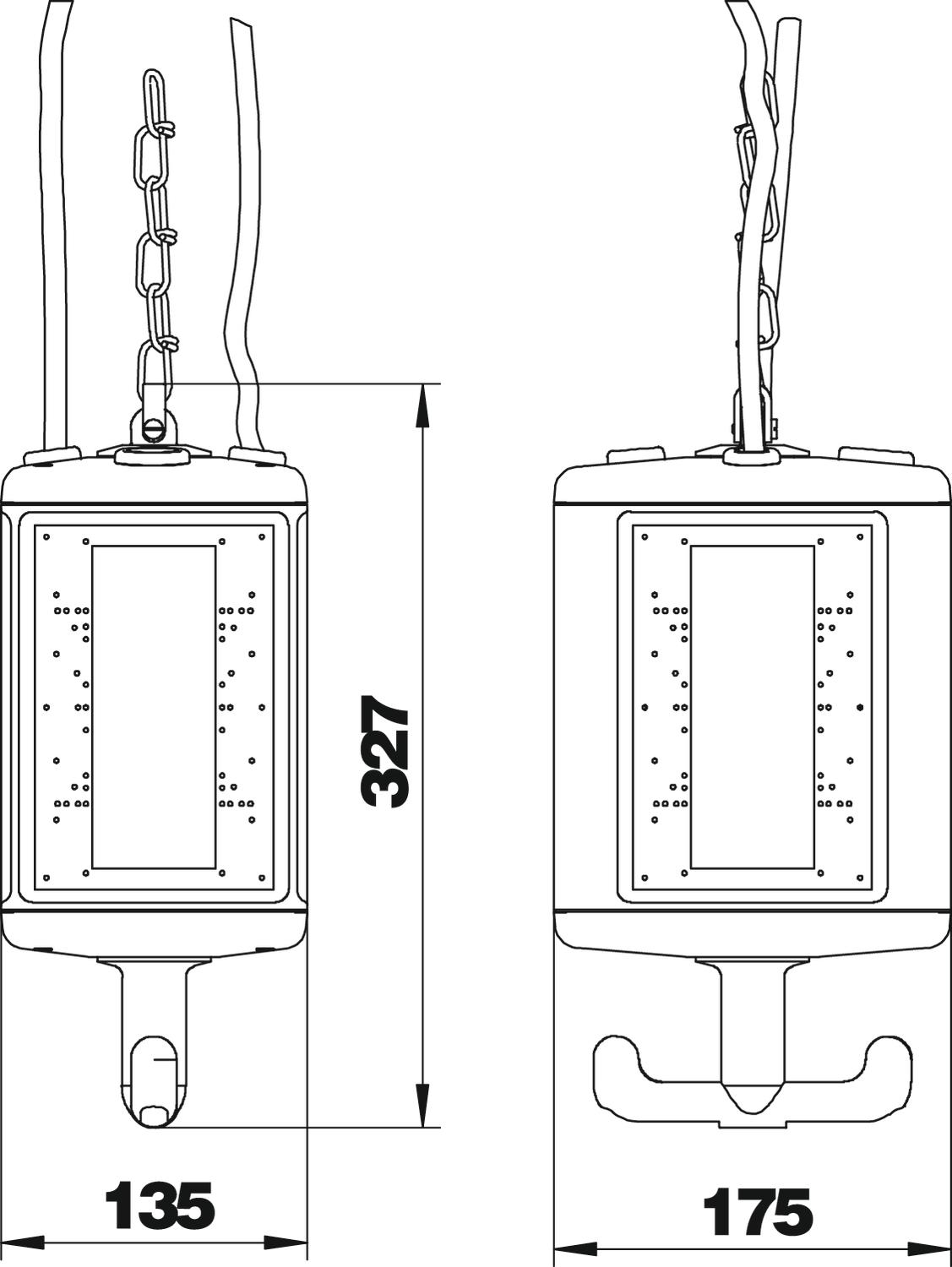

Height 327 mm Width 135 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 5,631 kg CO2e / 1 Piece CO₂ Footprint (GWP) 5,631 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Knotted chain
VH-K800 6109870 1 m
Positioner for power supply units VH
VH-POS 6109887 1 piece
VH/VHF tension spring
VH-F100VA 6109829 1 piece - Downloads
-
Data sheet VHF-8 LG / 6109822 , 0.19MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity VHF-8 LG / 6109822 , 0.13MB , pdfRoHS Declaration of conformity VHF-8 LG / 6109822 , 0.13MB , pdfMounting instructions Mounting instructions, HoverCube (pre-terminated) , 3.74MB , pdf
