HW Cavity wall electronic box 61, airtight
Item no. 2003826 | EAN 4012196865499
- Product description
-

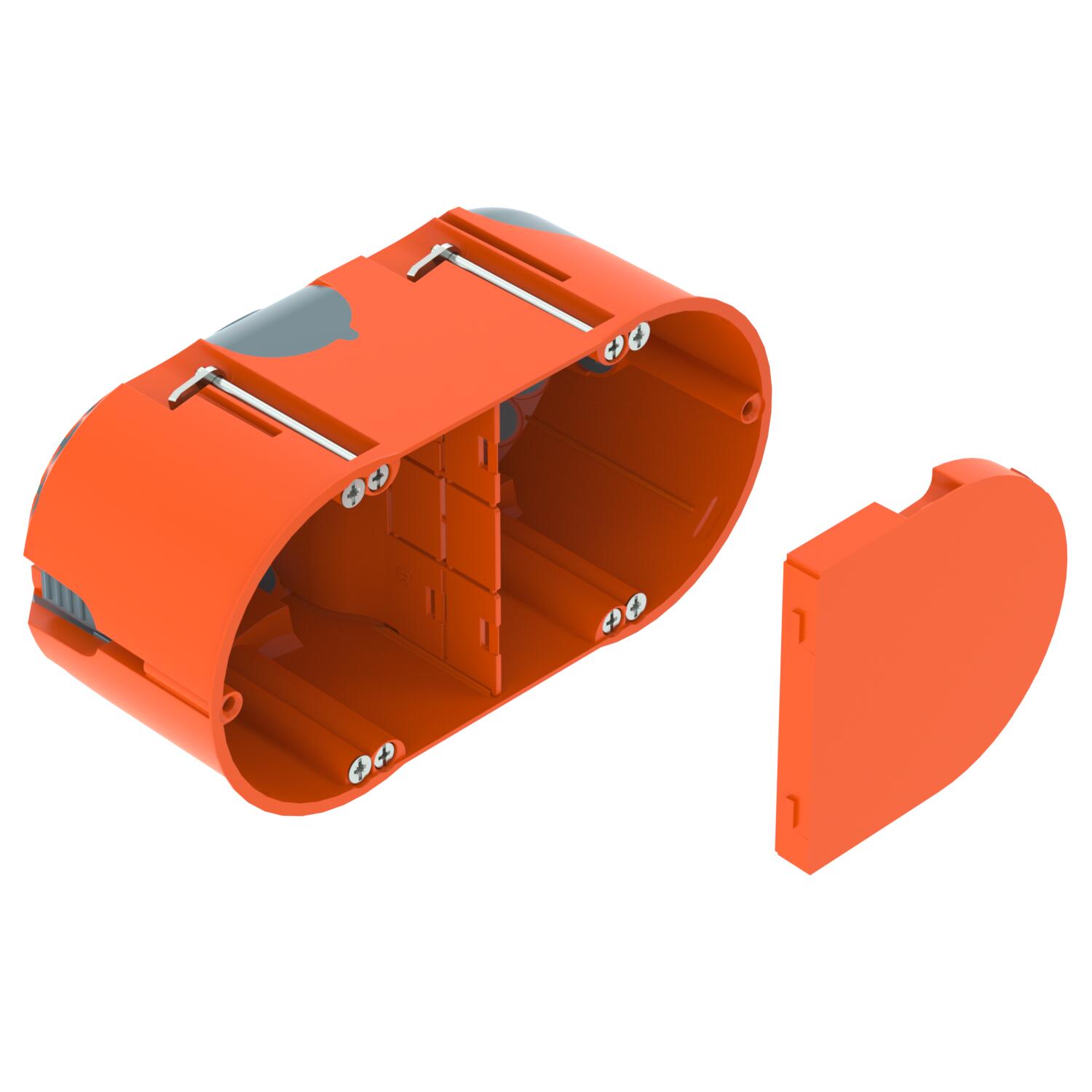

Product descriptionCavity wall electronic box with membrane entries, cover and partition, for use in cavity walls with an installation depth of at least 61 mm and a plate thickness of 5–40 mm.
• 6 screw domes
• Device screws, clamping straps
• 4 combination pipe entries of Ø 20 and 25 mm
• 4 entries for NYM cables 3 x 1.5 mm²
• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²
• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²
• Airtight connection with other device boxes via connector, type ZH 11-V
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
-
- Technical data
-
Technical data

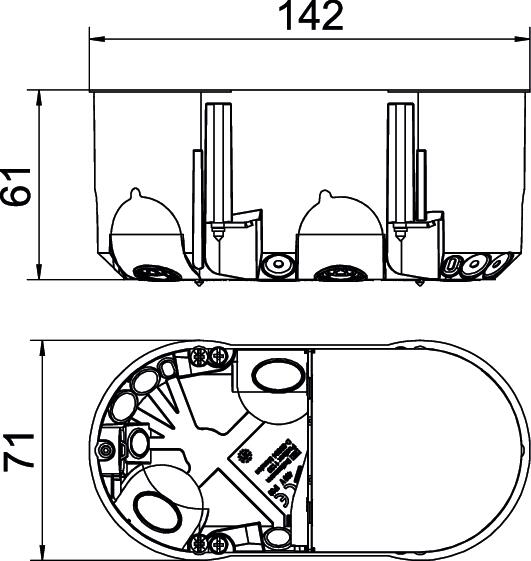

Accessory screw clearance 61 mm Airtight yes Cable entries 3 x 1.5 mm² 4 Cable entries 3 x 2.5 mm² / 5 x 1.5 mm² 2 Cable entries 5 x 2.5 mm² / 7 x 1.5 mm² 2 Cable entries for low voltages 2 Colour orange / grey Combination entries Ø 20 / 25 mm 4 Cover Orange Cover fastening Locking Device fixing Screws , Dimension 142x71 Flame-resistant Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C for pipe diameter 20/25 mm Halogen-free yes Impact-resistant no Material Polypropylene / Thermoplastic elastomer Milling hole diameter 68 mm No. of entries 14 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 1,5 mm² Number of switch boxes 2 Protection rating IP30 Rated voltage 400 V Shape Oval Suitable for plate thickness, max. 40 mm Suitable for plate thickness, min. 5 mm Support Connector Type of housing penetration Insertion membrane With bolts yes Dimensions
Height 61 mm Length 142 mm Width 71 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,2004 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,2004 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
