Joint cover, for trunking, type WDK 25040
Item no. 6152082 | EAN 4012196507375
- Product description
-

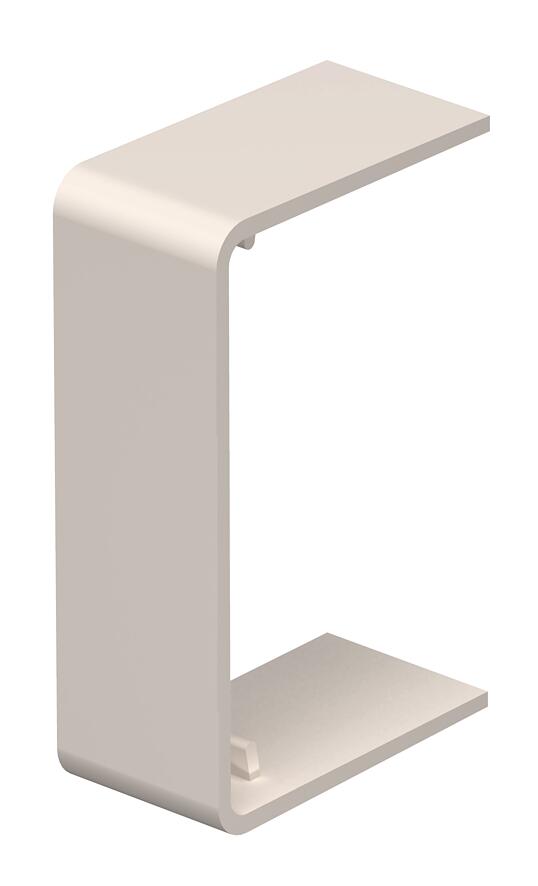

Product descriptionJoint cover for smooth connection of trunking segments.
-
- Technical data
-
Technical data
Colour Cream; RAL 9001 Cover width 14 mm Dimension 25x40mm Fastening type Lockable for duct dimension 25x40 Halogen-free no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Shape Symmetrical Trunking depth 25 mm Version for Trunking cut cover Dimensions

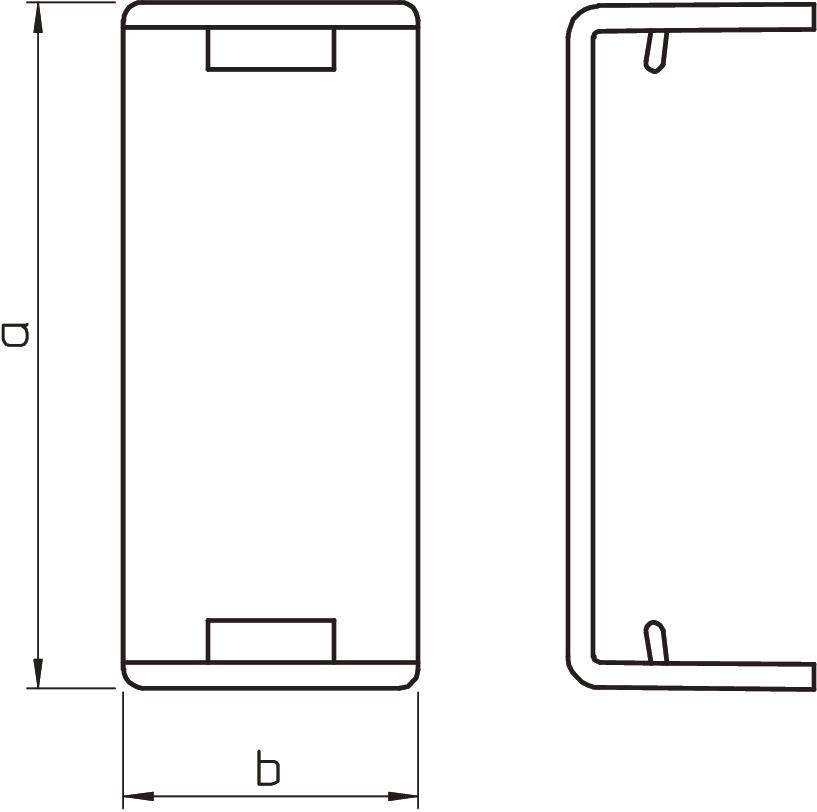

Dimension a 42 mm Dimension b 14 mm Dimension H 40 mm Height 25 mm Length 14 mm Width 42 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0233 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0233 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet WDK HS25040CW / 6152082 , 0.50MB , pdfSafety data sheet WDK HS25040CW / 6152082 , 0.02MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HS25040CW / 6152082 , 0.11MB , pdfUK Declaration of Conformity WDK HS25040CW / 6152082 , 0.09MB , pdfREACH Declaration of conformity WDK HS25040CW / 6152082 , 0.13MB , pdfRoHS Declaration of conformity WDK HS25040CW / 6152082 , 0.13MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
