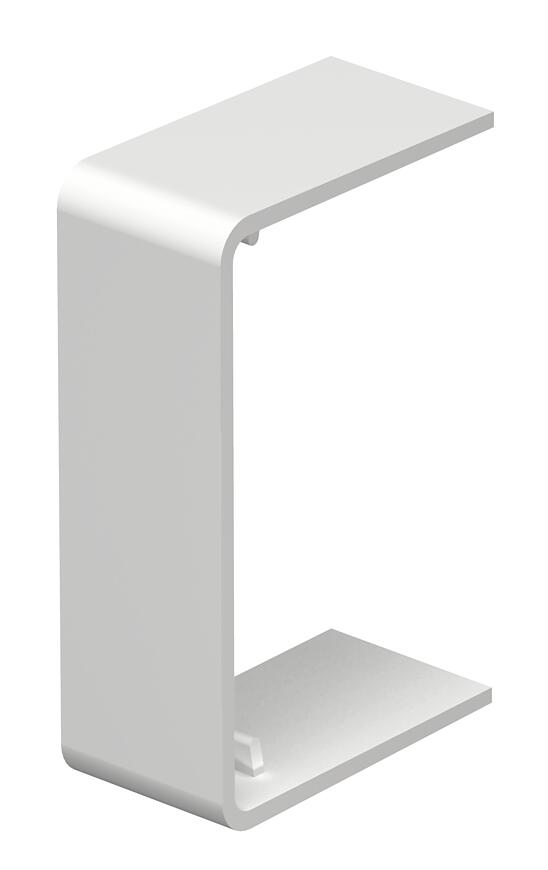

Joint cover, for trunking, type WDK 60110
Item no. 6193596 | EAN 4012195461845
- Product description
-
Product descriptionJoint cover for hiding cut edges and for smooth connection of trunking segments.
-
- Technical data
-
Technical data
Colour Pure white; RAL 9010 Dimension 62x113x18mm Fastening type Lockable Halogen-free no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Shape Symmetrical Version for Trunking cut cover Dimensions

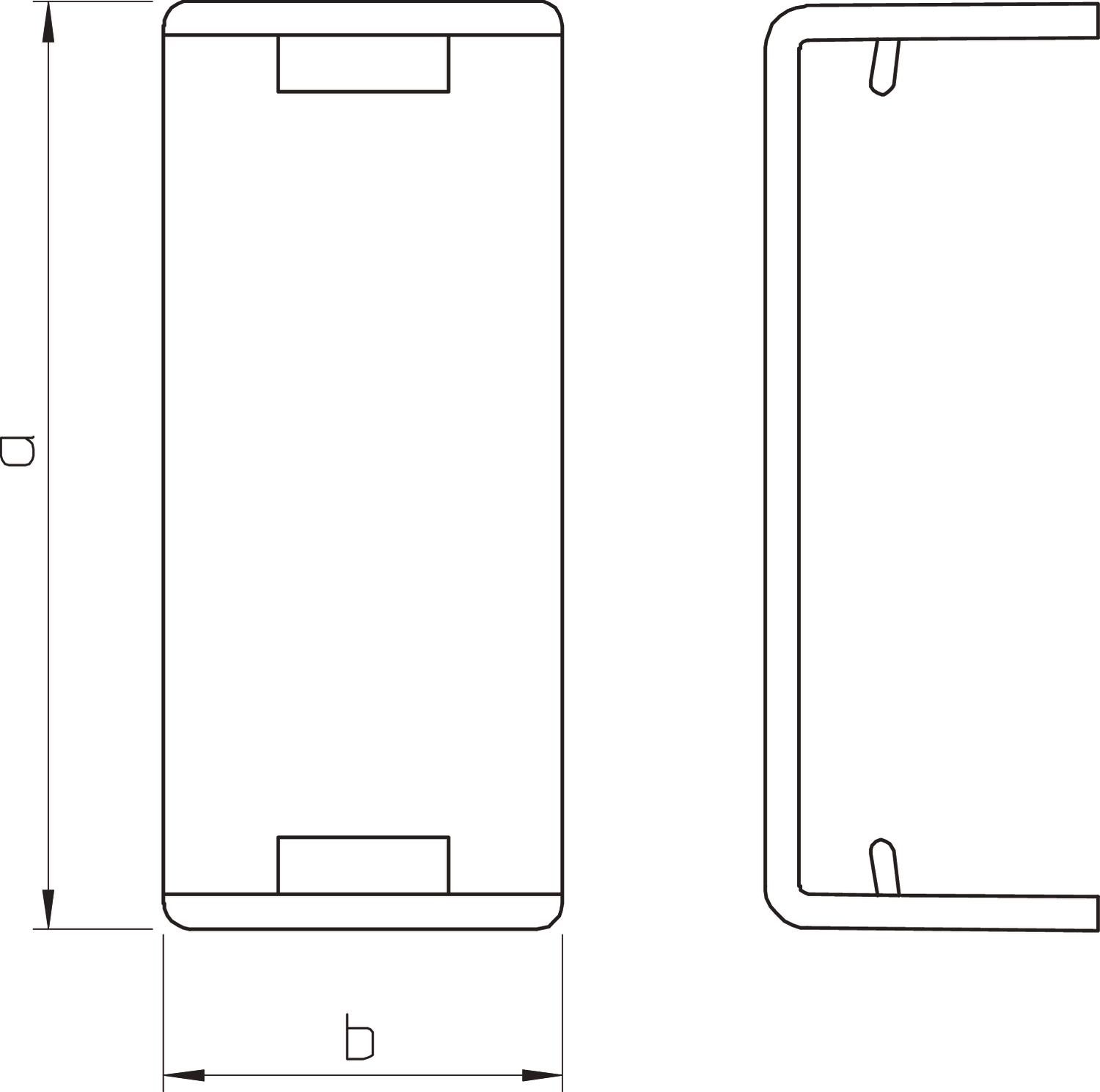

Dimension a 113 mm Dimension b 18 mm Height 62 mm Length 18 mm Width 113 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0535 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0535 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet WDK HS60110RW / 6193596 , 0.18MB , pdfSafety data sheet WDK HS60110RW / 6193596 , 0.02MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HS60110RW / 6193596 , 0.10MB , pdfUK Declaration of Conformity WDK HS60110RW / 6193596 , 0.09MB , pdfREACH Declaration of conformity WDK HS60110RW / 6193596 , 0.12MB , pdfRoHS Declaration of conformity WDK HS60110RW / 6193596 , 0.13MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
