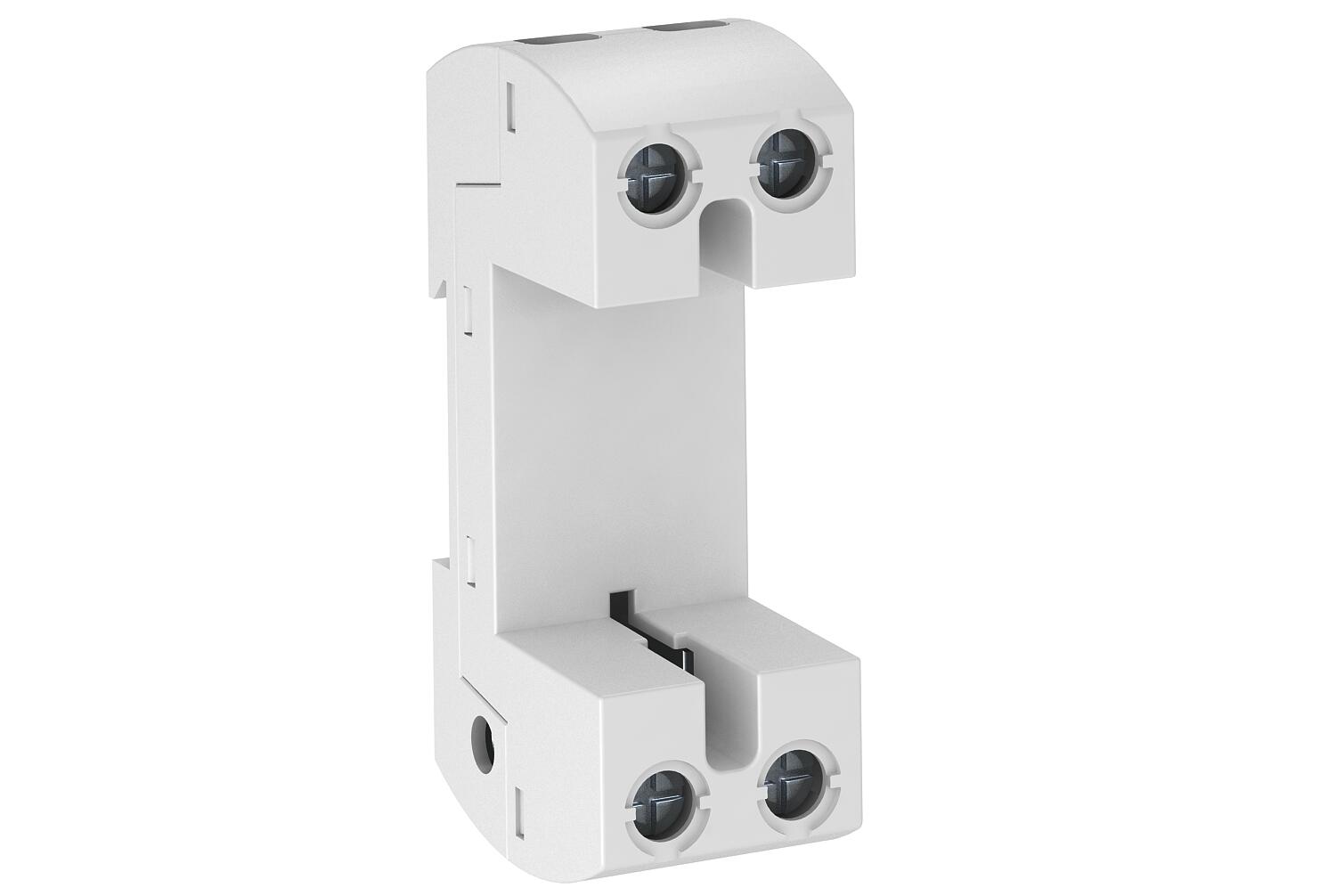

Lightning arrester/combination arrester base
Item no. 5096839 | EAN 4012195480792
- Product description
-
Product descriptionLightningController base, fits type:
• MC 50-B VDE
• MCD 50-B
• Incl. plug caps for labelling the connections
-
- Technical data
-
Technical data
Blow-out no Dimension 1-pole Explosion-tested version no Installation type DIN rail 35 mm Lightning protection zone LPZ 0→1 Lightning surge current (10/350) 125 kA Network form All Nominal discharge current (8/20 µs) 50 kA Operating temperature, max. 85 °C Operating temperature, min. -40 °C Permitted temperature range, max. 85 °C Permitted temperature range, min. -40 °C Pole version 1 Protection rating IP20 Remote signalling no Signalling on device None Test class, type 1 yes Version for 1-pole base Dimensions

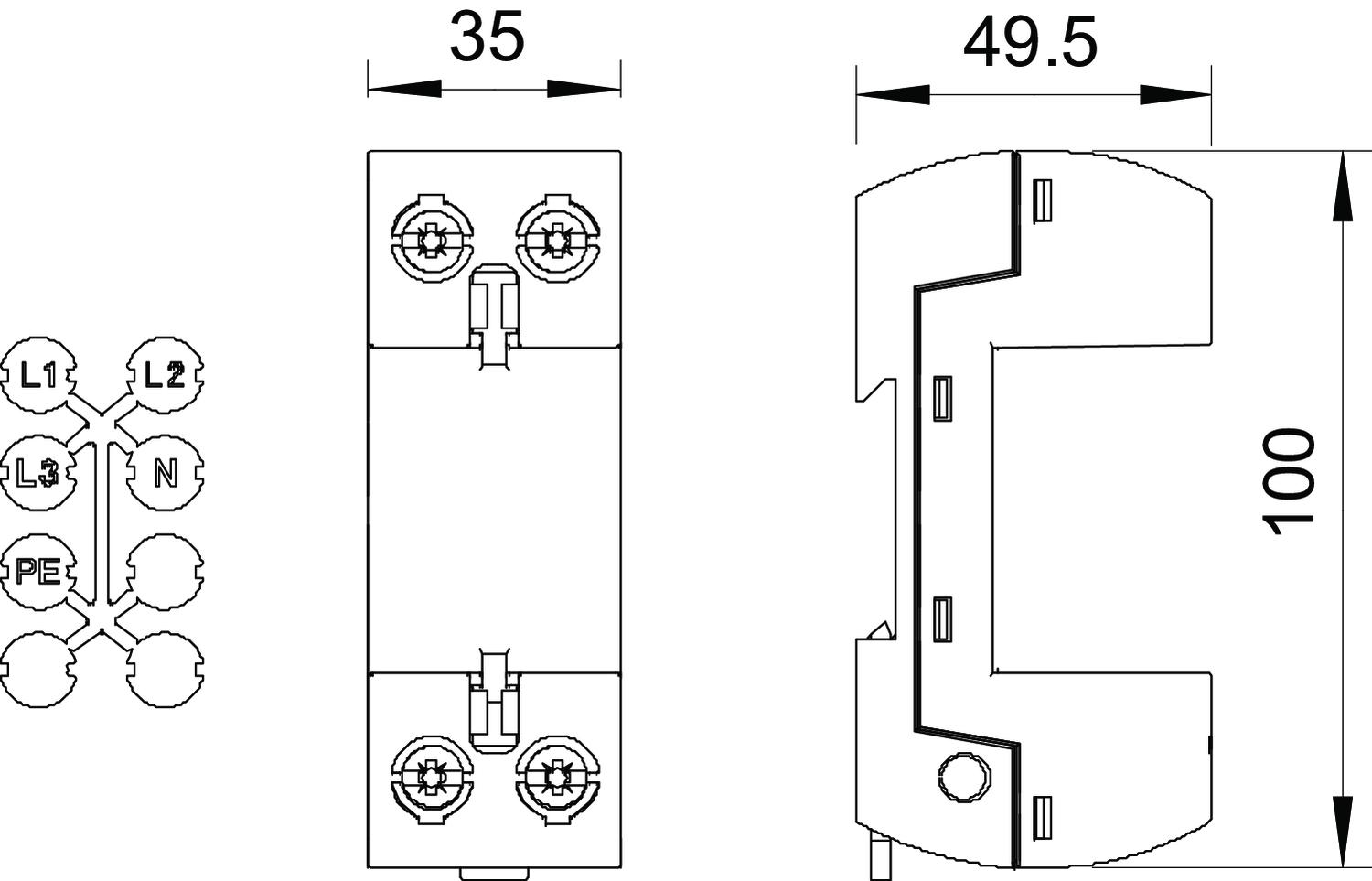

Height 49,5 mm Length 100 mm Width 35 mm Connectivity options
Arrester surge current (8/20 µs) [total] 125 kA Conductor cross-section, rigid (single-wire/multiwire), max. 50 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 10 mm² CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,9532 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,9532 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
