Lightning ISO clip
Item no. 2157349 | EAN 4012195207078
- Product description
-

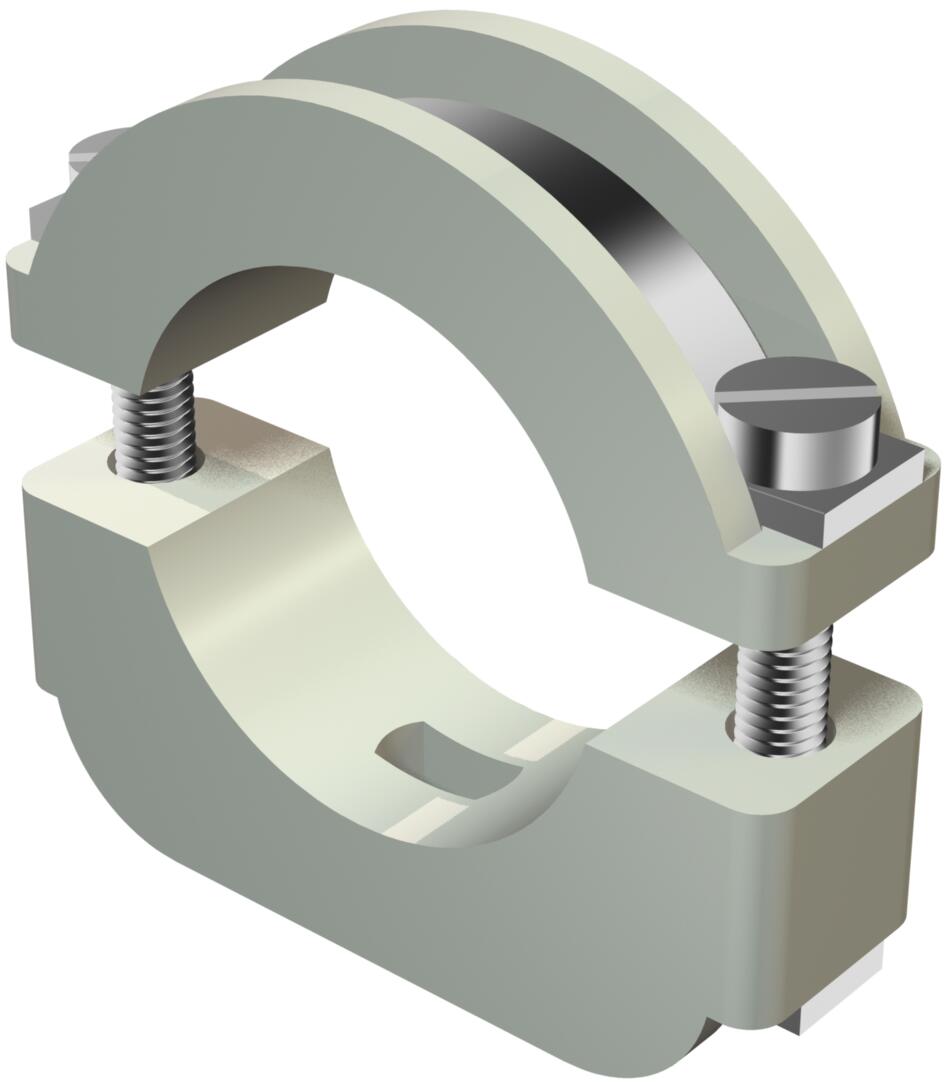

Product descriptionLightning ISO clips: plastic clip with metal insert, therefore also suitable for heavy-duty applications; metal parts made of electrogalvanised steel.
3015 with 4.5 mm slot.
*Sizes 6–12 and 10–17 not suitable for bolt-firing device.
-
- Technical data
-
Technical data
Bolt M5 x 35 Clamping range D, max. 34 mm Clamping range D, min. 24 mm Colour Light grey; RAL 7035 Dimension 24-34mm Fastening type Screw hole Halogen-free yes Material Polystyrene Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant no Version for Closed Dimensions

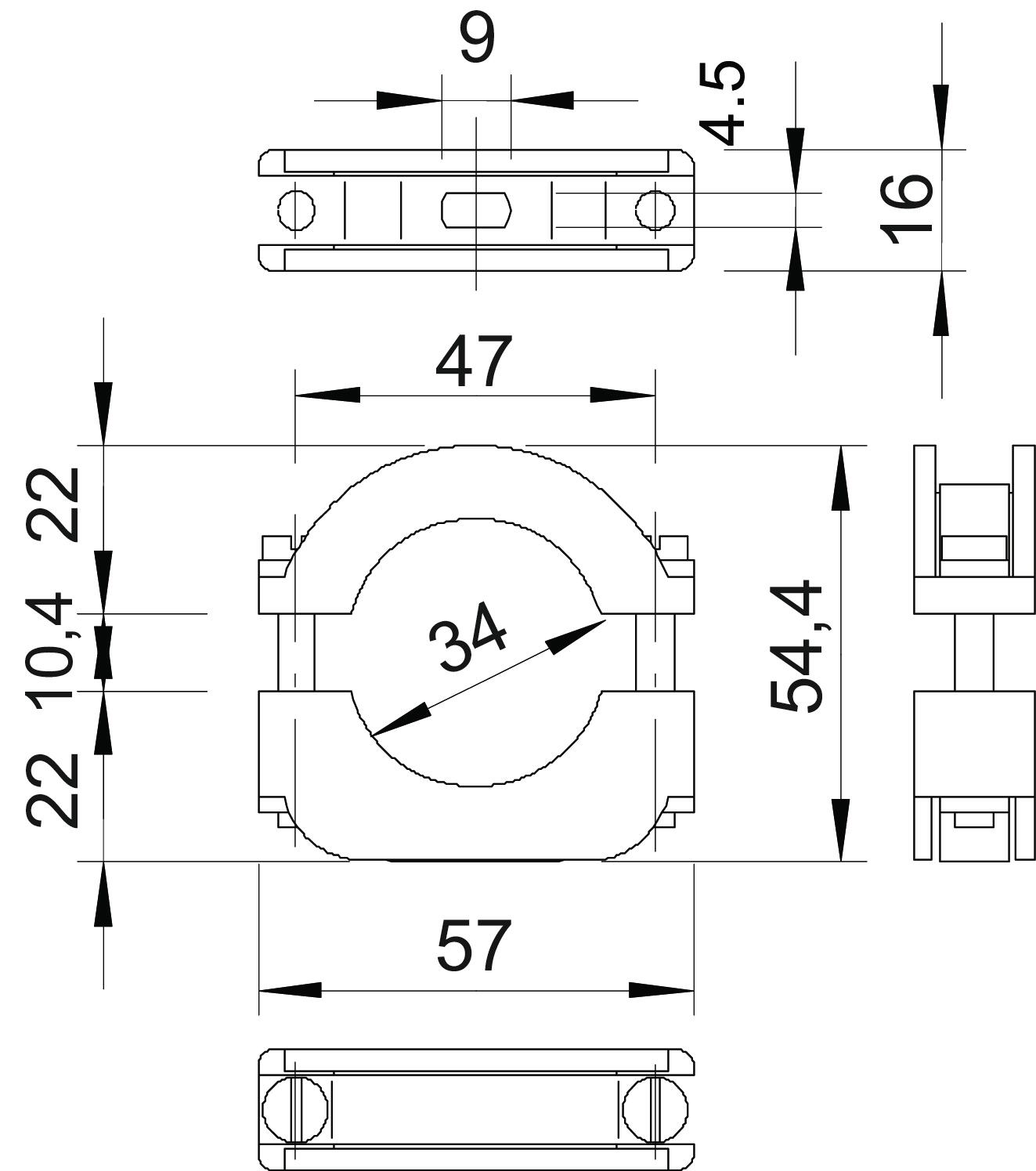

Dimension A 57 mm Dimension b 16 mm Dimension B 47 mm Dimension D 34 mm Dimension H 54,4 mm Dimension Ho (mm) 22 Dimension Hu (mm) 22 Dimension L 9 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1298 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1298 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 3015 34 LGR / 2157349 , 0.22MB , pdfEU declaration of conformity 3015 34 LGR / 2157349 , 0.10MB , pdfREACH Declaration of conformity 3015 34 LGR / 2157349 , 0.13MB , pdfRoHS Declaration of conformity 3015 34 LGR / 2157349 , 0.13MB , pdf
