Note: This article is discontinued.

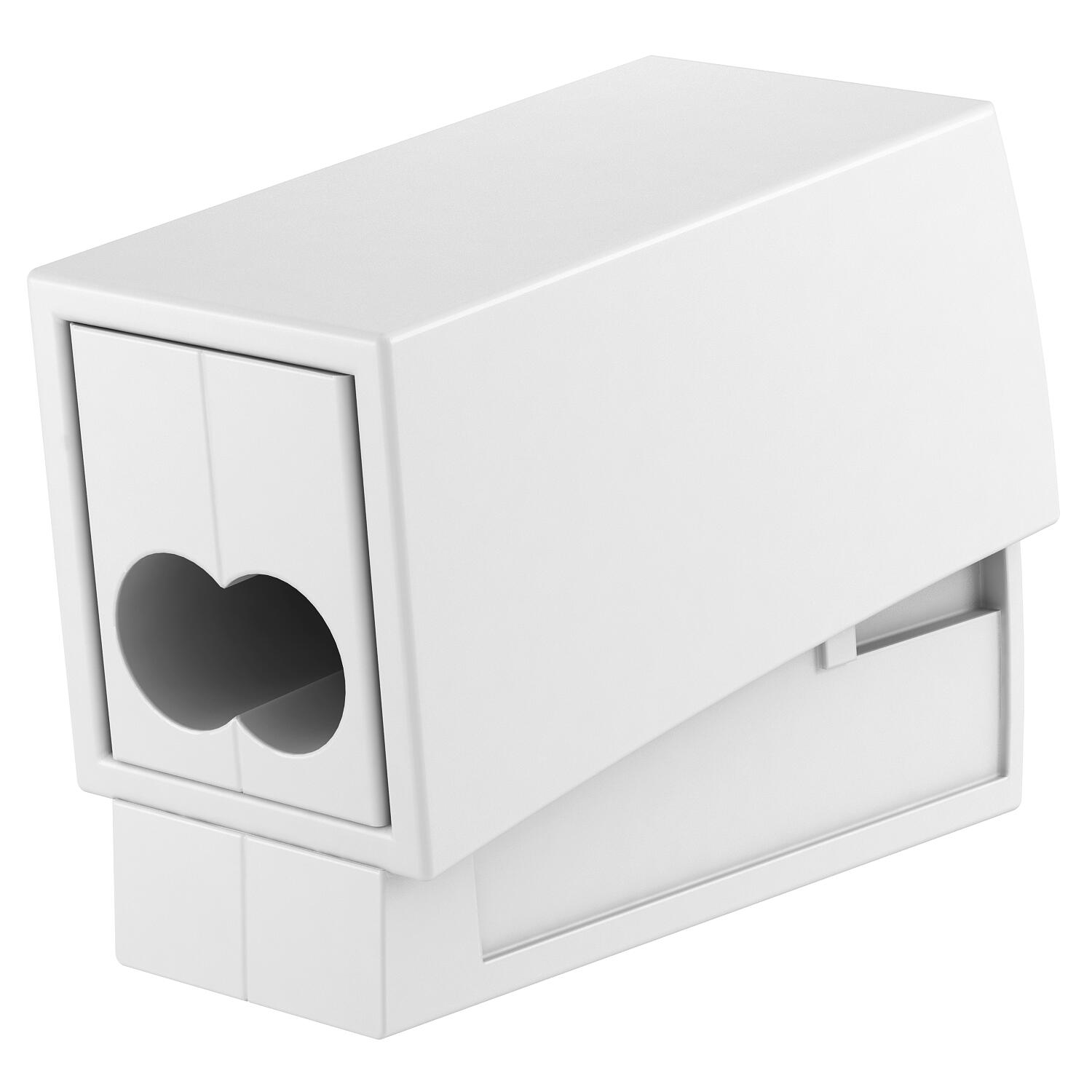

Luminaire connection terminal with 3 connections
Item no. 2054755 | EAN 4012195849353
- Product description
-
Product descriptionLuminaire connection terminal for toolless connection of remote cables. Tested according to EN 60998
Screwless terminal to connect single-wire cables to multi-wire cables.
Nominal cross-section: 0.5 ÷ 2.5
Nominal voltage 450 V
Nominal current 24 A
Stripping length: 8−9 mm
Inspection opening: Phase tester and testing pin (max. Ø 2 mm)
Max. approved ambient temperature according to EN 60998: T 110°C
-
- Technical data
-
Technical data

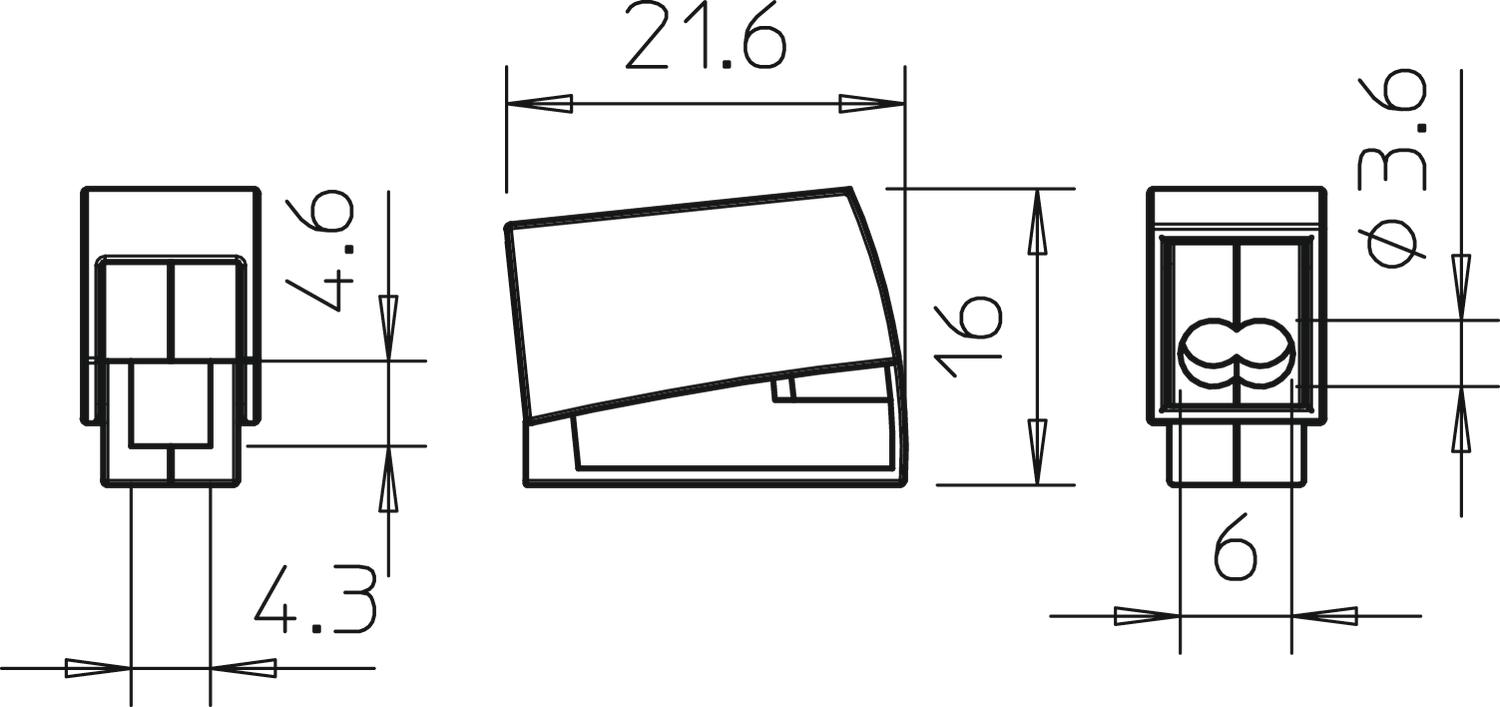

Colour White Dimension 0,5-2,5mm² Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C Height 16 mm Insulation material Thermoplast Length 20,5 mm Material Polyamide Max. Cable cross-section 2,5 mm² Measurement current IL 24 A No. of terminals 3 Nominal current 24 A Nominal voltage 450 V Permitted temperature range, max. 110 °C Permitted temperature range, min. -5 °C Pole number 1 Width 8 mm - All types
- Downloads
-
Data sheet 61 2/1 25 WS / 2054755 , 0.20MB , pdfREACH Declaration of conformity 61 2/1 25 WS / 2054755 , 0.13MB , pdfRoHS Declaration of conformity 61 2/1 25 WS / 2054755 , 0.13MB , pdf
