Mesh cable tray GR-Magic® 35 A4 3000 | 300 | 35 | 4.8 | 71.3 | no

Mesh cable tray GR-Magic® 35 A4

Item no. 6000091 | EAN 4012195360780

Item no. / Types

Length	3000 mm

Width

Height	35 mm

Wire diameter

Usable cross-section

Maintain electrical functions	no

Product description

Product description

Mesh cable tray with shaped connector of side height 35 mm.

Magnetic shield insulation without cover 15 dB, with cover 25 dB.

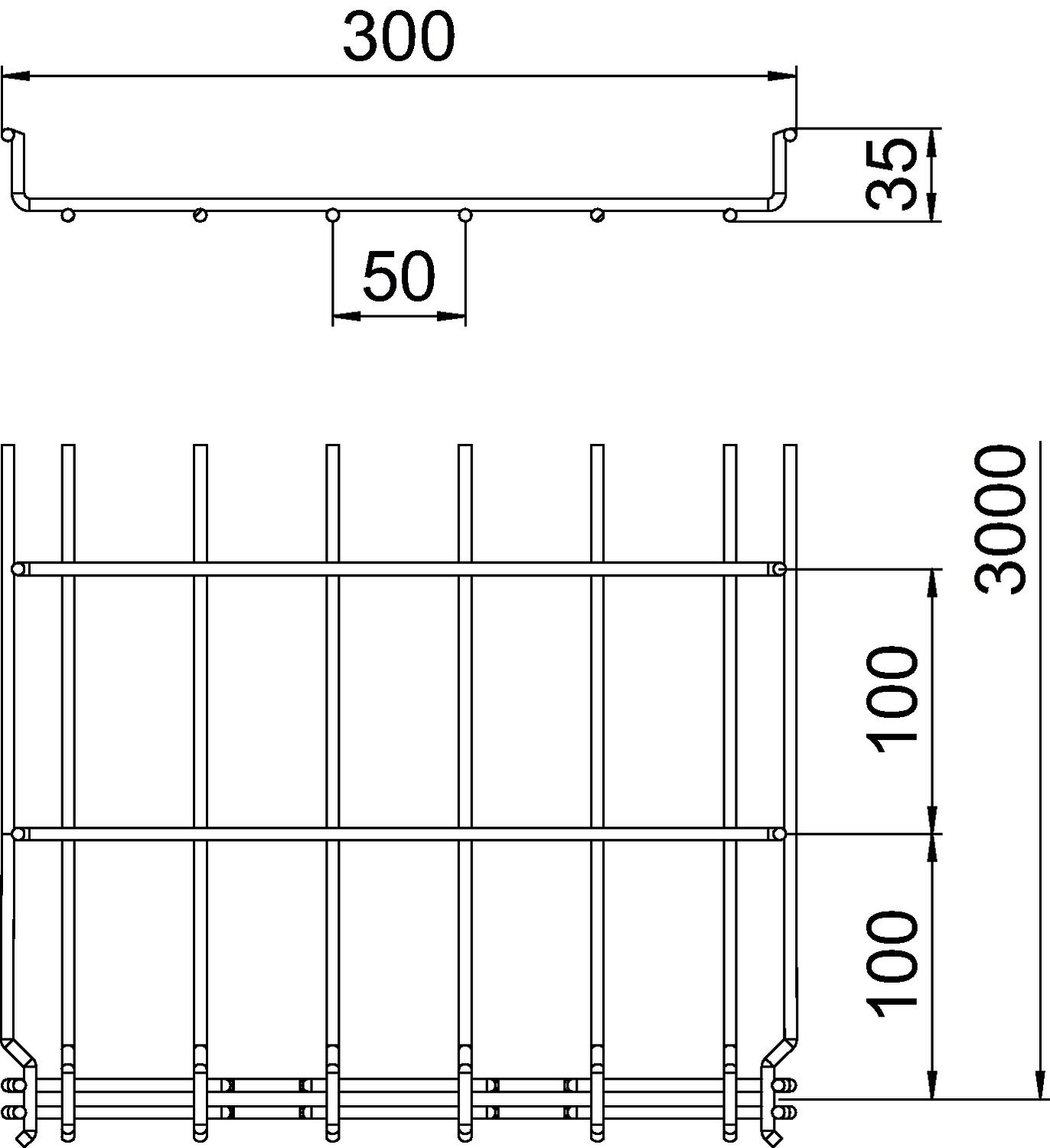

No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 35/50 = 20 x 100 mm).

Technical data

Technical data

Colour	stainless steel
Connector version	Integrated connector
Dimension	35x300x3000
Integrated partition	Without
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Stainless steel 1.4401
Profile shape	U-shaped

Rustproof steel, pickled	yes
Screwless connector	yes
Surface	Bright, treated
Type of connector, cable support system	Click fastening
Usable cross-section	10500 mm²
Usable cross-section	71,3 cm²
Wide-span version	no
Wire diameter	4,8 mm

Dimensions

Dimension B	300 mm
Height	1,38 in
Height	35 mm

Length	3000 mm
Width	300 mm
Width	11,81 in

Loads

Support spacing 1.0 m	0,75 kN/m
Support spacing 1.5 m	0,22 kN/m

Support spacing 2.0 m	0,15 kN/m

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	7,9622 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	7,9622 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

Load diagram, GR-Magic mesh cable tray, type GRM 35

All types

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
GRM 35 50 A4	3000 mm	50 mm	35 mm	3.9 mm	9.4 cm²	no	6000086	m	3 m
GRM 35 100 A4	3000 mm	100 mm	35 mm	3.9 mm	23 cm²	no	6000087	m	3 m
GRM 35 150 A4	3000 mm	150 mm	35 mm	3.9 mm	36.6 cm²	no	6000089	m	3 m
GRM 35 200 A4	3000 mm	200 mm	35 mm	3.9 mm	50.1 cm²	no	6000090	m	3 m
GRM 35 300 A4	3000 mm	300 mm	35 mm	4.8 mm	71.3 cm²	no	6000091	m	3 m
