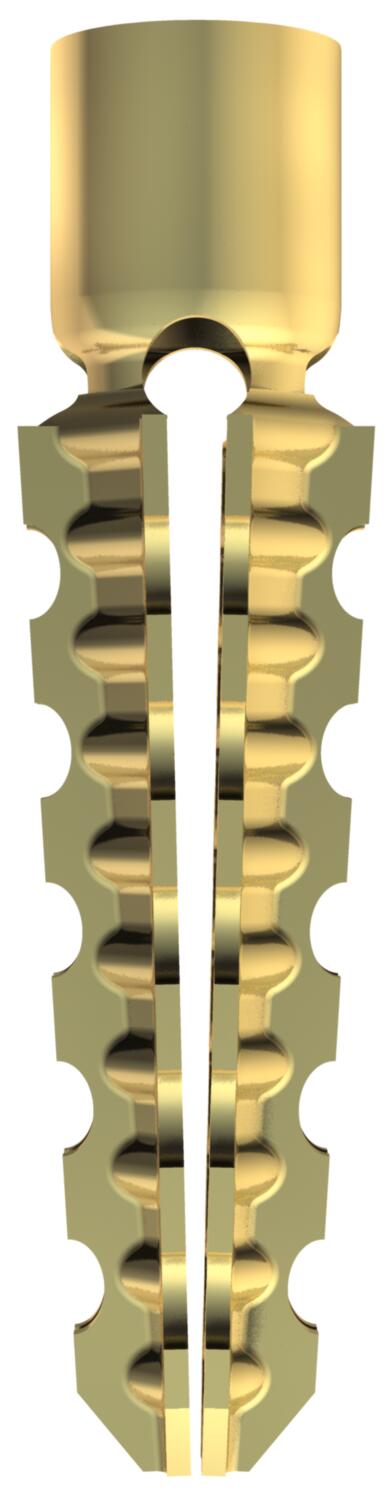

Metal spreading anchor
Item no. 3484602 | EAN 4012195683414
- Product description
-
Product descriptionAreas of application: gas concrete, lightweight concrete, Poroton, pumice, plaster, hollow brick and full brick. Can be knocked into porous concrete (gas concrete) of low resistance without drilling. Superbly suited for areas subjected to high temperatures.
-
- Technical data
-
Technical data
Diameter 5 mm Dimension 5x30mm Drill hole depth 35 mm Drill hole diameter, max. 7 mm Drill hole diameter, min. 5 mm Material Steel Suitable for fastening with cable ties no Suitable for hexagonal wood screw no Suitable for material Porous concrete, Gas concrete, Full brick, Hollow brick Surface Electrogalvanised, transparently-passivated Version for Spreading anchor With bolts no Wood screws 4-5 Dimensions

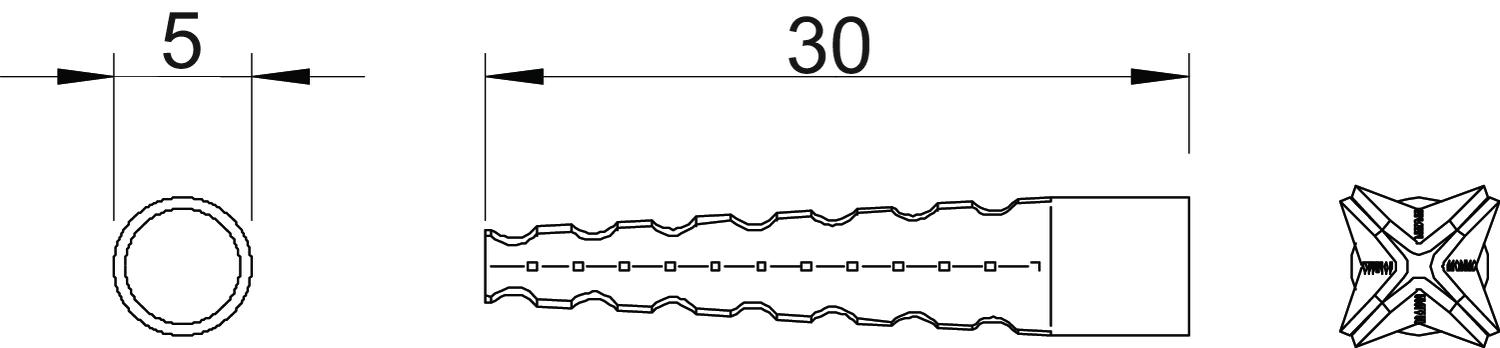

Dimension D 5 mm Dimension L 30 mm Length 30 mm - All types
- Downloads
-
Data sheet MD 5 GTP / 3484602 , 0.18MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity MD 5 GTP / 3484602 , 0.05MB , pdfREACH Declaration of conformity MD 5 GTP / 3484602 , 0.12MB , pdfRoHS Declaration of conformity MD 5 GTP / 3484602 , 0.13MB , pdf
