Mini trunking with adhesive film and hinge cover MD7 2000 | 12.5 | 7 | Cream; RAL 9001
morepic-1 morepic-2

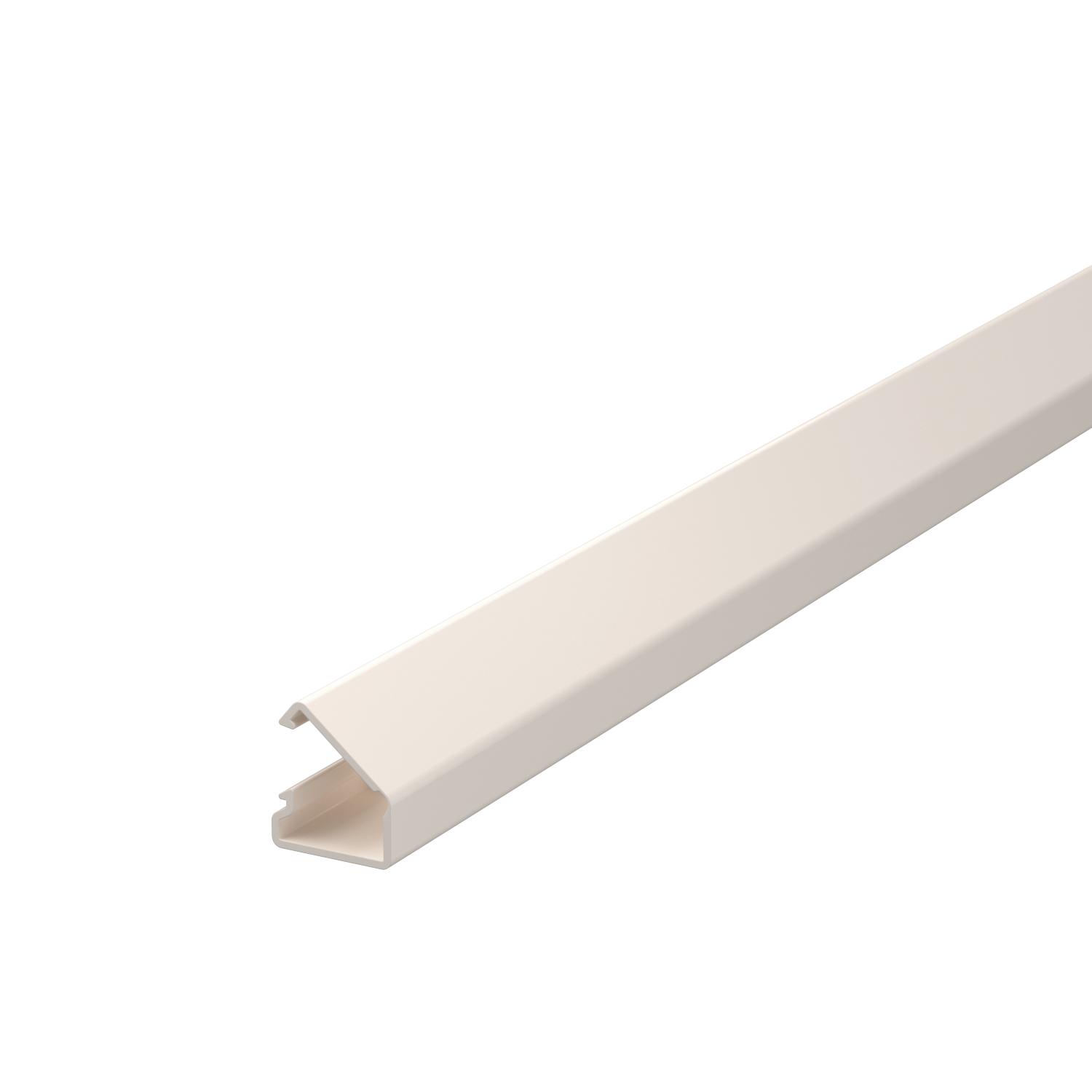

Mini trunking with adhesive film and hinge cover MD7

Item no. 6150160 | EAN 4012196097630

2000 mm
12.5 mm
7 mm
Product description
Product description
Mini trunking with adhesive film and hinge cover.
Pulling off the film on the base allows the WDK trunking to be stuck directly on the wall.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • WDK-MD mini trunking with hinged cover
Technical data

Technical data

Antibacterial treatment no
Cable retaining clip no
CO2 Footprint (GWP) Cradle-to-Gate 0,0811 kg CO₂e / 1 Meter
Colour Cream; RAL 9001
Delivery on a roll no
Dimension 7x12,5x2000
Duct connector no
Fastening type Self-adhesive
Halogen-free no
Height 7 mm
Length 2000 mm
Maintain electrical functions no
Material Polyvinylchloride
Protective film no
Usable cross-section 49 mm²
Version, cable trunking cover With film hinge
Width 12,5 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
WDKMD7CW 2000 mm 12.5 mm 7 mm Cream; RAL 9001 6150160
2 m
WDKMD7RW 2000 mm 12.5 mm 7 mm Pure white; RAL 9010 6150276
2 m
Downloads

Download
Download

Download

EU declaration of conformity WDKMD7CW / 6150160 , 0.10MB , pdf
Download
UK Declaration of Conformity WDKMD7CW / 6150160 , 0.09MB , pdf
Download

Download
Download

Download
Download

No invitation to tender text is available for this product.
