Mounting lid, UA connection sockets DUG UA340 9

Item no. / Types	7400552 / DUG UA340 9

Mounting opening	Round

Product description

Product description

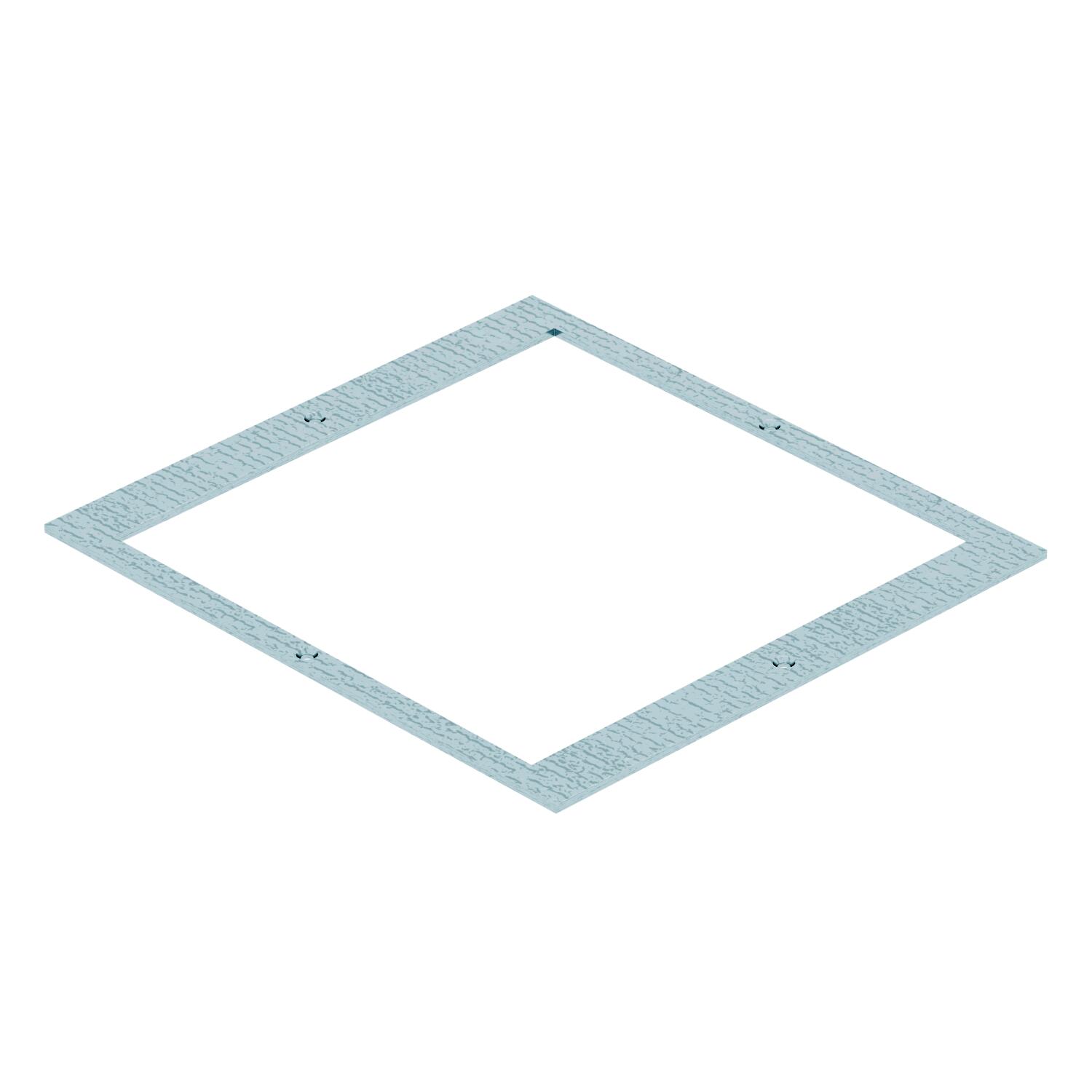

Mounting lid for the installation of an installation unit in the UA underfloor socket.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	7,1067 kg CO2e / 1 Piece

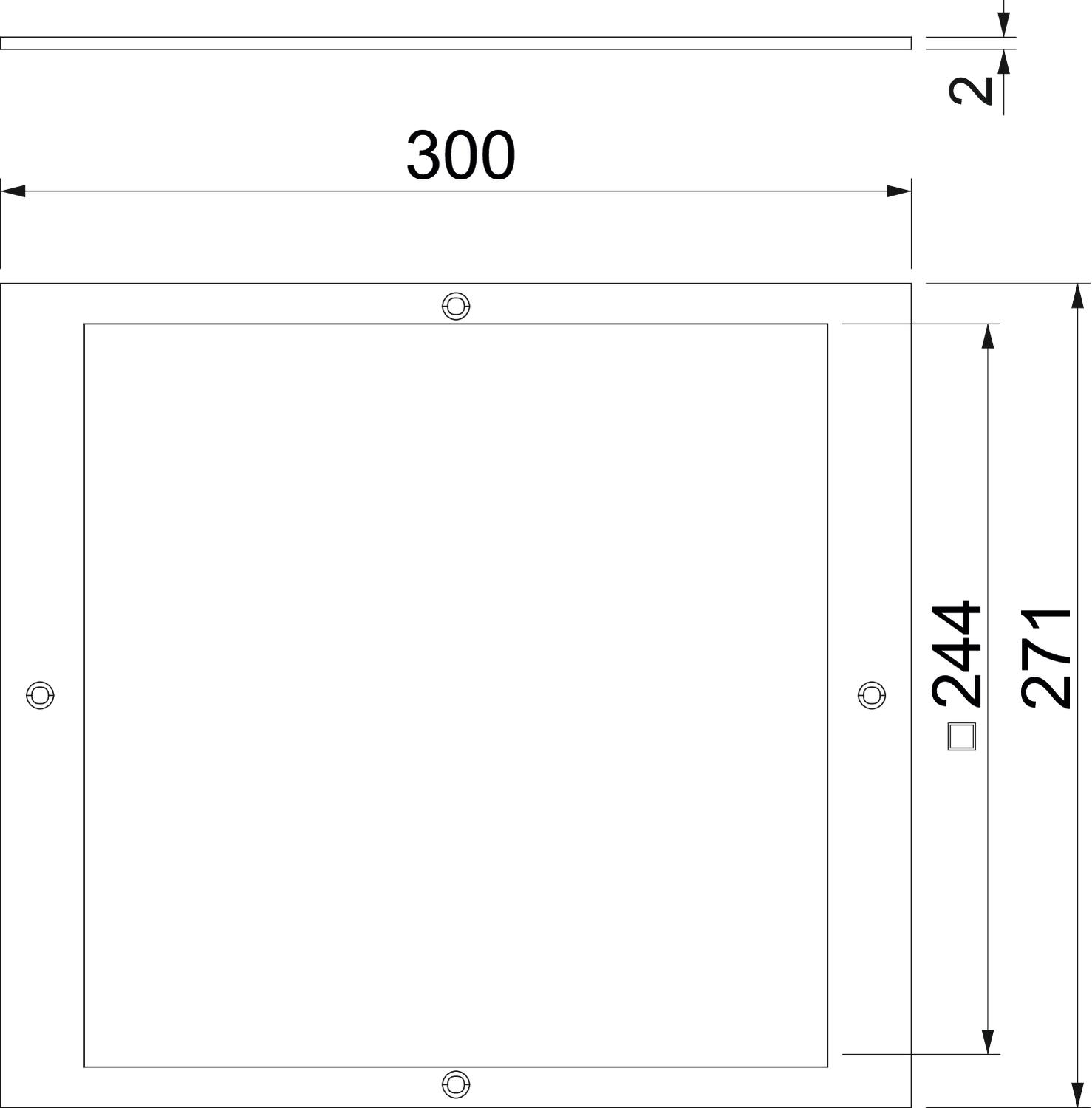

Dimension	299,5x299,5
Dimension a	244 mm
Length	300 mm
Material	Steel
Material thickness	4 mm

Mounting opening	Round
Nominal size	9 mm
Nominal size for device installation units	9
Surface	Strip galvanized
Width	271 mm

All types

All types

Types	Mounting opening	Item no.	Quantity	SSU
DUG UA340 9	Round	7400552	piece	1 piece

Downloads

Data sheet DUG UA340 9 / 7400552 , 0.16MB , pdf

Catalogue Underfloor systems , 2.10MB , pdf

EU declaration of conformity DUG UA340 9 / 7400552 , 0.10MB , pdf

Download

No invitation to tender text is available for this product.
