Mounting plate, 3-pole
Item no. 5096994 | EAN 4012195995043
- Product description
-

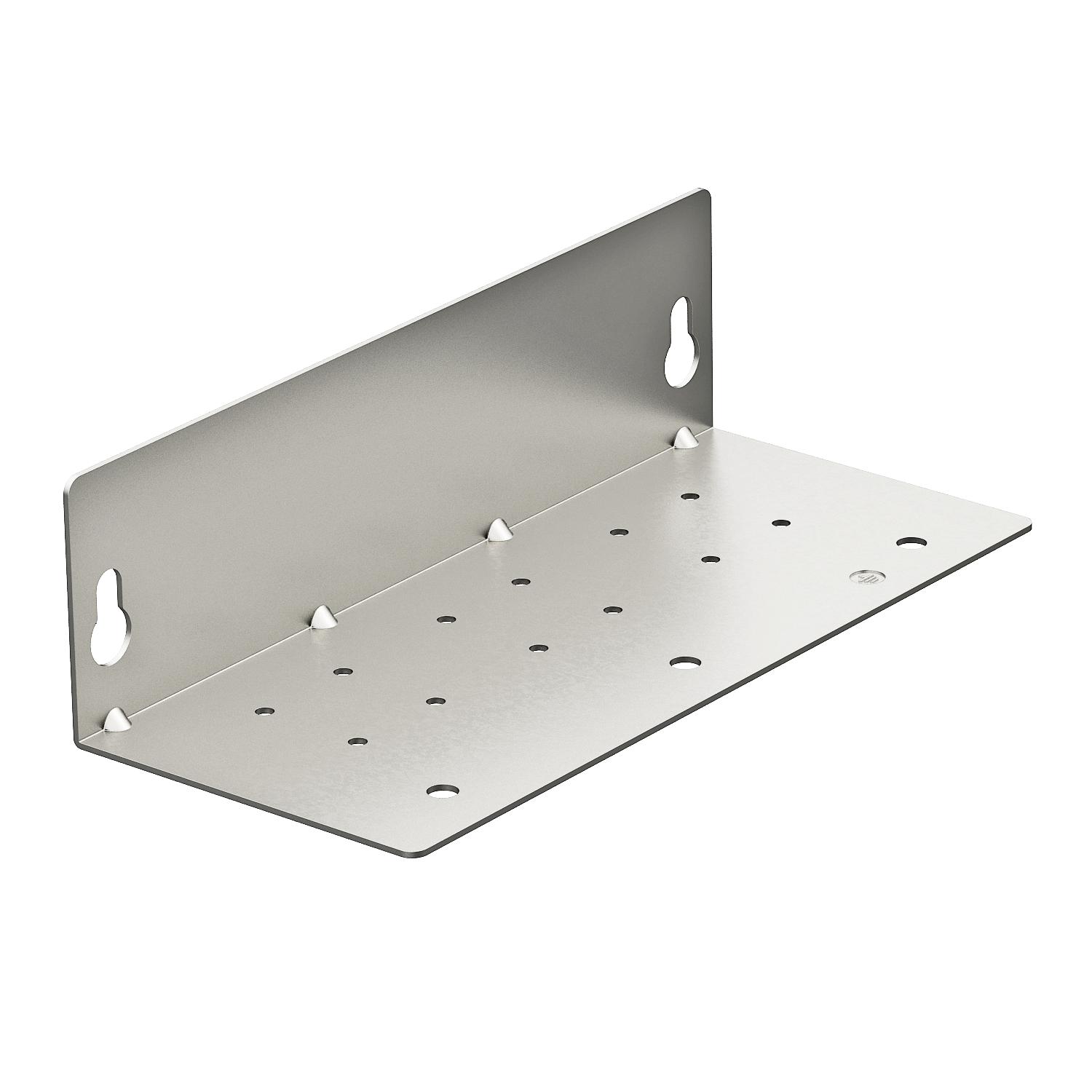

Product descriptionMounting plate 3-pole
• Mounting plate 3-pole for installation of the arrester MCF 35-1+FS-440
• Prefabricated hole pattern for mounting the arrester on busbars
• Suitable for wall mounting
• Required screws for installation enclosed
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,8583 kg CO2e / 1 Piece Dimension 3-polig Material Stainless steel Pole version 3 Protection rating IP20 Version for 3-pole - All types
- Downloads
-
Data sheet MCF-MS-P3 / 5096994 , 0.16MB , pdfLabel approval UL certificate MCF 35 , 0.37MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfInstallation instructions Mounting and installation instructions, MCF 35-1+FS-440, MCF-MS-P3 , 0.01MB , pdf
