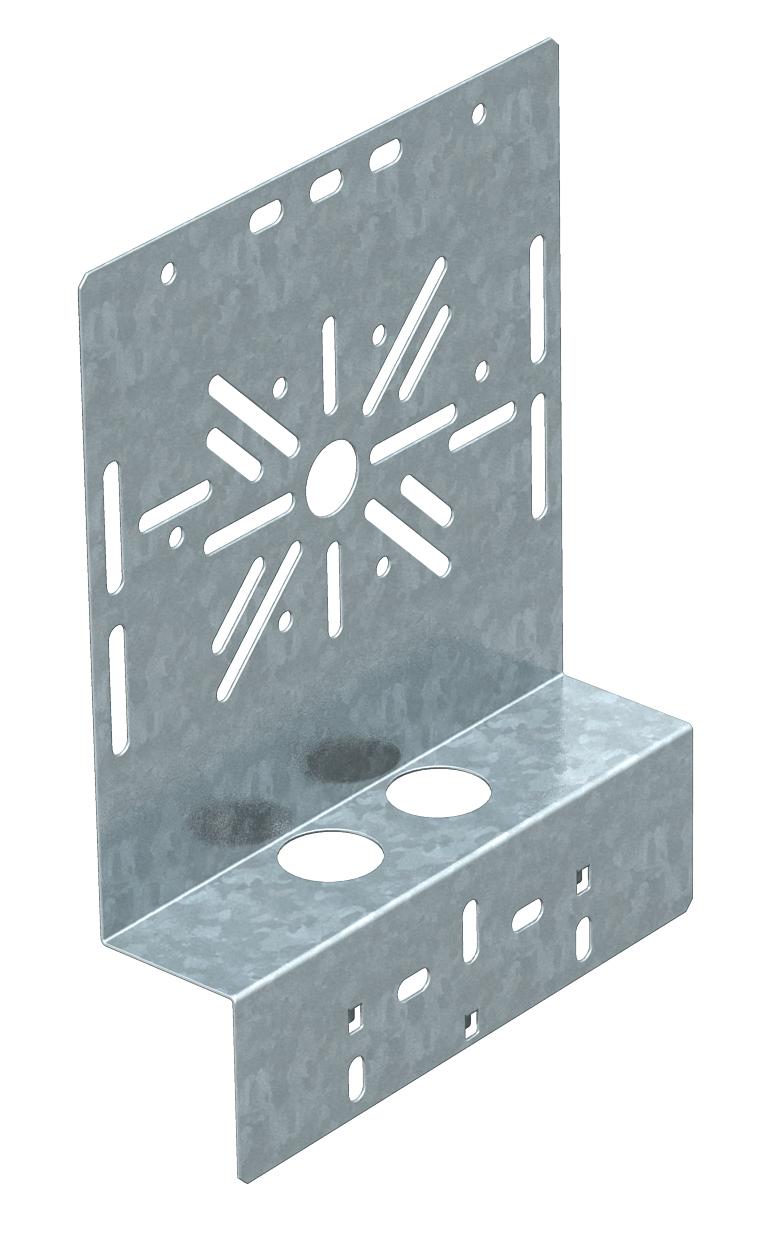

Mounting plate, angled FS
Item no. 7084781 | EAN 4012196146956
- Product description
-
Product descriptionAngled mounting plate, for fastening on the side rail of the cable tray.
Please order the truss-head bolt, type FRS B6 x 12, separately.
-
- Technical data
-
Technical data
Colour zinc Dimension 265x200 Fastening type Screw fastening Material Steel Plate thickness 1 mm ROHS-conformant yes Rustproof steel, pickled no Surface Strip galvanised Version for Vertical Dimensions
Height 240 mm Width 200 mm Width 7,87 in CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,2242 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,2242 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet MP WI GR. FS / 7084781 , 0.18MB , pdfEU declaration of conformity MP WI GR. FS / 7084781 , 0.11MB , pdfUK Declaration of Conformity MP WI GR. FS / 7084781 , 0.09MB , pdfREACH Declaration of conformity MP WI GR. FS / 7084781 , 0.12MB , pdfRoHS Declaration of conformity MP WI GR. FS / 7084781 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
