Mounting plate FS
Item no. 7084870 | EAN 4012195012245
- Product description
-

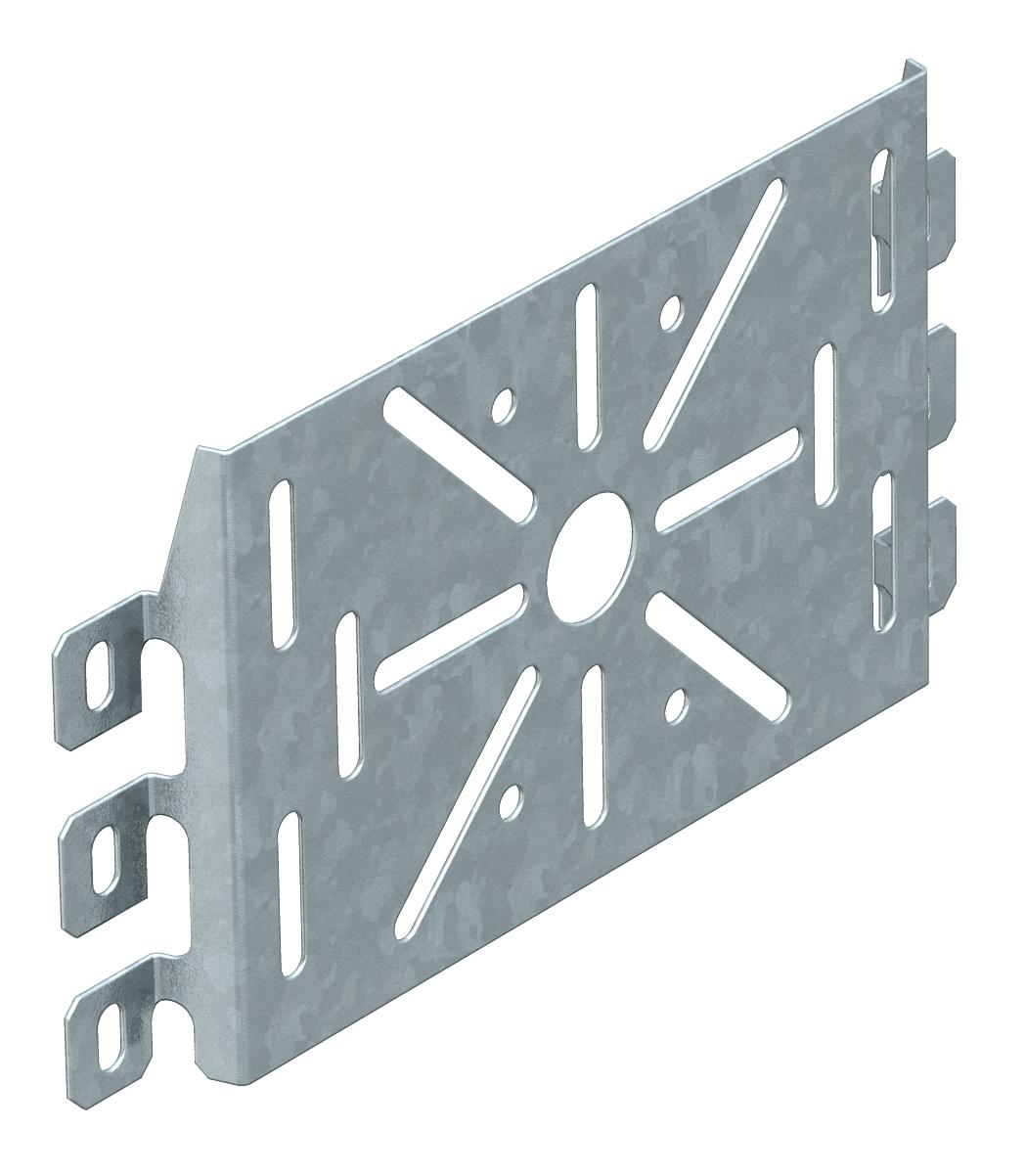

Product descriptionMounting plate for universal use on side rails of cable trays and mesh cable trays.
Please order the truss-head bolt, type FRSB 6 x 12, separately.
-
- Technical data
-
Technical data

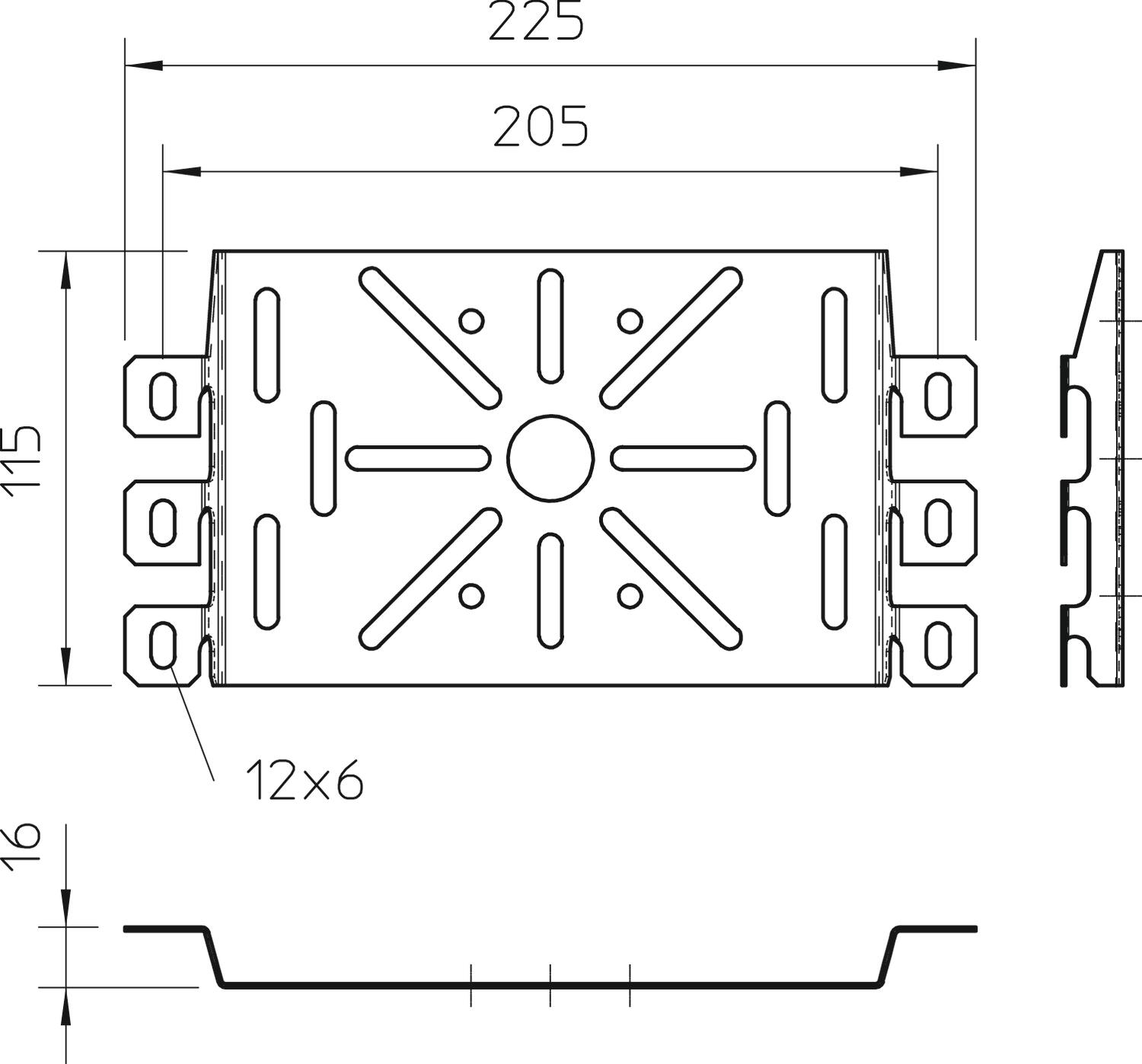

Colour zinc Dimension 225x115 Fastening type Screw fastening Material Steel Plate thickness 1 mm ROHS-conformant yes Rustproof steel, pickled no Surface Strip galvanised Version for Horizontal Dimensions
Height 115 mm Width 8,86 in Width 225 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,5329 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,5329 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet MP 225 UNI FS / 7084870 , 0.19MB , pdfEU declaration of conformity MP 225 UNI FS / 7084870 , 0.11MB , pdfUK Declaration of Conformity MP 225 UNI FS / 7084870 , 0.09MB , pdfREACH Declaration of conformity MP 225 UNI FS / 7084870 , 0.12MB , pdfRoHS Declaration of conformity MP 225 UNI FS / 7084870 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
