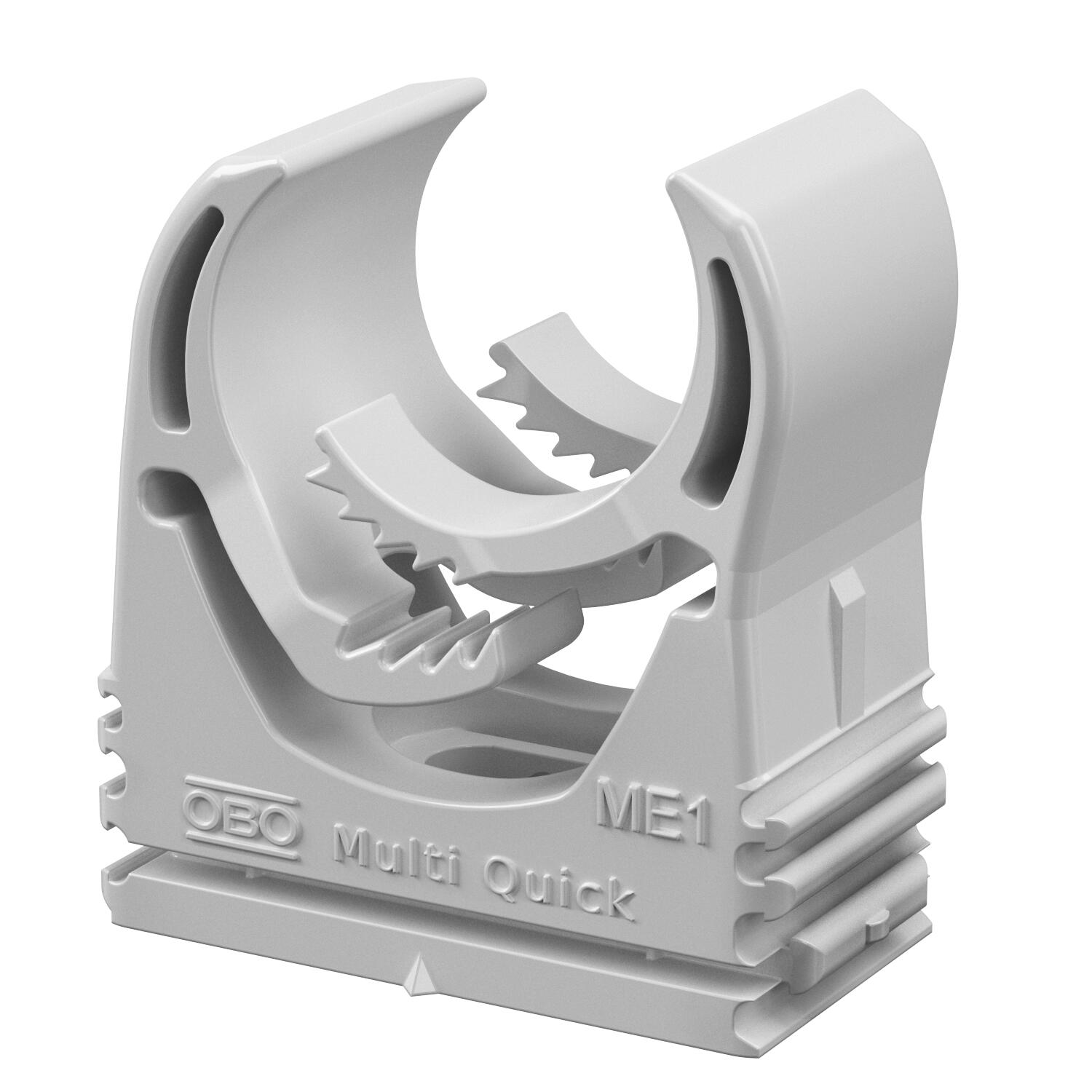

Multi-Quick clip, metric
Item no. 2153718 | EAN 4012195742395
- Product description
-
Product descriptionFlush-mounted clip to accept metric pipes and Quick-Pipe® electrical installation pipes. Flexible clamping range of several millimetres. Universal fastening options on walls and ceilings, both indoors and outdoors. Toolless pipe mounting. Can also be arranged with OBO Quick or proQuick clip.
-
- Technical data
-
Technical data
Clamping range D, max. 20 mm Clamping range D, min. 16 mm Closed no Colour Light grey; RAL 7035 Dimension 16-20mm Expandable yes Fastening type Screw hole Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Halogen-free yes Material Polyamide Number of cables/pipes 1 Pull-out value 40 N UV-resistant no With inlay no Dimensions

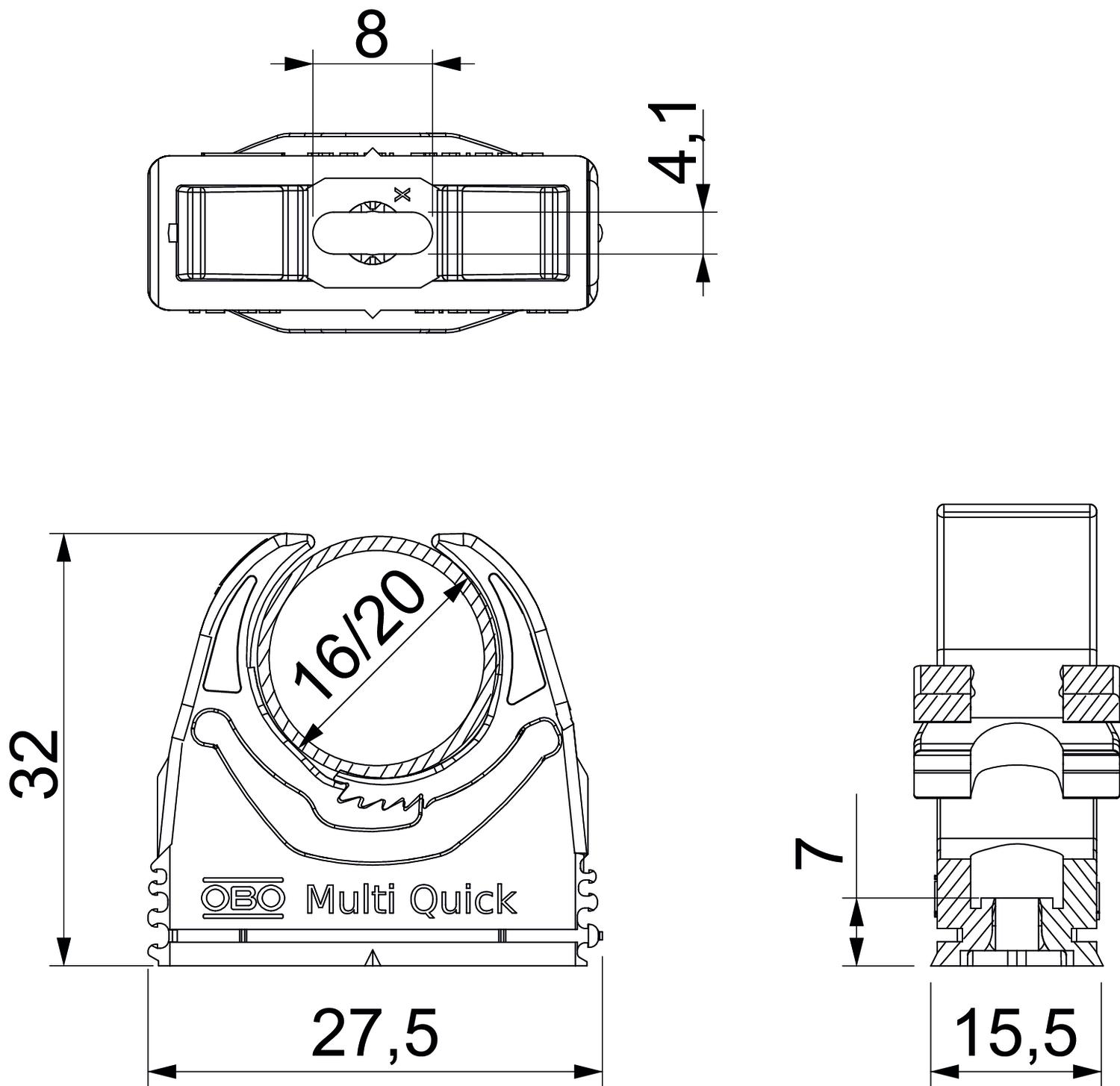

Dimension A 27,5 mm Dimension B 15,5 mm Dimension E 8 mm Dimension F 4,1 mm Dimension H 32 mm Dimension h 7 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0256 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0256 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-09-26T00:00:00.000+0200 - All types
