Partition, halogen-free, for trunking height 60 mm 2000
morepic-1 morepic-2

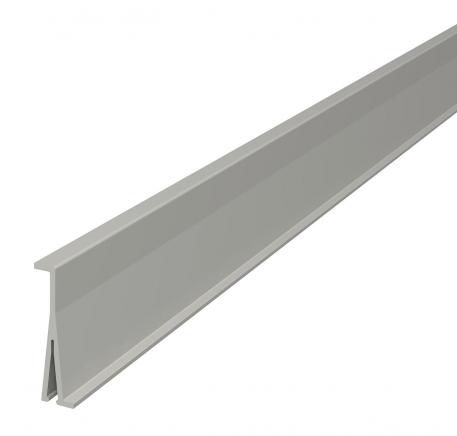

Partition, halogen-free, for trunking height 60 mm

Item no. 6175504 | EAN 4012195812524

6175504 / WDKH-TW60LGR
2000 mm
Product description
Product description
Partition to divide the WDKH trunking of 60 mm trunking height for the installation of different voltage levels.
The partitions are pinned on the connectors in the base.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 15x50x2000
Fastening type Lockable
Halogen-free yes
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Self-extinguishing yes
Version for Single

Dimensions

Dimension a 2000 mm
Height 48,5 mm
Length 2000 mm
Width 12,6 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 1,195 kg CO2e / 1 Meter
CO₂ Footprint (GWP) 1,195 kg CO₂e
Declared Unit (LCA) Metres
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Length Item no. Quantity SSU
WDKH-TW60LGR 2000 mm 6175504
2 m
Downloads

Download

Download

EU declaration of conformity WDKH-TW60LGR / 6175504 , 0.10MB , pdf
Download
UK Declaration of Conformity WDKH-TW60LGR / 6175504 , 0.09MB , pdf
Download
REACH Declaration of conformity WDKH-TW60LGR / 6175504 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDKH-TW60LGR / 6175504 , 0.12MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
