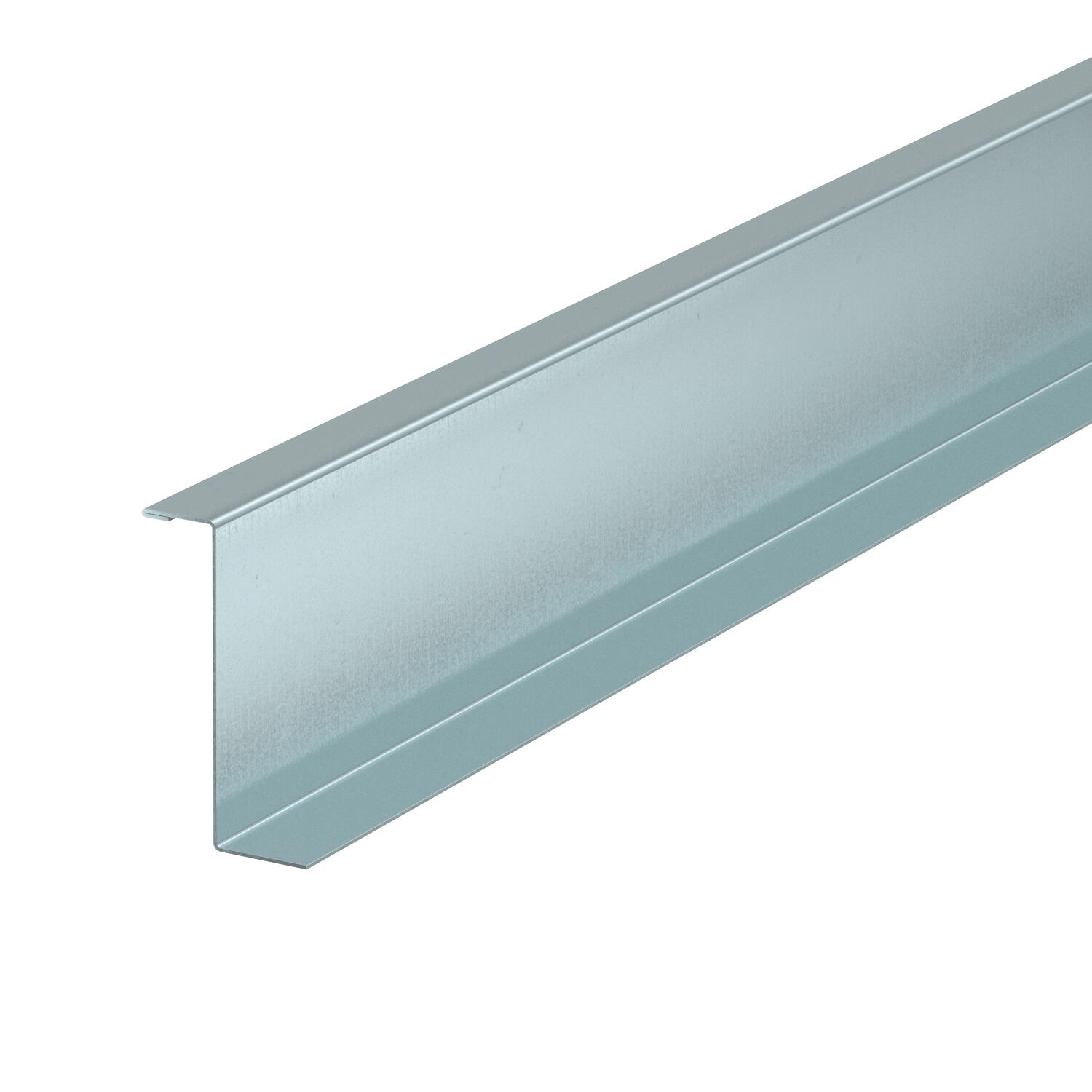

Partition LKM TWS75
Item no. 6249880 | EAN 4012195762898
- Product description
-
Product descriptionPartition to divide the LKM cable routing trunking, 80 mm trunking height, for different voltage levels.
The loop perforation in the base transfers the equipotential bonding to the partition.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour zinc Dimension 75x2000mm Fastening type Plug-in Halogen-free yes Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Self-extinguishing no Surface Strip galvanised Trunking depth 80 mm Version for Single Dimensions
Dimension a 60 mm Height 60 mm Length 2000 mm Width 33 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,4111 kg CO2e / 1 Meter CO₂ Footprint (GWP) 1,4111 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet LKM TWS75 / 6249880 , 0.19MB , pdfEU declaration of conformity LKM TWS75 / 6249880 , 0.11MB , pdfUK Declaration of Conformity LKM TWS75 / 6249880 , 0.09MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
