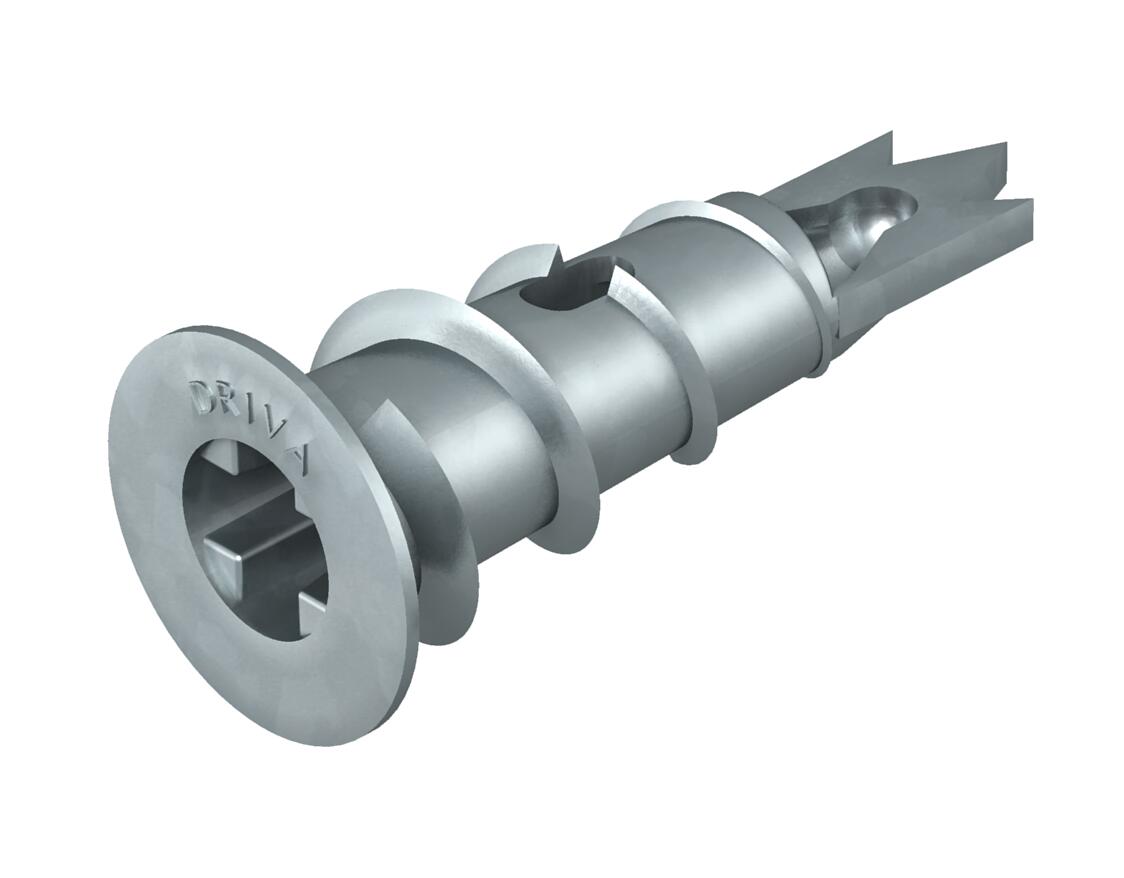

Plasterboard anchor
Item no. 3483214 | EAN 4012195418191
- Product description
-
Product descriptionTo fasten components to plasterboard or fibre composite plates.
Minimum plate thickness: 12 mm.
For Ø 4.5 Golden Sprint or Sprint screws.
-
- Technical data
-
Technical data
Diameter 12 mm Dimension Ø12x30 Material Die-cast zinc Permitted load range, tension zone 0,04 Version for Plasterboard anchor With bolts no With thread yes Dimensions

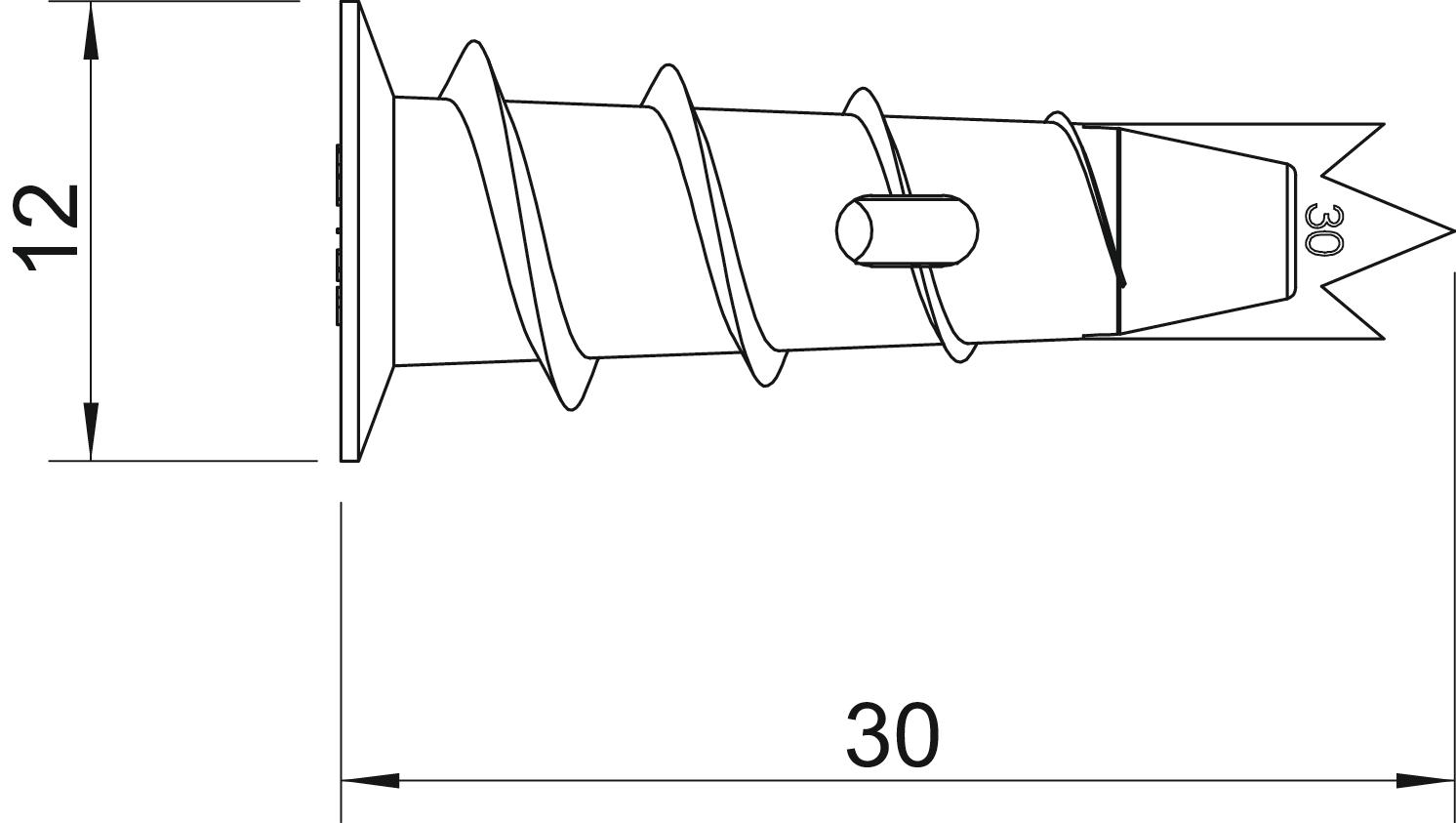

Dimension D 12 mm Dimension L 30 mm Length 30 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0196 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0196 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 910 GKDM 12x30 / 3483214 , 0.15MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity 910 GKDM 12x30 / 3483214 , 0.12MB , pdfRoHS Declaration of conformity 910 GKDM 12x30 / 3483214 , 0.13MB , pdf
