Note: This article is discontinued.
You can find the current article here: 5096987 / LightningController Compact - MCF100
Protection Set PS4-B+C FS
Item no. 5089611 | EAN 4012195572237
- Product description
-

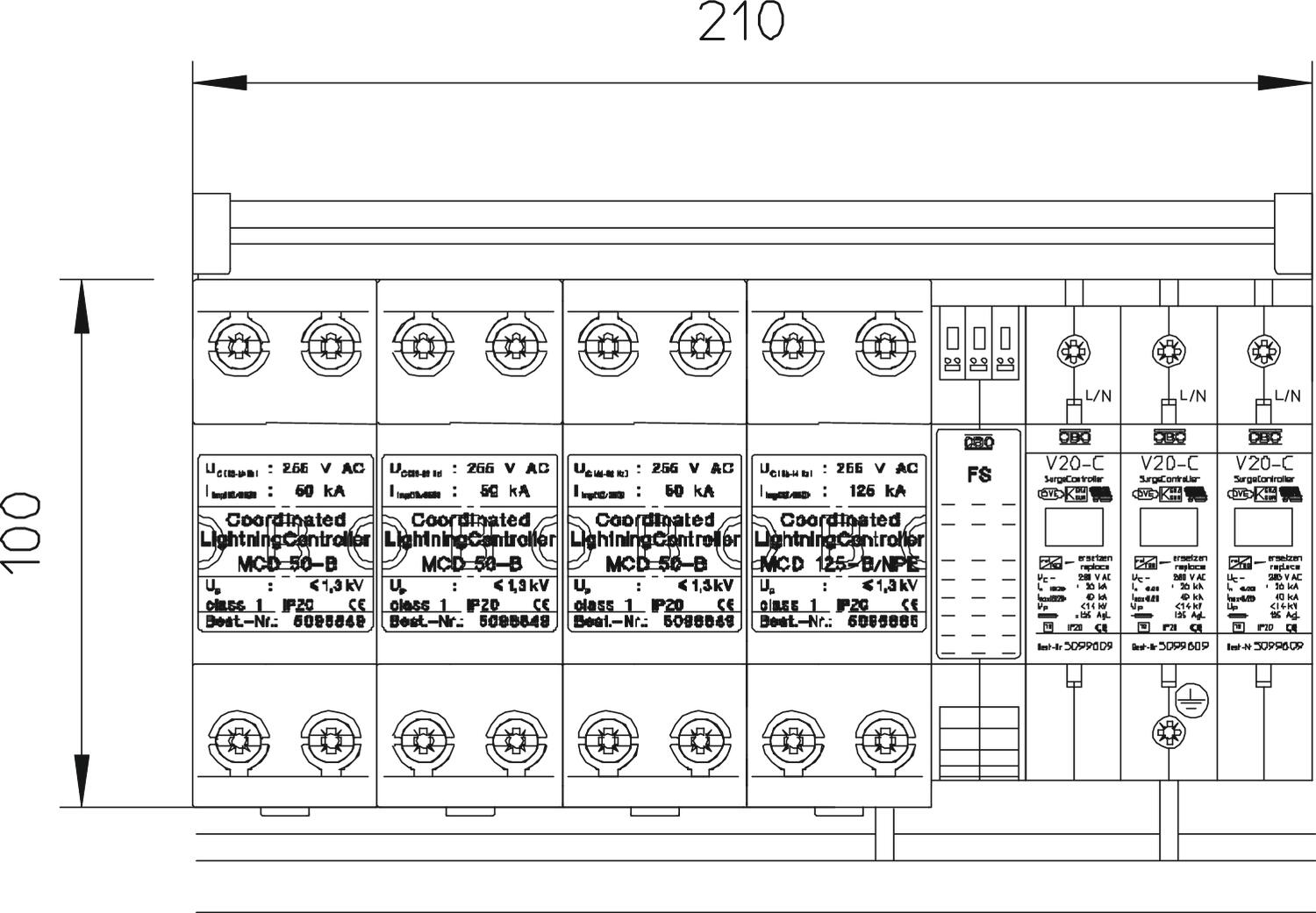

Product descriptionProtection set with remote signalling, lightning and surge arrester type 1+2
• Arresting capacity 100 kA 10/350 µs, BET tested
• Pre-mounted and ready for connection, incl. connecting bridges, labelled connection terminals
• With remote signalling and potential-free changeover contact for function monitoring
• For use in TN-S and TT network systems
Note: Max. backup fuse (required only if not already fitted in network) 125 A gL/gG
- Technical data
-
Technical data
Dimension 255V Follow current quenching capacity (eff) [N-PE] 25 kA Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 50 kA Lightning surge current (10/350) 100 kA Max. mains-side overcurrent protection 125 Maximum back-up fuse 125 A Maximum continuous voltage (L-N) 255 V Maximum continuous voltage (N-PE) 255 V Maximum continuous voltage AC 255 V Maximum discharge current (8/20 μs) 100 kA Nominal discharge current (8/20 µs) 100 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Pole version 3+N/PE Protection rating IP20 Remote signalling yes Response time <25 ns Short-circuit resistance 25 kA Short-circuit resistance for max. mains-side overcurrent protection 25 kA Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-11 Class I+II Version for 3+1-pole with FS; 255 V Connectivity options
Arrester surge current (8/20 µs) [total] 100 kA Conductor cross-section, rigid (single-wire/multiwire), max. 50 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 10 mm² CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 8,3453 kg CO₂e / 1 Piece CO₂ Footprint (GWP) 8,3453 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-04-02T00:00:00.000+0200 - All types
- Downloads
-
Data sheet PS4-B+C FS / 5089611 , 0.25MB , pdfREACH Declaration of conformity PS4-B+C FS / 5089611 , 0.12MB , pdfRoHS Declaration of conformity PS4-B+C FS / 5089611 , 0.13MB , pdfNo invitation to tender text is available for this product.
