Screw-in spacer clip, heavy-duty version M6
Item no. 1385119 | EAN 4012195123194
- Product description
-
Product descriptionCan be screwed onto M6 thread. Size 27 FT is suitable for M25. Size 42.5 FT is suitable for M40. Size 48.5 FT is suitable for M50. Size 60 FT is suitable for M63.
-
- Technical data
-
Technical data
Bolt M6 x 18 Clamping range D, max. 48,5 mm Clamping range D, min. 45,5 mm Dimension 1 1/2" Fastening type Screw hole For diameter 48,5 for pipe diameter M50 Halogen-free no Hole size M6 Material Steel Material thickness 2,5 mm Plastic-covered no Size 1 1/2" Suitable in fire protection area no Surface Hot-dip galvanised Thread M6 UV-resistant yes Version for Closed Dimensions

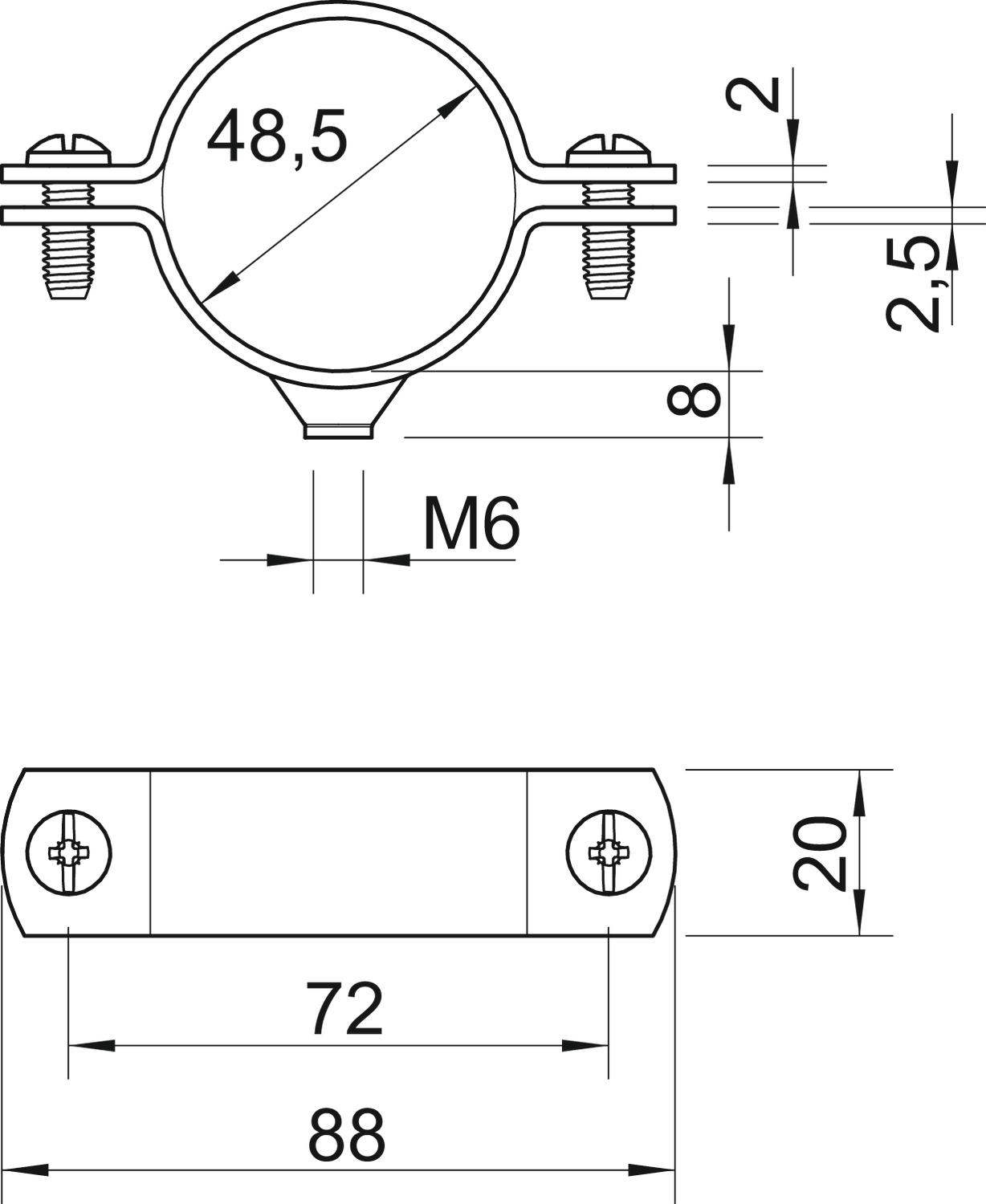

Dimension A 88 mm Dimension B 72 mm Dimension D 48,5 mm Dimension d min. 48,5 mm Dimension t 2,5 mm Dimension t1 (mm) 2 mm Dimension x 3 mm Length 88 mm Width 20 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,2043 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,2043 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
All types
- Downloads
-
Data sheet 2900WM6 48.5 FT / 1385119 , 0.23MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2900WM6 48.5 FT / 1385119 , 0.11MB , pdfUK Declaration of Conformity 2900WM6 48.5 FT / 1385119 , 0.10MB , pdfREACH Declaration of conformity 2900WM6 48.5 FT / 1385119 , 0.12MB , pdfRoHS Declaration of conformity 2900WM6 48.5 FT / 1385119 , 0.13MB , pdf
