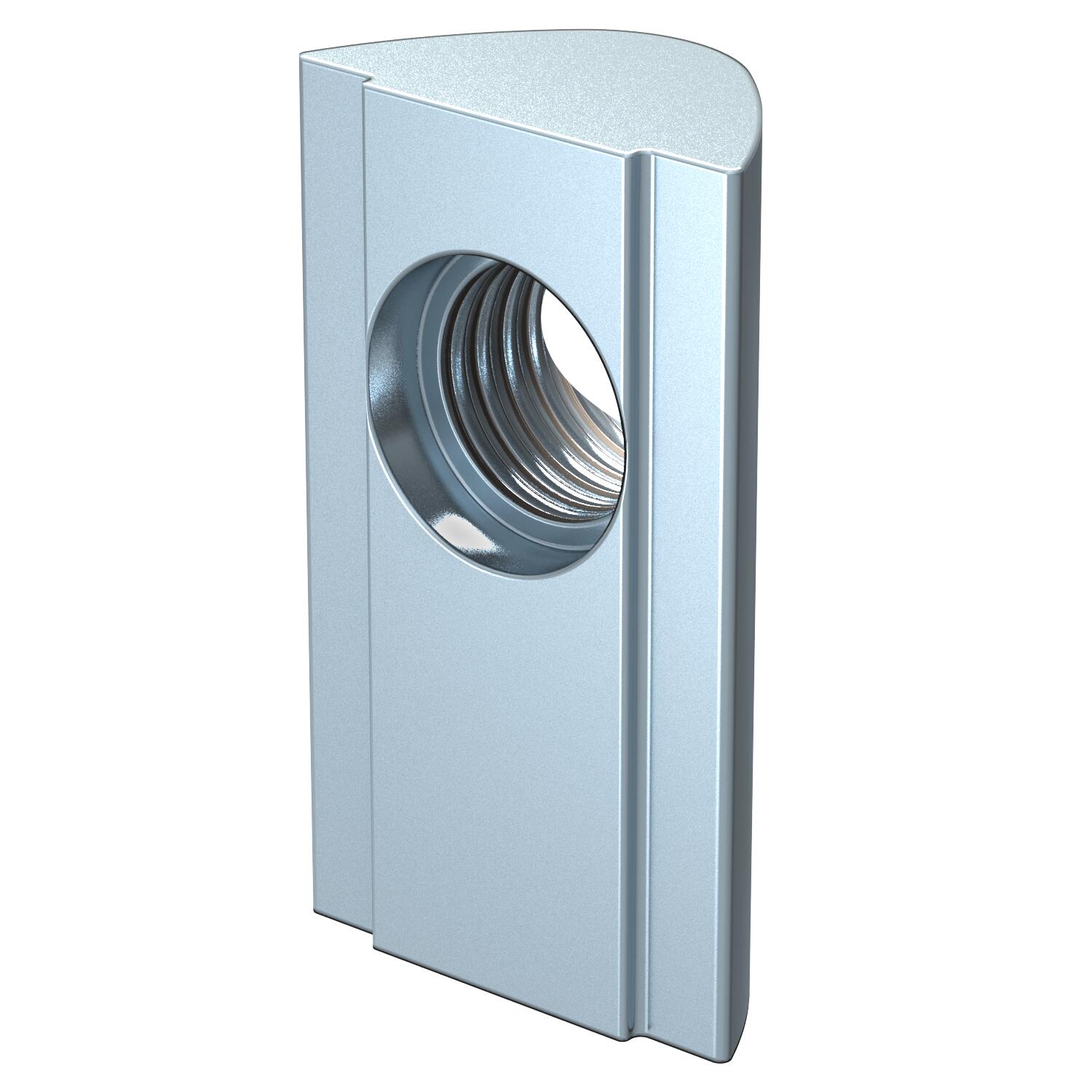

Slot nut for industrial pole
Item no. 6290499 | EAN 4012196191550
- Product description
-
Product descriptionSliding block with M8 thread for mounting extensions and accessories to the ISS industrial service pole profile. Through a pressure piece on the bottom side, the sliding block can hold itself by being swivelled into the groove. Automatic anti-rotation lock through profiled upper side.
-
- Technical data
-
Technical data
Colour zinc Dimension 23x13,3x7,5 Halogen-free yes Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Surface galvanised Type of accessory Sliding block Dimensions

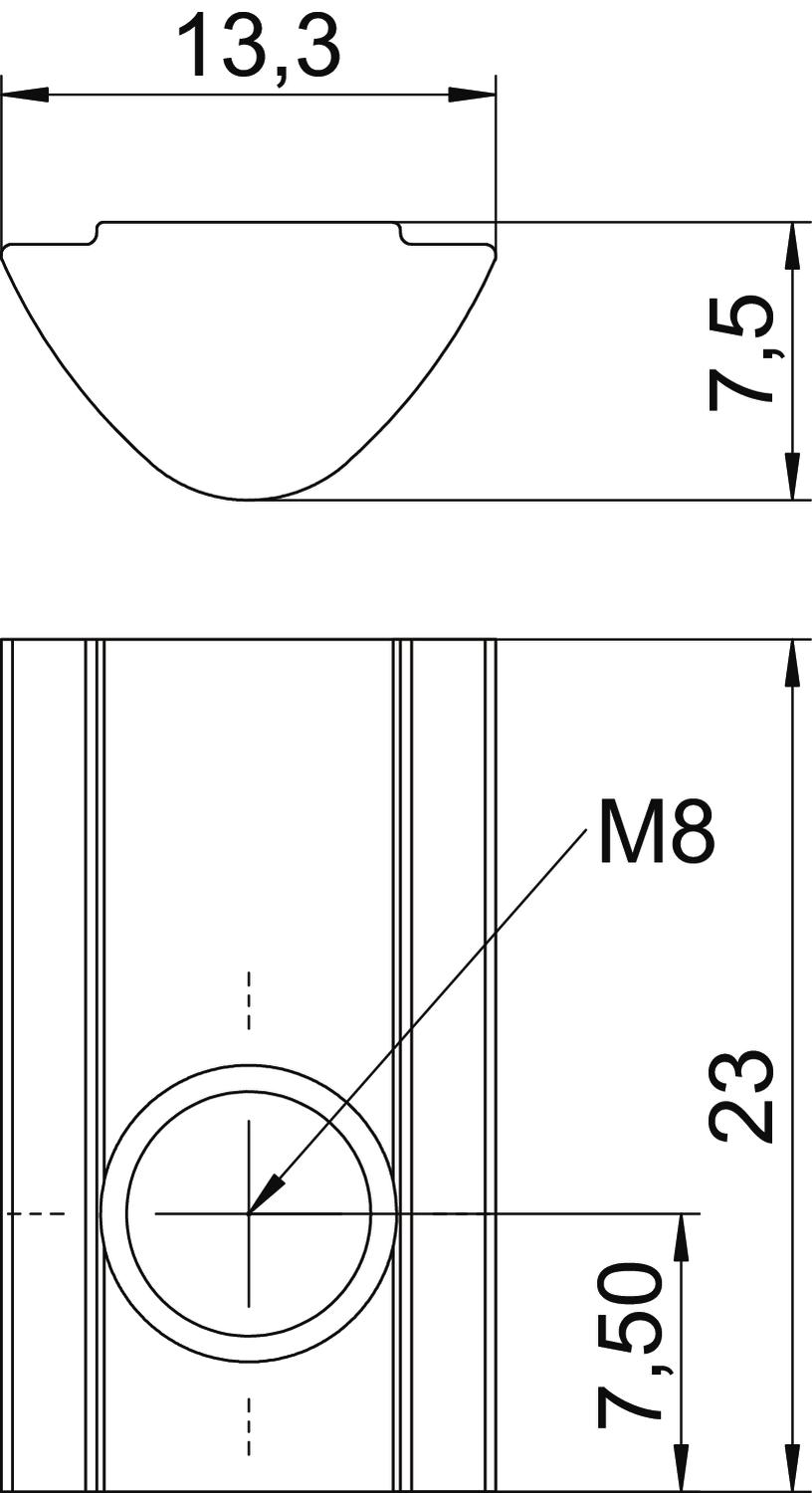

Height 7,5 mm Length 23 mm Width 13,3 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,033 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,033 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet NS8 ST / 6290499 , 0.18MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity NS8 ST / 6290499 , 0.10MB , pdfUK Declaration of Conformity NS8 ST / 6290499 , 0.09MB , pdfLabel approval VDE symbol approval, service pole systems , 0.22MB , pdfMounting instructions Mounting instructions, ISS160160 bracket for ISS-I , 4.01MB , pdfMounting instructions Mounting instructions, ISS-I , 4.01MB , pdf
