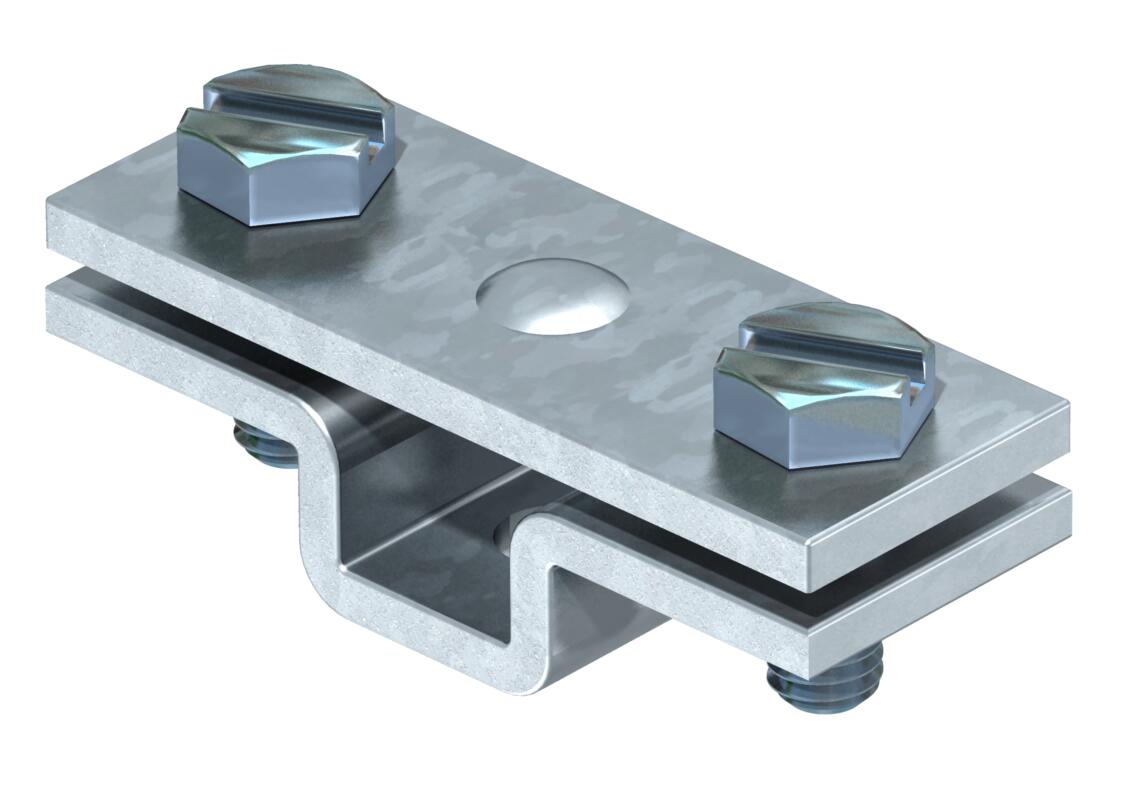

Spacer for flat conductor with fastening hole Ø 7
Item no. 5032539 | EAN 4012195384137
- Product description
-
Product description• Fit: FL 30 and FL 40

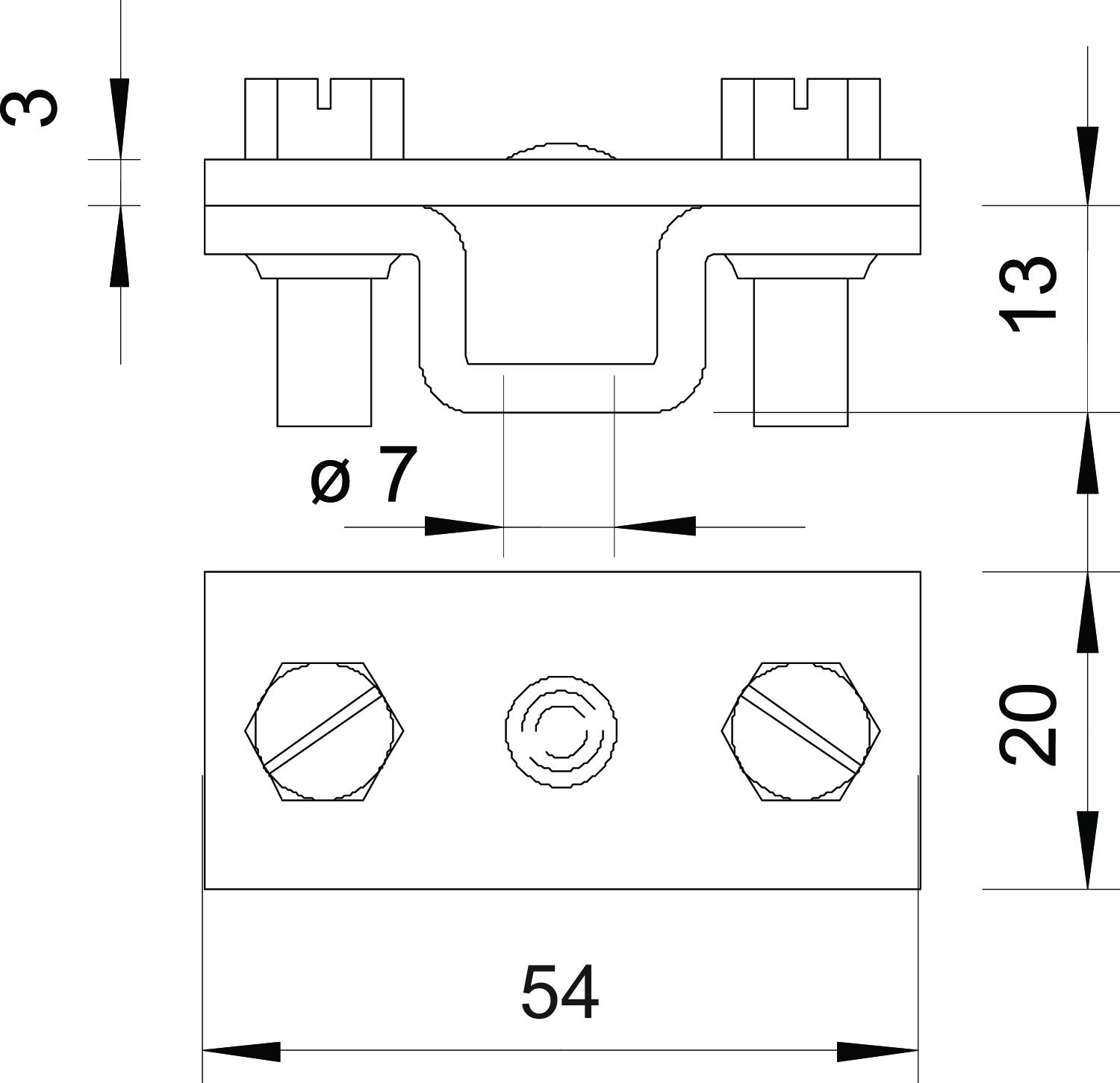

• With mounting hole Ø 7 mm and 2 hexagonal bolts M6 x 16
-
- Technical data
-
Technical data
Dimension 30mm Fit max. FL30 mm Intermediate plate no Material Steel Surface Hot-dip galvanised Dimensions
Dimension B 55 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1834 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1834 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 832 30 / 5032539 , 0.16MB , pdfEU declaration of conformity 832 30 / 5032539 , 0.06MB , pdfREACH Declaration of conformity 832 30 / 5032539 , 0.12MB , pdfRoHS Declaration of conformity 832 30 / 5032539 , 0.12MB , pdf
