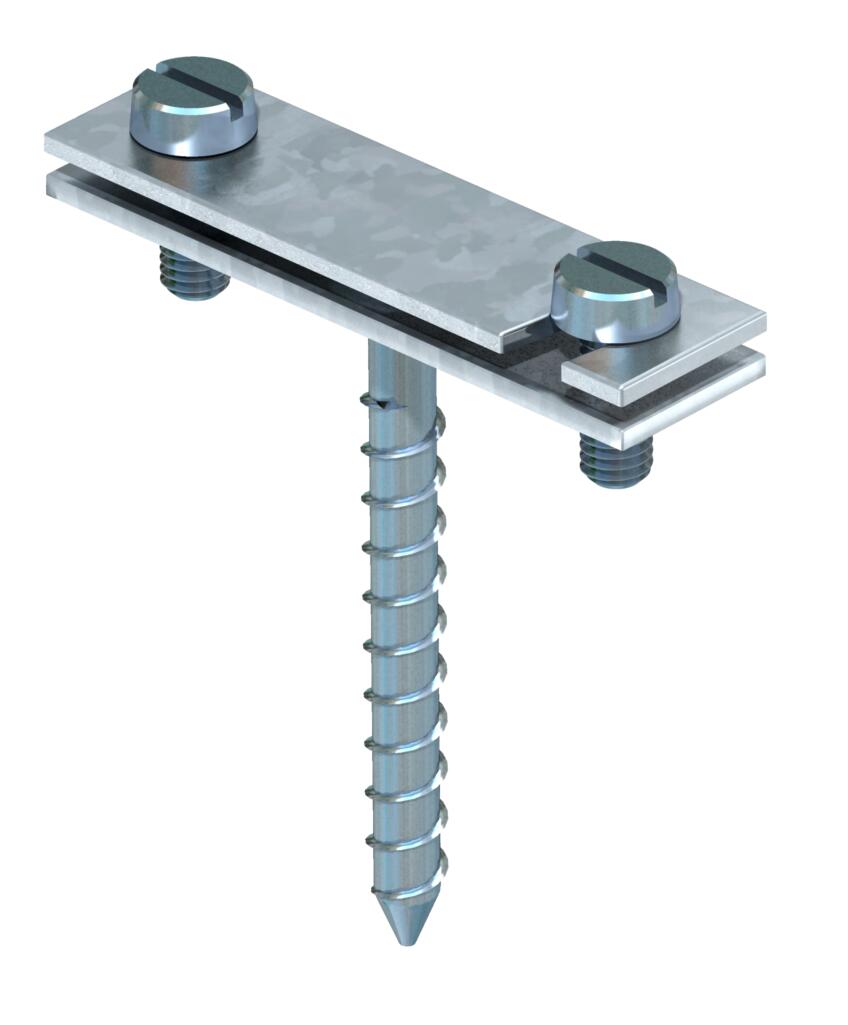

Spacer for flat conductor, with wood screw
Item no. 5030234 | EAN 4012195383659
- Product description
-
Product description• Fit: FL 30 and FL 40
• With 2 cylinder bolts M5 x 12 (G) and over-piece
• With wood screw
-
- Technical data
-
Technical data

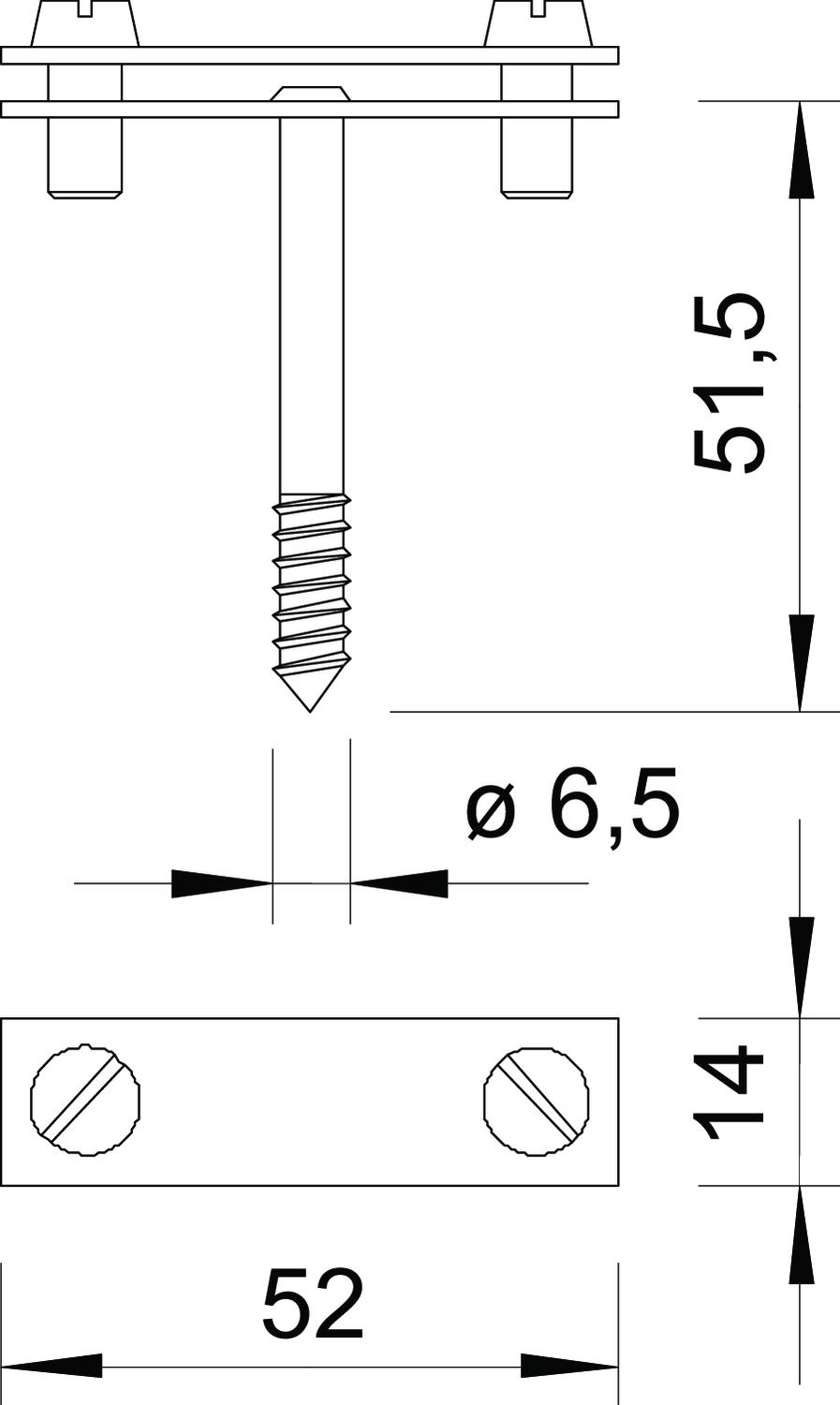

Dimension 30mm Fit max. FL30 mm Intermediate plate no Material Steel Surface Electrogalvanised Dimensions
Dimension B 52 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0609 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0609 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 708 30 HG / 5030234 , 0.15MB , pdfEU declaration of conformity 708 30 HG / 5030234 , 0.06MB , pdfREACH Declaration of conformity 708 30 HG / 5030234 , 0.12MB , pdfRoHS Declaration of conformity 708 30 HG / 5030234 , 0.13MB , pdf
