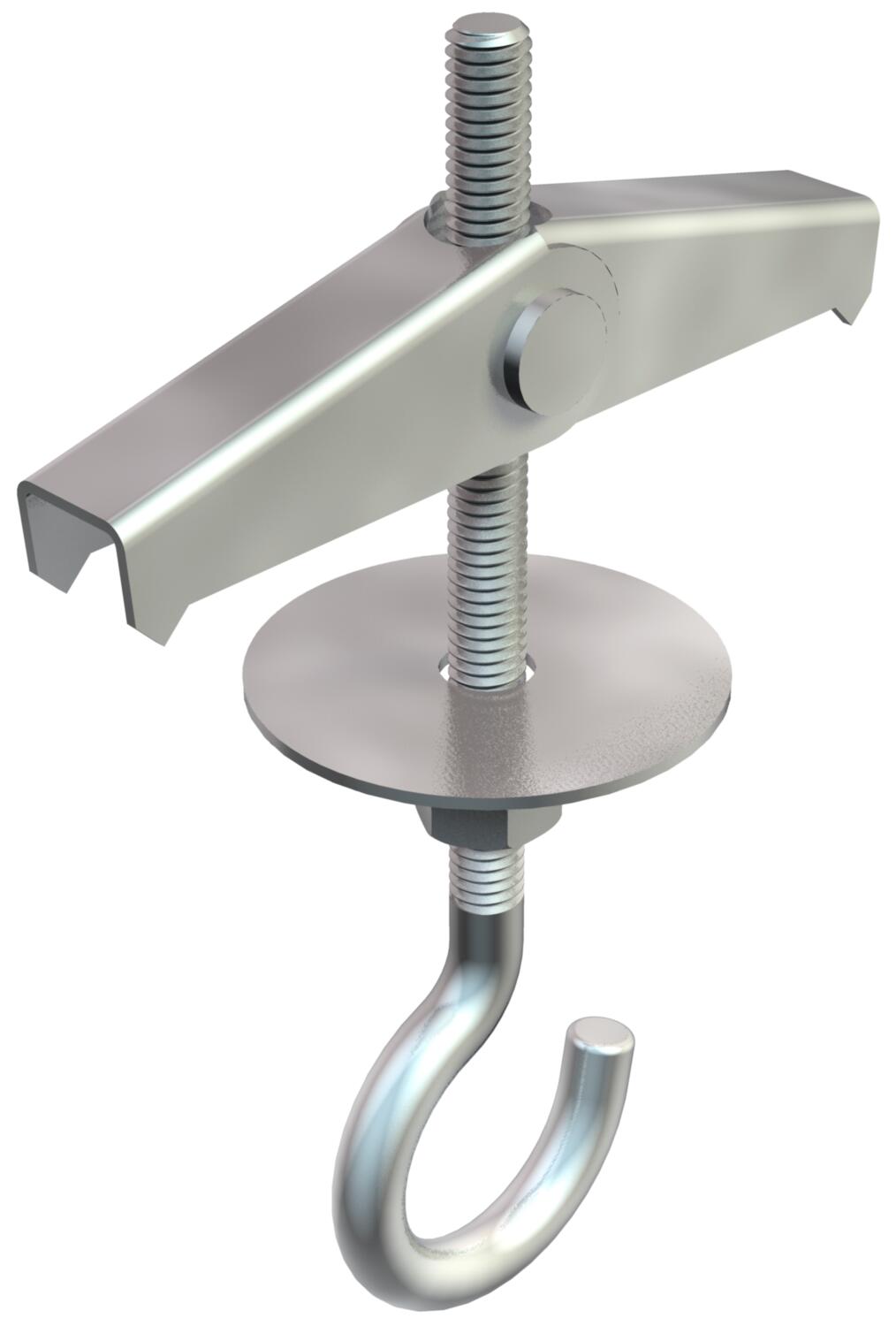

Sprung hinged anchor
Item no. 3481778 | EAN 4012195432975
- Product description
-
Product descriptionWith threaded rod, washer and hexagonal nut, steel axle.
-
- Technical data
-
Technical data

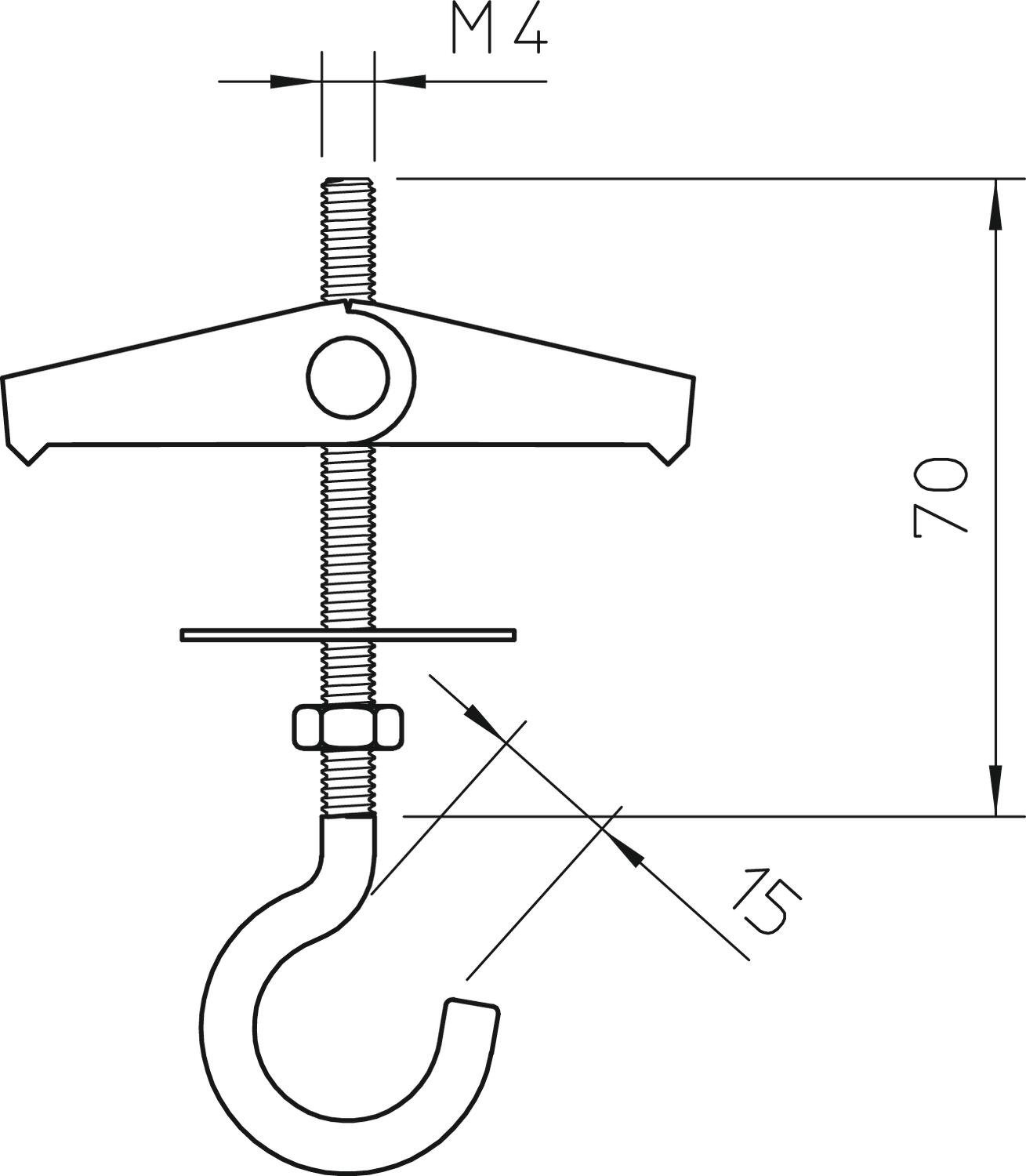

Breaking load 0,4 kN Dimension M4x70mm Drill hole 14 mm Drill hole diameter, min. 14 mm Material Steel Minimum cavity depth 35 mm Product series Anchors ROHS-conformant yes Surface Electrogalvanised Thread M4 Thread type Metric Version for With ceiling hook With washer yes Dimensions
Length 70 mm - All types
- Downloads
-
Data sheet 452 M4x70 G / 3481778 , 0.17MB , pdfCatalogue Fastening materials , 19.78MB , pdf
