Note: This article is discontinued.

Support

Item no. 7216315 | EAN 4012195917250

Item no. / Types

Length

Width	67 mm

Colour	zinc

Product description

Product description

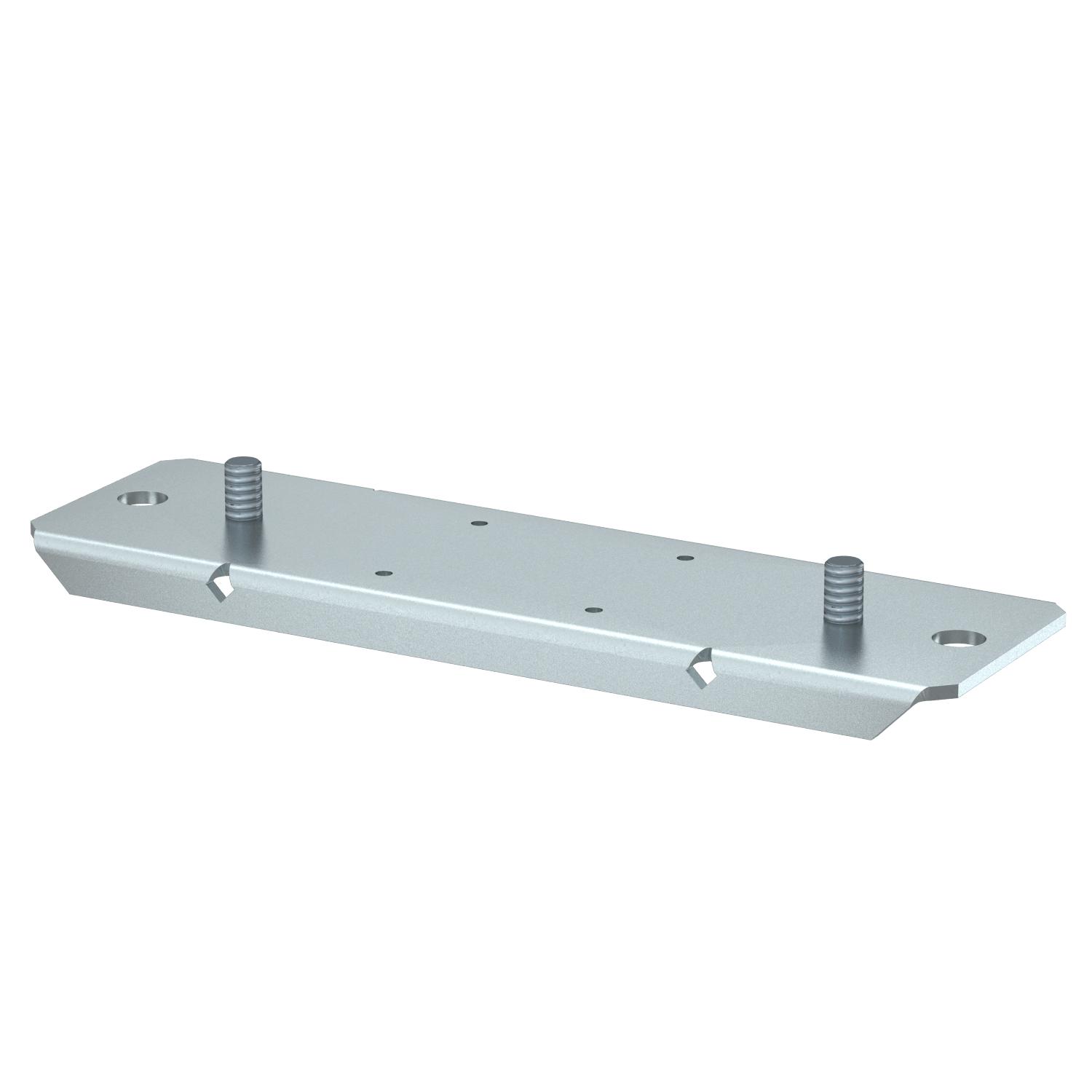

Support profile for suspended mounting of BSKM 0711, suitable as a suspension point to accept two M10 threaded rods and as the counter bearing to seal the joint, including nuts.

Technical data

Technical data

Accessories	yes
Colour	zinc

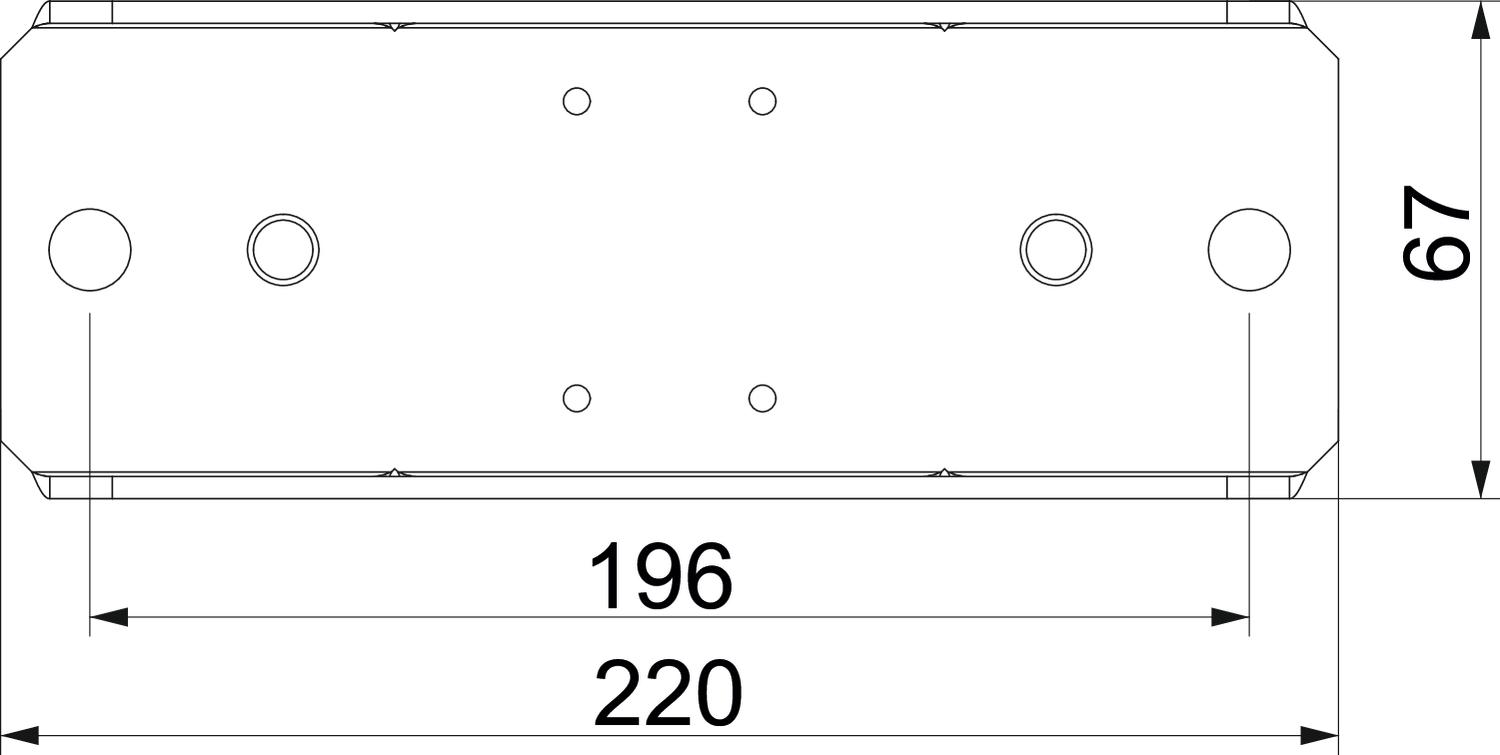

Dimension	70x110
Dimension A	67 mm
Dimension d	196 mm
Dimension t	220 mm
Fire resistance class I − installation duct	120

Length	220 mm
Material	Steel
Spare part	no
Surface	Strip galvanized
Type of accessory	Threaded rod adapter
Width	67 mm

All types

All types

Types	Length	Width	Colour	Item no.	Quantity	SSU
BSKM-AD 0711 FS	220 mm	67 mm	zinc	7216315	piece	1 piece
BSKM-AD 1025 FS	360 mm	67 mm	zinc	7216415	piece	1 piece

Downloads

Data sheet BSKM-AD 0711 FS / 7216315 , 0.15MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Download

Brochure False ceiling installations , 2.70MB , pdf

Download

Flyer Labelling plate PYROLINE Rapid , 2.00MB , pdf

Flyer PYROLINE Rapid BSKM RW , 2.00MB , pdf

Download

Catalogue Fire protection ducts , 8.99MB , pdf

Mounting instructions Mounting instructions, PYROLINE® Rapid fire protection duct , 0.09MB , pdf
