Swing trunking cover, design trunking 999 | aluminium
morepic-1 morepic-2

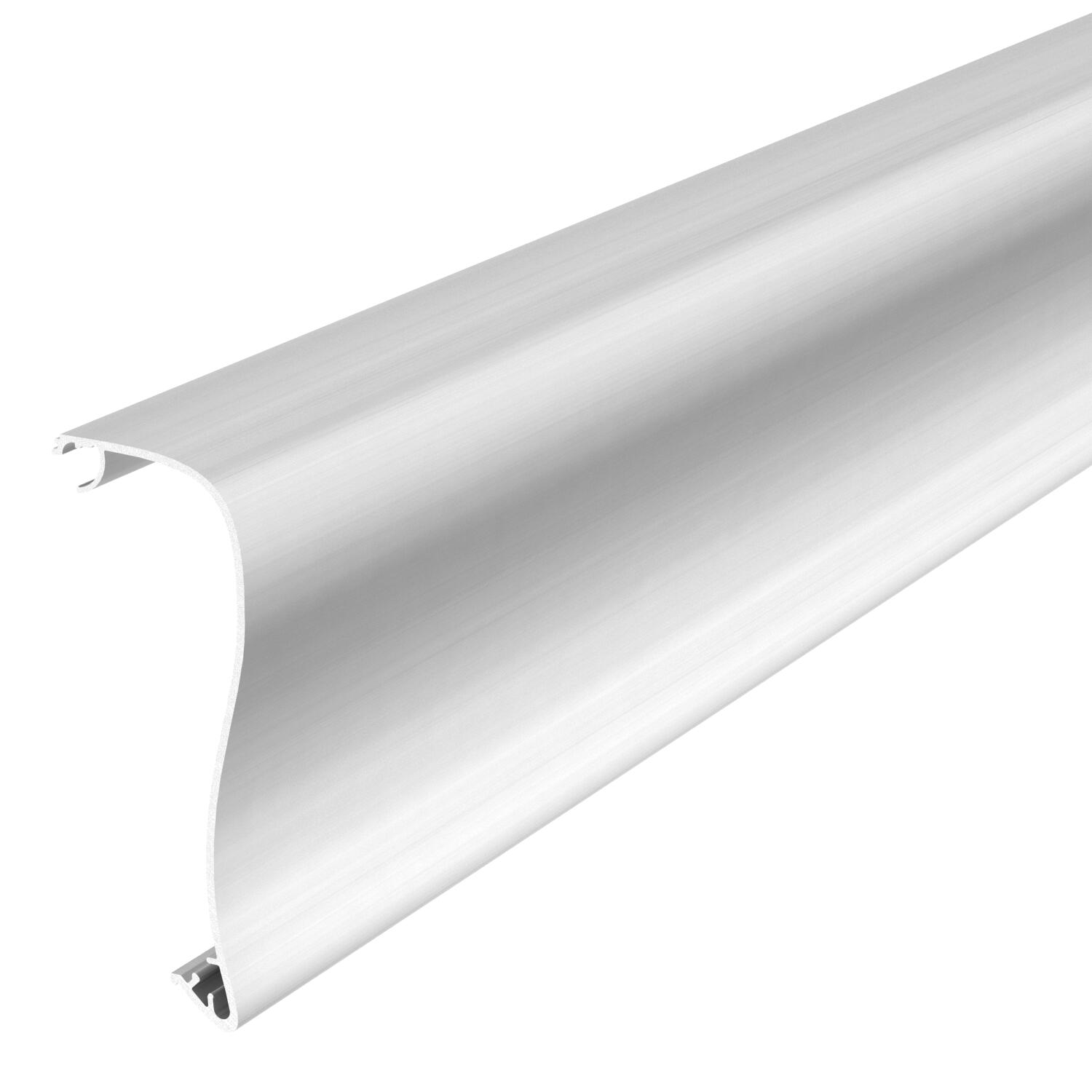

Swing trunking cover, design trunking

Item no. 6115825 | EAN 4012195914150

6115825 / OT GAD Swing EL
999 mm
aluminium
Product description
Product description
Trunking cover to create a design device installation trunking of the GAD series. "Swing" design version for complete coverage of the system opening and the switching and plug-in devices. The GAD OTA cover adapters are essential and must be planned on the trunking section with a max. spacing of 50 cm. A GAD OTD spacer must be placed between the trunking covers.
Standard version in anodised aluminium, different decoration on request.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
Technical data

Technical data

Antibacterial treatment no
Colour aluminium
Cover mounting type Cross-over
Dimension 52x140x999
Halogen-free yes
Material Aluminium
Protective film yes
Surface Anodised
Version for Smooth

Dimensions

Height 52 mm
Length 999 mm
Width 140 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 16,2309 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 16,2309 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Length Colour Item no. Quantity SSU
OT GAD Swing EL 999 mm aluminium 6115825
1 piece
Downloads

Download

Download
Download

EU declaration of conformity OT GAD Swing EL / 6115825 , 0.10MB , pdf
Download
UK Declaration of Conformity OT GAD Swing EL / 6115825 , 0.09MB , pdf
Download

Download

No invitation to tender text is available for this product.
