T piece 60 FS
Item no. 6213788 | EAN 4012196685752
- Product description
-

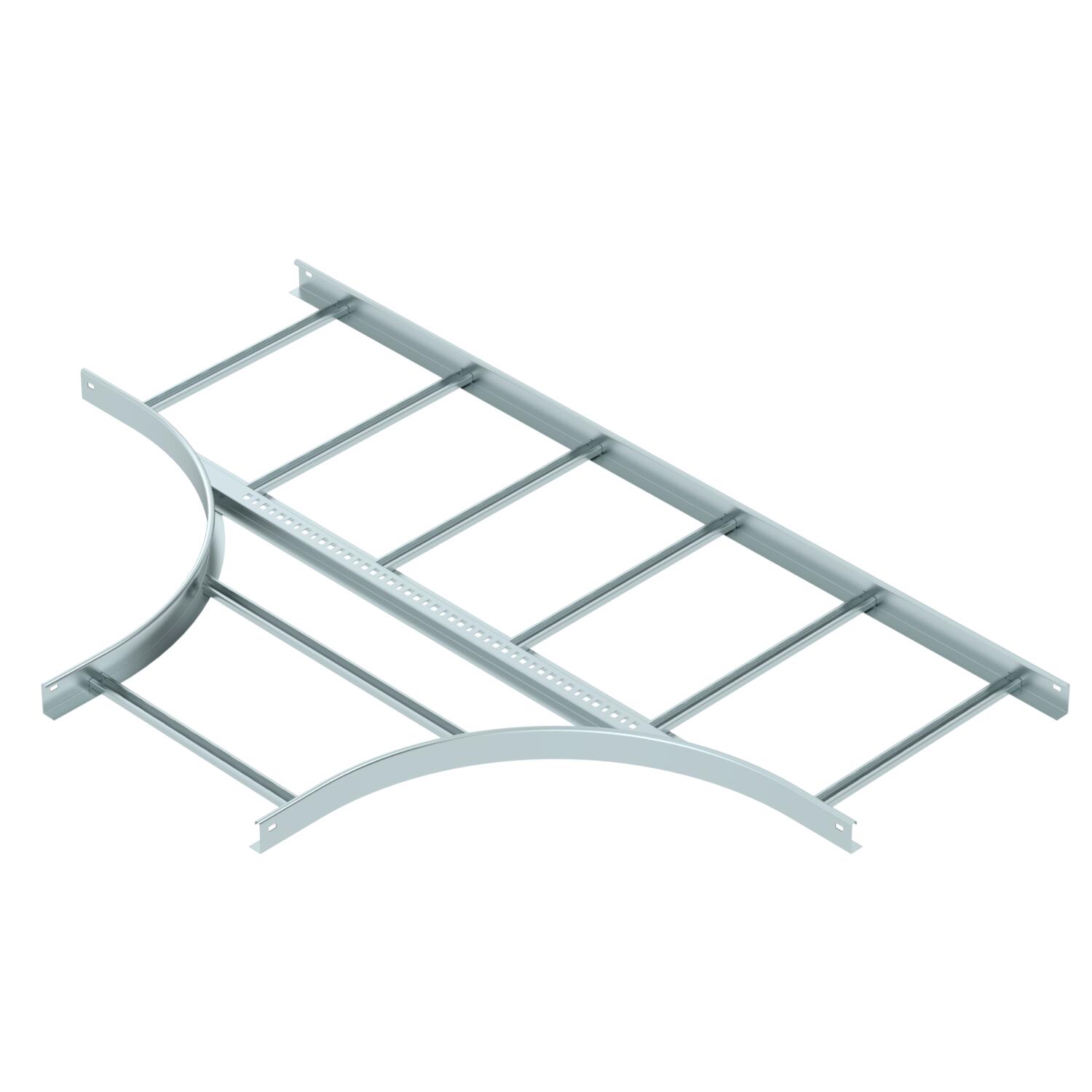

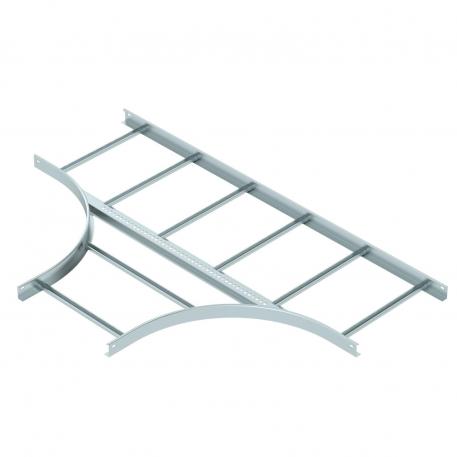

Product descriptionT piece, horizontal, for all cable ladder types of 60 mm side height.
Connectors should be ordered separately and in the appropriate quantity.
-
- Technical data
-
Technical data
Colour zinc Dimension 60x500 Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Strip galvanised Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Dimensions

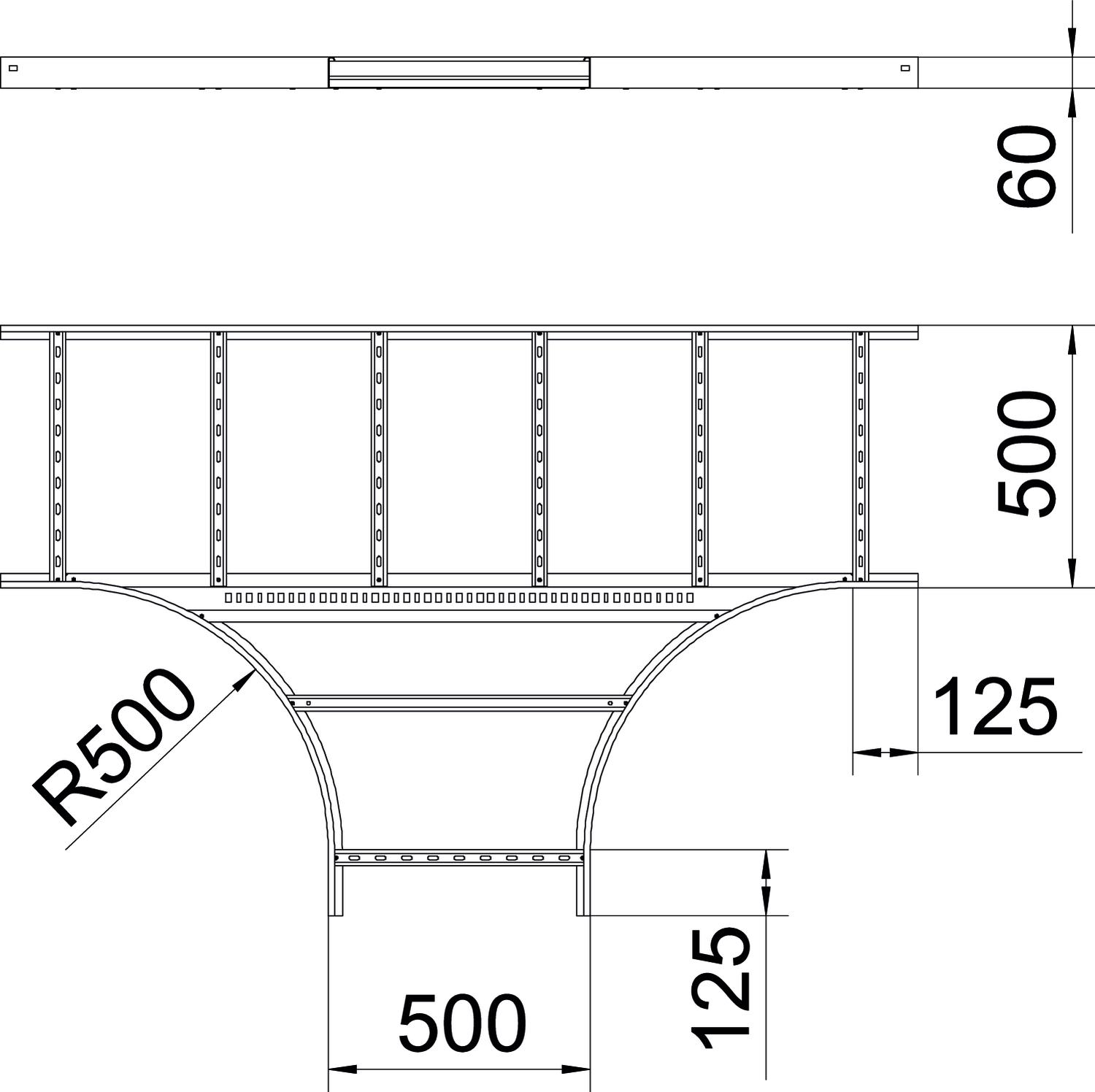

Dimension B 500 mm Dimension R 500 mm Height 60 mm Width 500 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 26,94 kg CO2e / 1 Piece CO₂ Footprint (GWP) 26,94 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-27T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FS
LVG 60 FS 6208840 10 piece - Downloads
-
Data sheet LT 650 R5 FS / 6213788 , 0.22MB , pdfEU declaration of conformity LT 650 R5 FS / 6213788 , 0.10MB , pdfUK Declaration of Conformity LT 650 R5 FS / 6213788 , 0.09MB , pdfREACH Declaration of conformity LT 650 R5 FS / 6213788 , 0.12MB , pdfRoHS Declaration of conformity LT 650 R5 FS / 6213788 , 0.13MB , pdfMounting instructions Cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
