Note: This article is discontinued.
You can find the current article here: 6225250 / T piece 60 A2

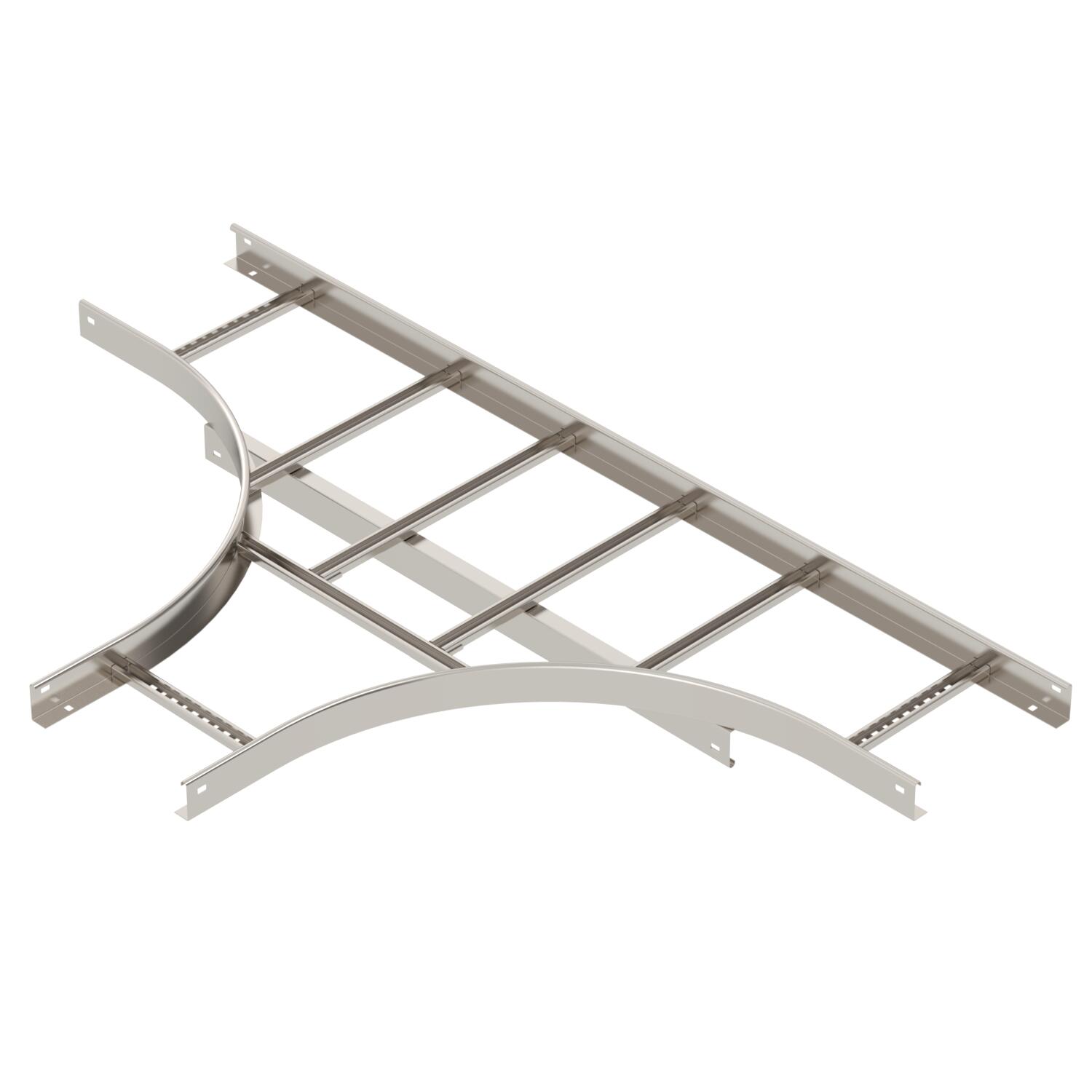

T piece VS 60 A2
Item no. 7162022 | EAN 4012196261079
- Product description
-
Product descriptionTee, horizontal, for cable ladders with medium-duty rungs (VS) and a side height of 60 mm.
Connectors should be ordered separately and in the appropriate quantity.
-
- Technical data
-
Technical data
Colour stainless steel Dimension 60x200 Dimension R 490 mm Height 60 mm Maintain electrical functions no Material Stainless steel 1.4301 Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Bright, treated Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector A2
LVG 60 A2 6208846 10 piece - Downloads
-
Data sheet LT 620 VS A2 / 7162022 , 0.20MB , pdfEU declaration of conformity LT 620 VS A2 / 7162022 , 0.10MB , pdfUK Declaration of Conformity LT 620 VS A2 / 7162022 , 0.09MB , pdfREACH Declaration of conformity LT 620 VS A2 / 7162022 , 0.12MB , pdfRoHS Declaration of conformity LT 620 VS A2 / 7162022 , 0.13MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
