Terminal strip set with screw terminals for SDB 03
Item no. 2008880 | EAN 4012196465828
- Product description
-
Product descriptionTerminal strip set for the small distributors of the SDB series. The sets can be used to expand and equip empty small distributors of the SDB 03... type series.

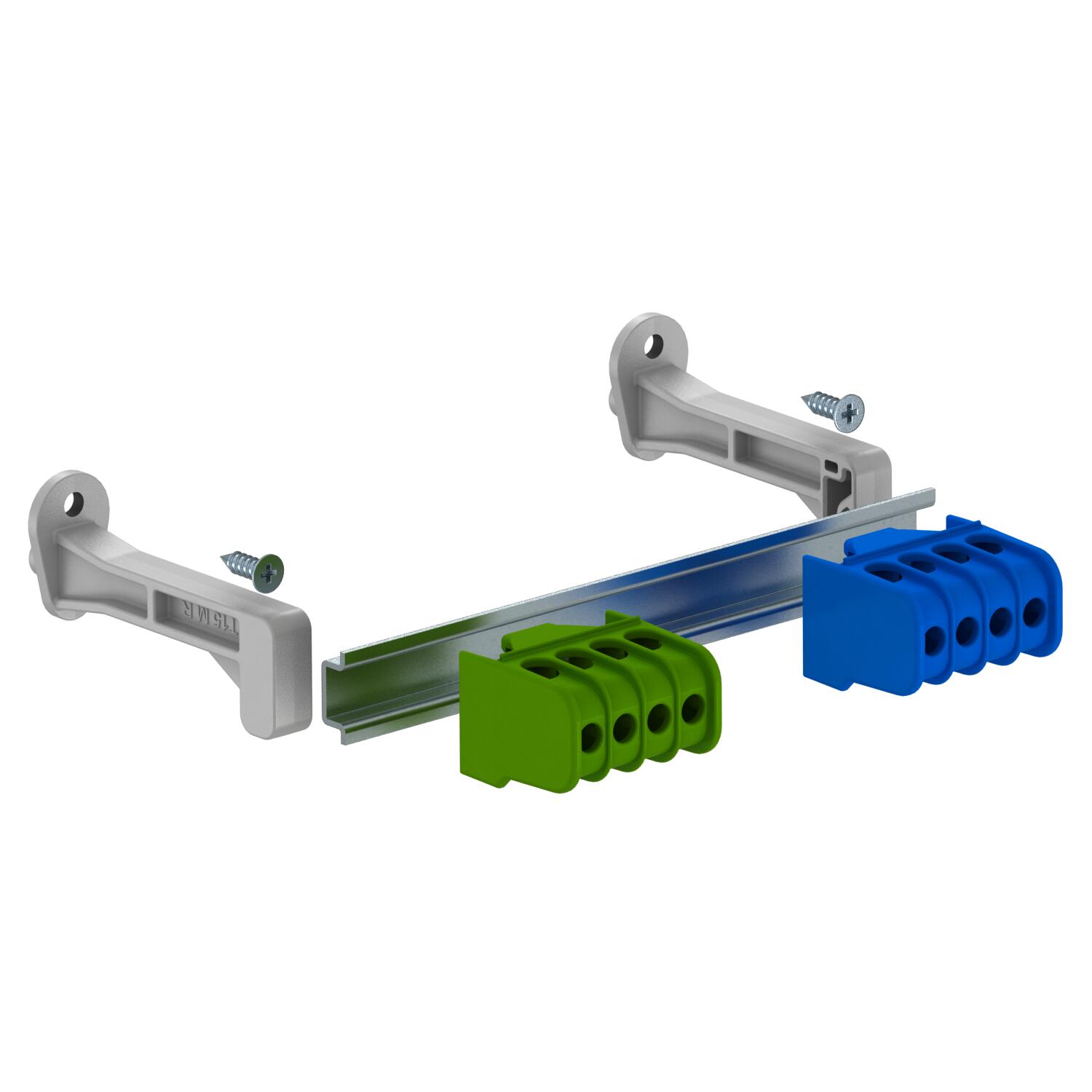

Mounting instructions; hat rail with corresponding support and fastening material; 16 mm² protective conductor terminal; 16 mm² neutral conductor terminal
The terminal strip set with screw terminals contains:
-
- Technical data
-
Technical data

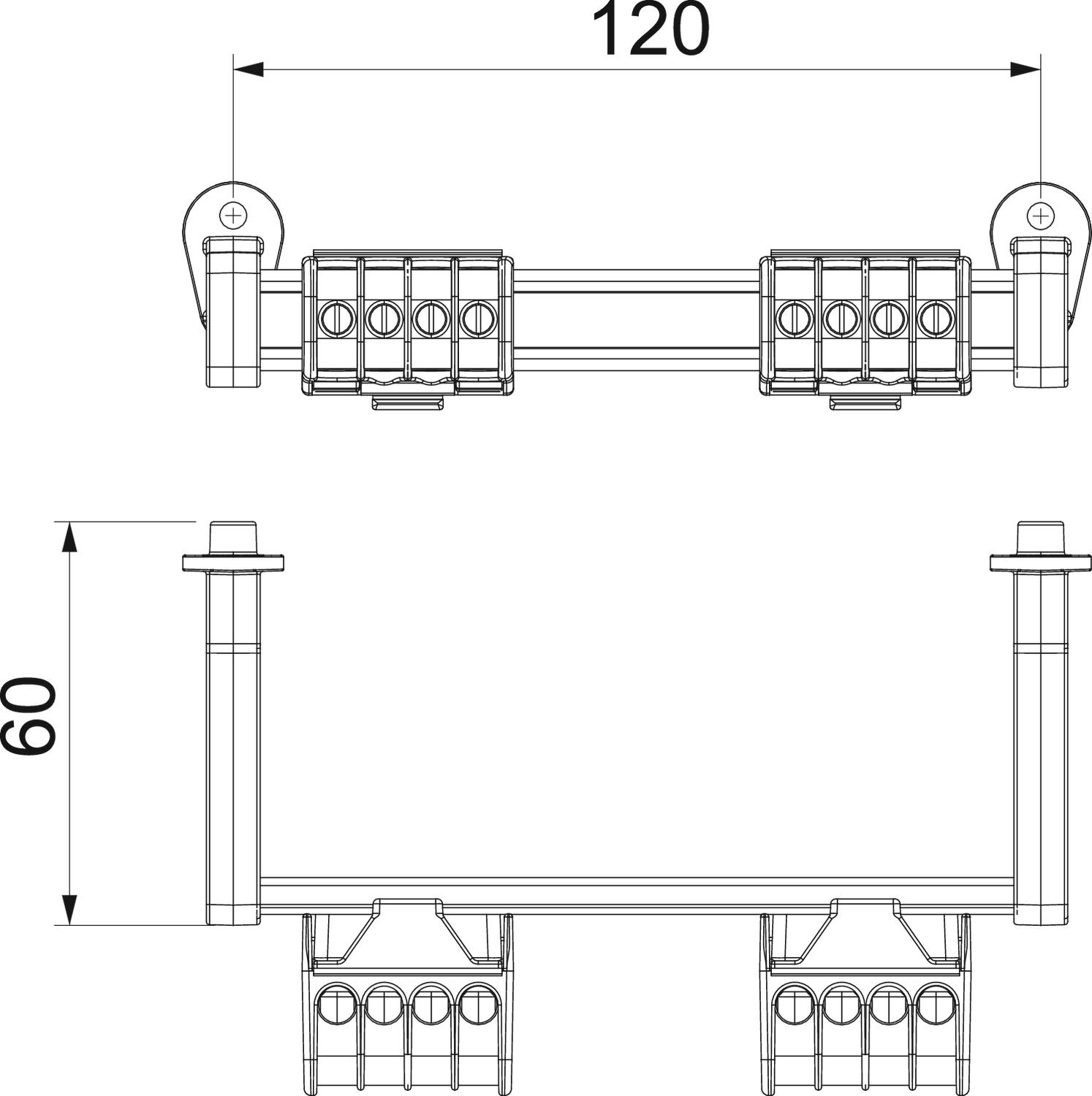

Dimension 82x15x4 Nominal cross-section, max. 16 mm² Nominal cross-section, min. 6 mm² Nominal current 100 A Nominal voltage 450 V Number of screwless terminals per pole 4 Dimensions
Height 31 mm Length 122 mm Width 20,5 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,4314 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,4314 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet KLS-SDB 03 / 2008880 , 0.18MB , pdfREACH Declaration of conformity KLS-SDB 03 / 2008880 , 0.13MB , pdfRoHS Declaration of conformity KLS-SDB 03 / 2008880 , 0.13MB , pdf
