Terminal strip set with screwless terminals for SDB 05
Item no. 2008914 | EAN 4012196465873
- Product description
-
Product descriptionTerminal strip set for the small distributors of the SDB series. The sets can be used to expand and equip the empty small distributors of the SDB 05... type series.

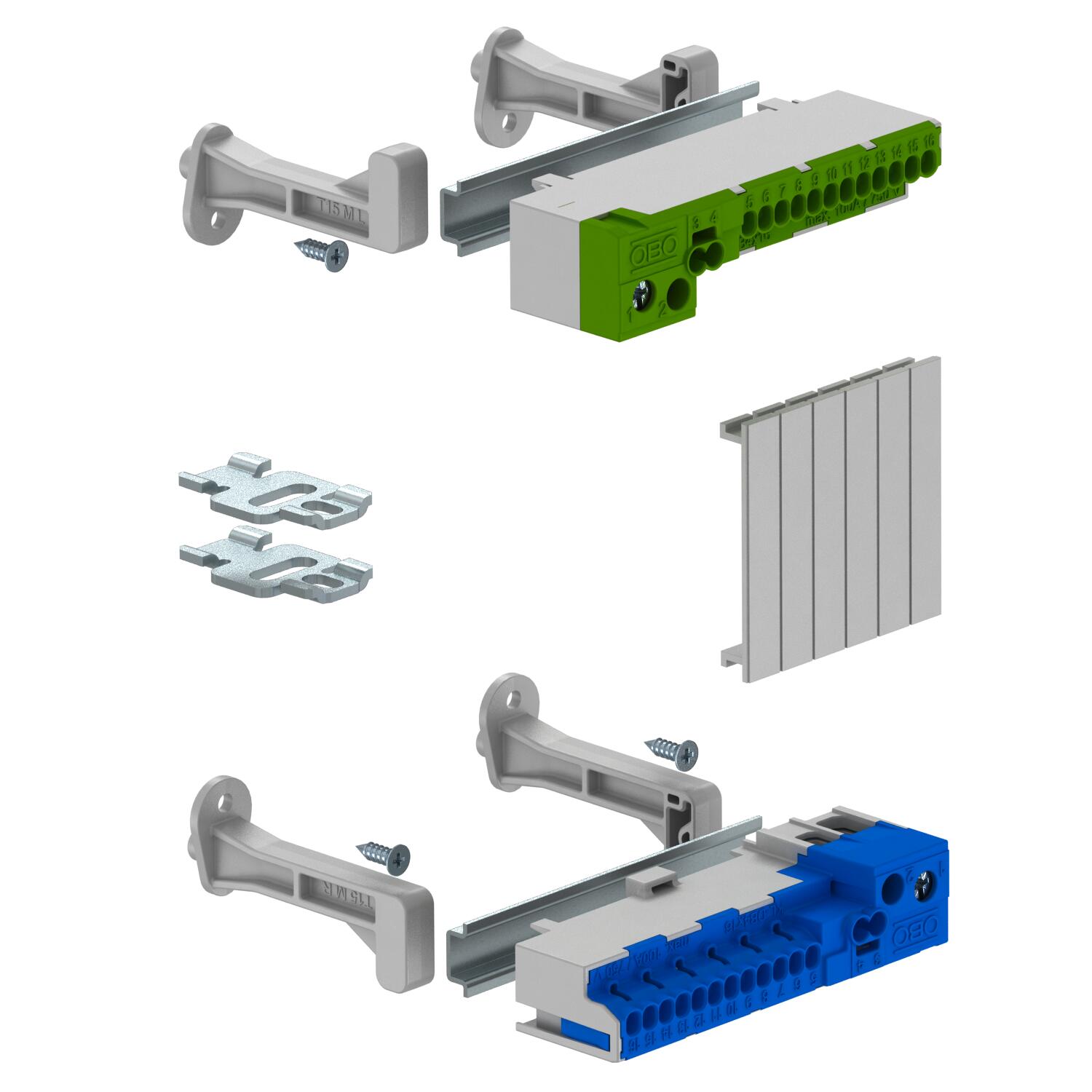

Mounting instructions; cover strip; hat rail with corresponding support and fastening material; one protective conductor terminal and one neutral conductor terminal each with two 16/25 mm² screw terminals and 2x 4 mm² and 12x 2.5 mm² screwless terminals
The terminal strip set with screwless terminals contains:
-
- Technical data
-
Technical data

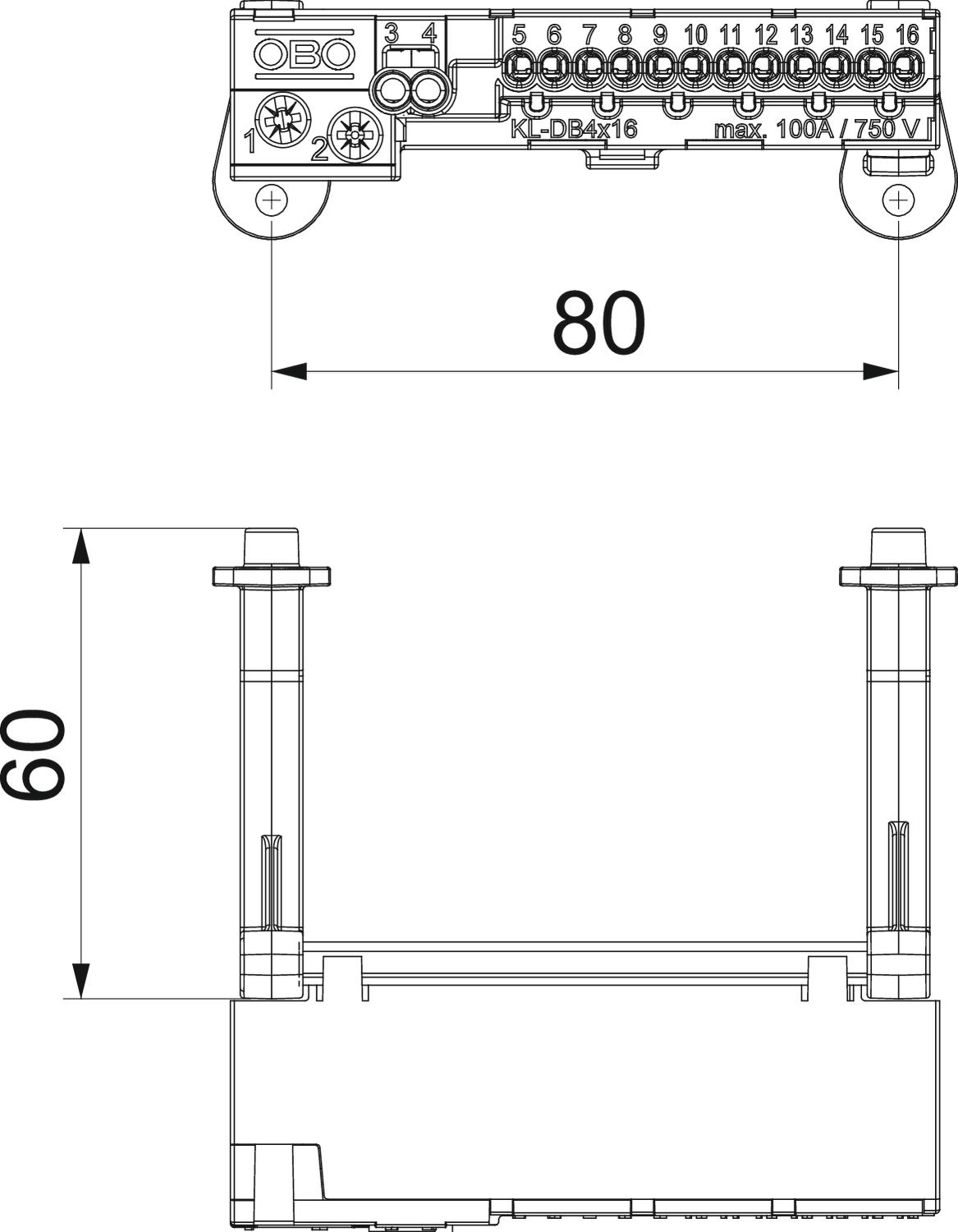

Cross-section 2.5 mm² Dimension 121x15x4 Dimensions
Height 4 mm Length 82 mm Width 15 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,9302 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,9302 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet KLS-SDB 05S / 2008914 , 0.18MB , pdfREACH Declaration of conformity KLS-SDB 05S / 2008914 , 0.12MB , pdfRoHS Declaration of conformity KLS-SDB 05S / 2008914 , 0.13MB , pdf
