Tilting anchor
Item no. 3482030 | EAN 4012195310693
- Product description
-

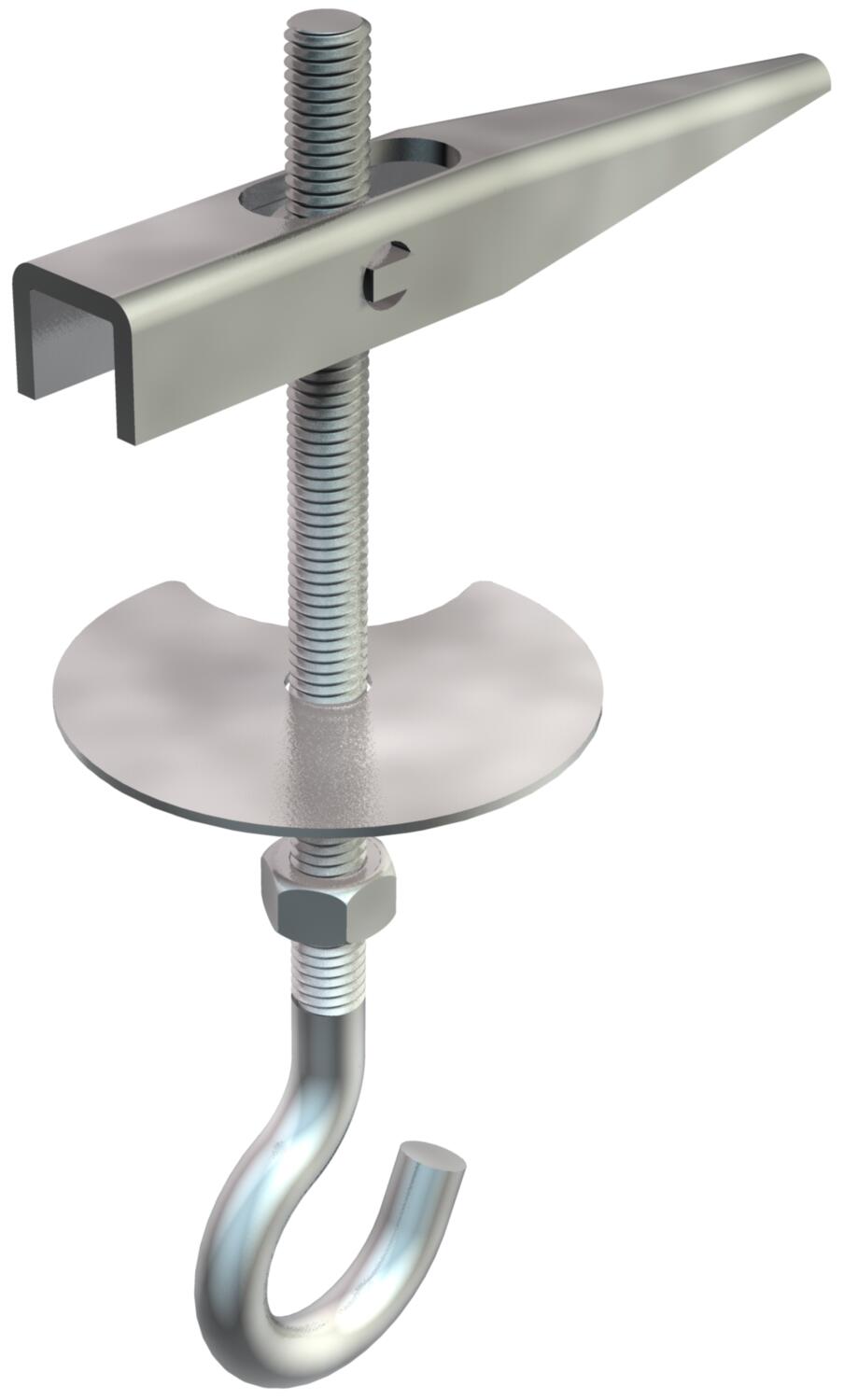

Product descriptionOne washer and one hexagonal nut, with ceiling hook.
Note: Reckon with 5x safety for luminaire suspensions.
-
- Technical data
-
Technical data

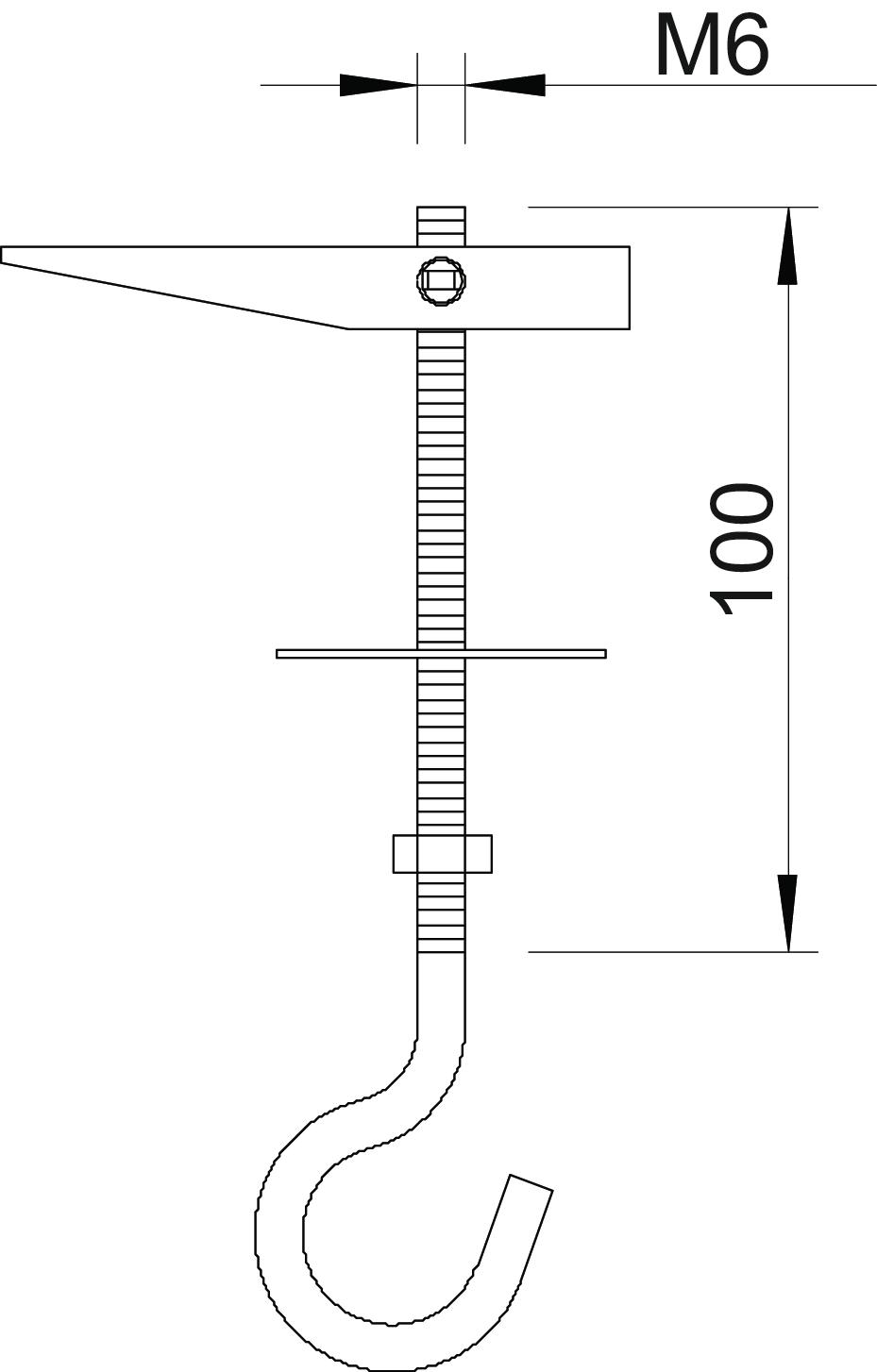

Breaking load 0,7 kN Dimension M6x100mm Drill hole 16 mm Drill hole diameter, min. 16 mm hook diameter 16 mm Material Steel Product series Anchors ROHS-conformant yes Surface Electrogalvanised Thread M6 Thread type Metric Version for With ceiling hook With washer yes Dimensions
Dimension L 100 mm Length 100 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1446 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1446 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 454 M6x100 G / 3482030 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 454 M6x100 G / 3482030 , 0.04MB , pdfREACH Declaration of conformity 454 M6x100 G / 3482030 , 0.12MB , pdfRoHS Declaration of conformity 454 M6x100 G / 3482030 , 0.13MB , pdf
