Tilting anchor
Item no. 3482138 | EAN 4012195310938
- Product description
-

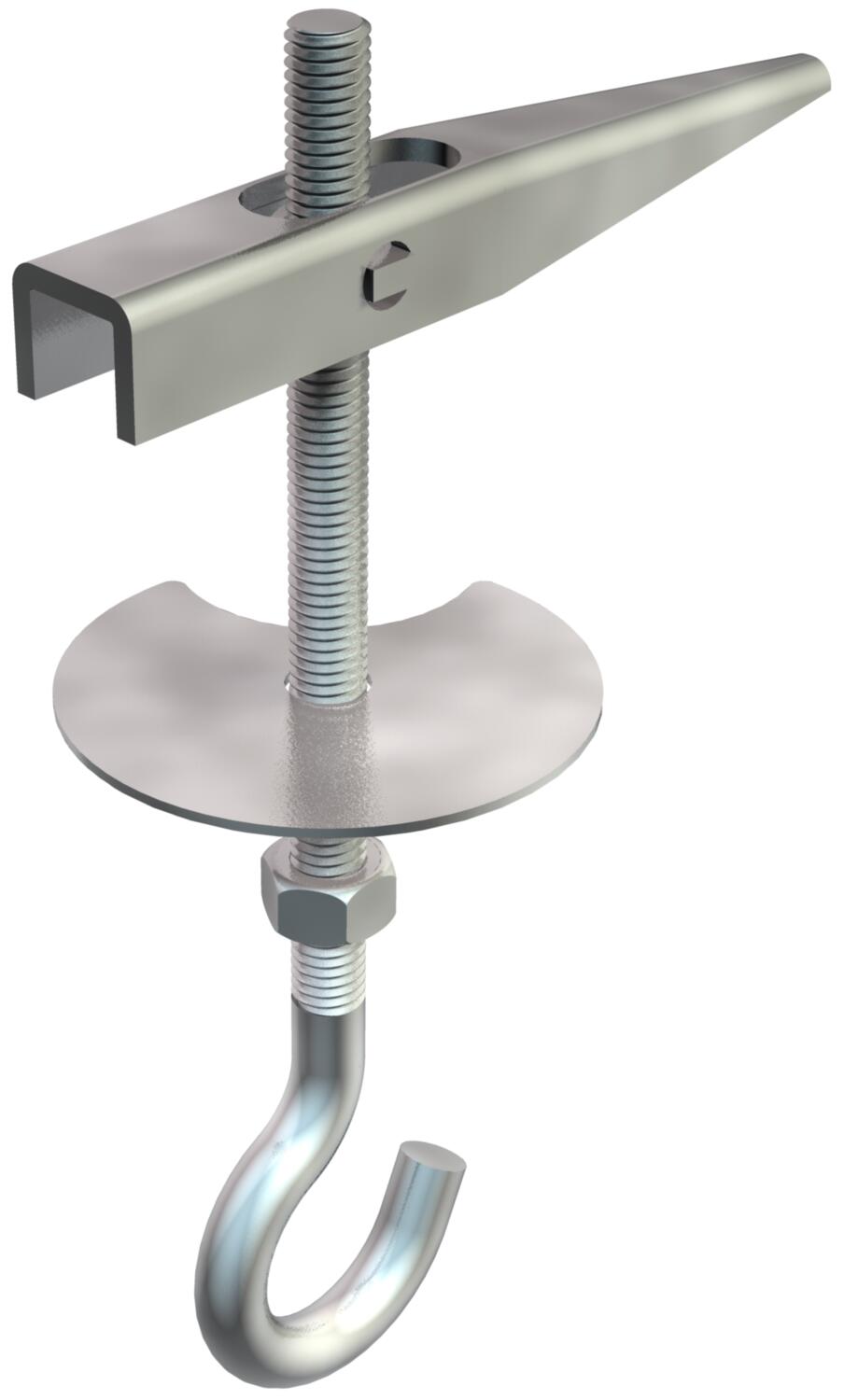

Product descriptionOne washer and one hexagonal nut, with ceiling hook.
Note: Reckon with 5x safety for luminaire suspensions.
-
- Technical data
-
Technical data

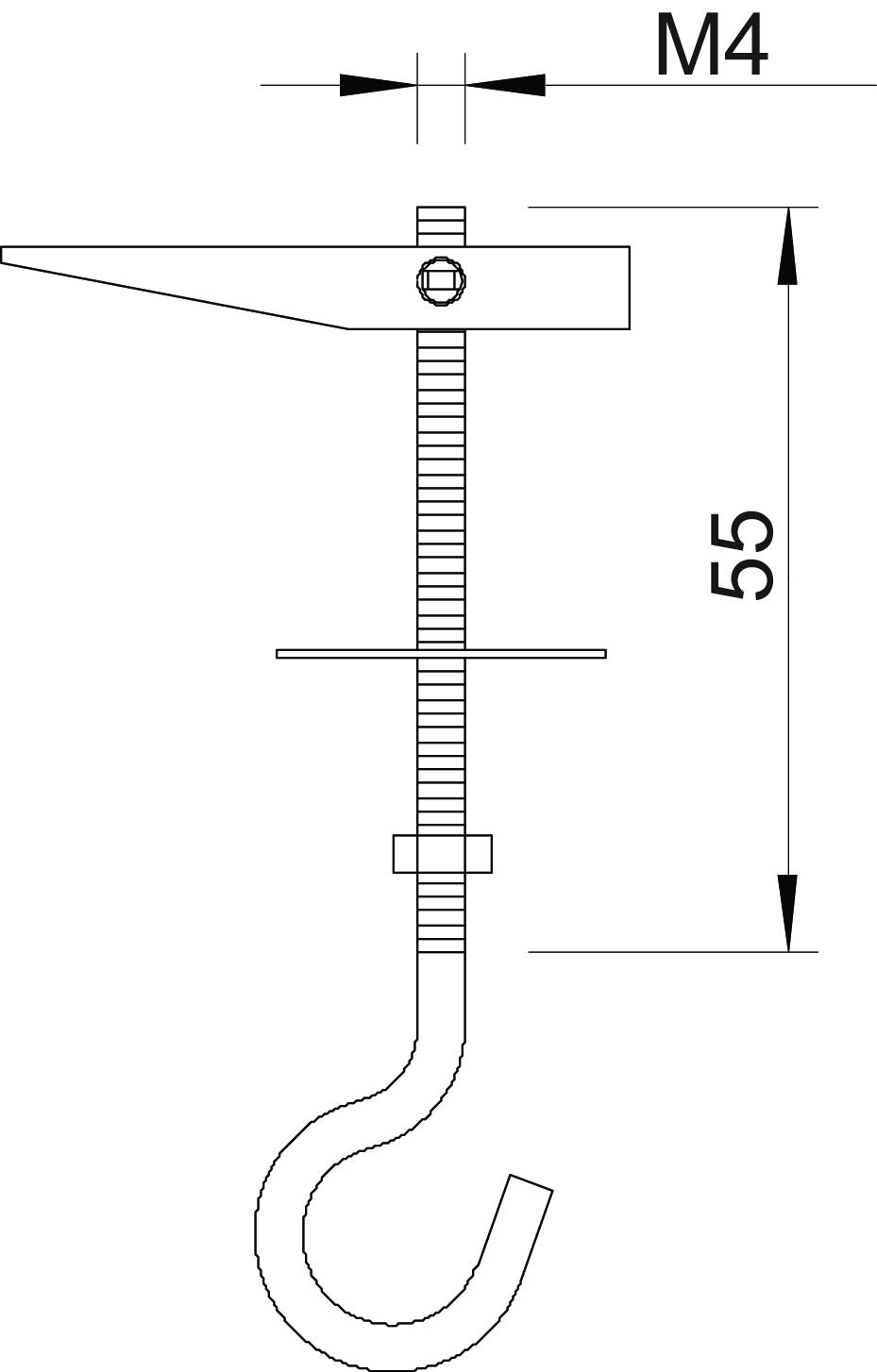

Breaking load 0,25 kN Dimension M4x55mm Drill hole 13 mm Drill hole diameter, min. 13 mm hook diameter 14 mm Material Steel Product series Anchors ROHS-conformant yes Surface Electrogalvanised Thread M4 Thread type Metric Version for With ceiling hook With washer yes Dimensions
Dimension L 55 mm Length 55 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0786 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0786 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 457 M4x55 G / 3482138 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 457 M4x55 G / 3482138 , 0.04MB , pdfREACH Declaration of conformity 457 M4x55 G / 3482138 , 0.12MB , pdfRoHS Declaration of conformity 457 M4x55 G / 3482138 , 0.13MB , pdf
