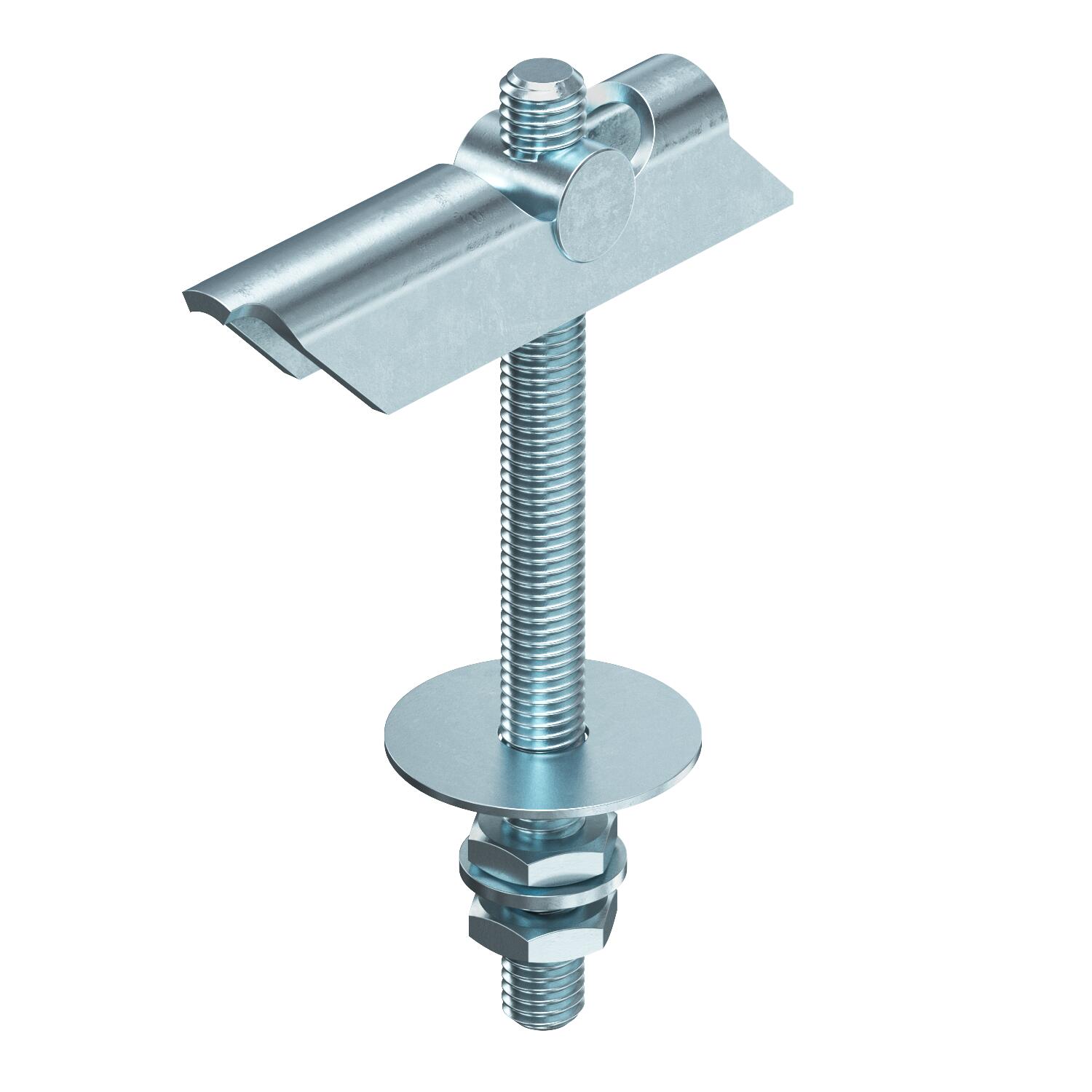

Tilting anchor
Item no. 3482707 | EAN 4012195239475
- Product description
-
Product descriptionIncluding nut and large washer.
The universal heavy-duty fastening for stressed concrete, hollow steel profiles, metal sheets and plates.
Use: heating, ventilation and air conditioning technology, cooling systems, sprinkler systems, pipes, cable tracks, etc.
* Dependent on the thickness of the ceiling profile.
-
- Technical data
-
Technical data
Breaking load 2,4 kN Dimension M8x100mm Drill hole 22 mm Drill hole diameter, min. 22 mm Material Steel Minimum cavity depth 75 mm Surface Electrogalvanised Thread M8 Thread type Metric Version for With threaded shaft With washer yes Dimensions
Dimension L 100 mm Length 100 mm - All types
- Downloads
-
Data sheet KD 8 100 / 3482707 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity KD 8 100 / 3482707 , 0.04MB , pdfREACH Declaration of conformity KD 8 100 / 3482707 , 0.13MB , pdfRoHS Declaration of conformity KD 8 100 / 3482707 , 0.13MB , pdf
