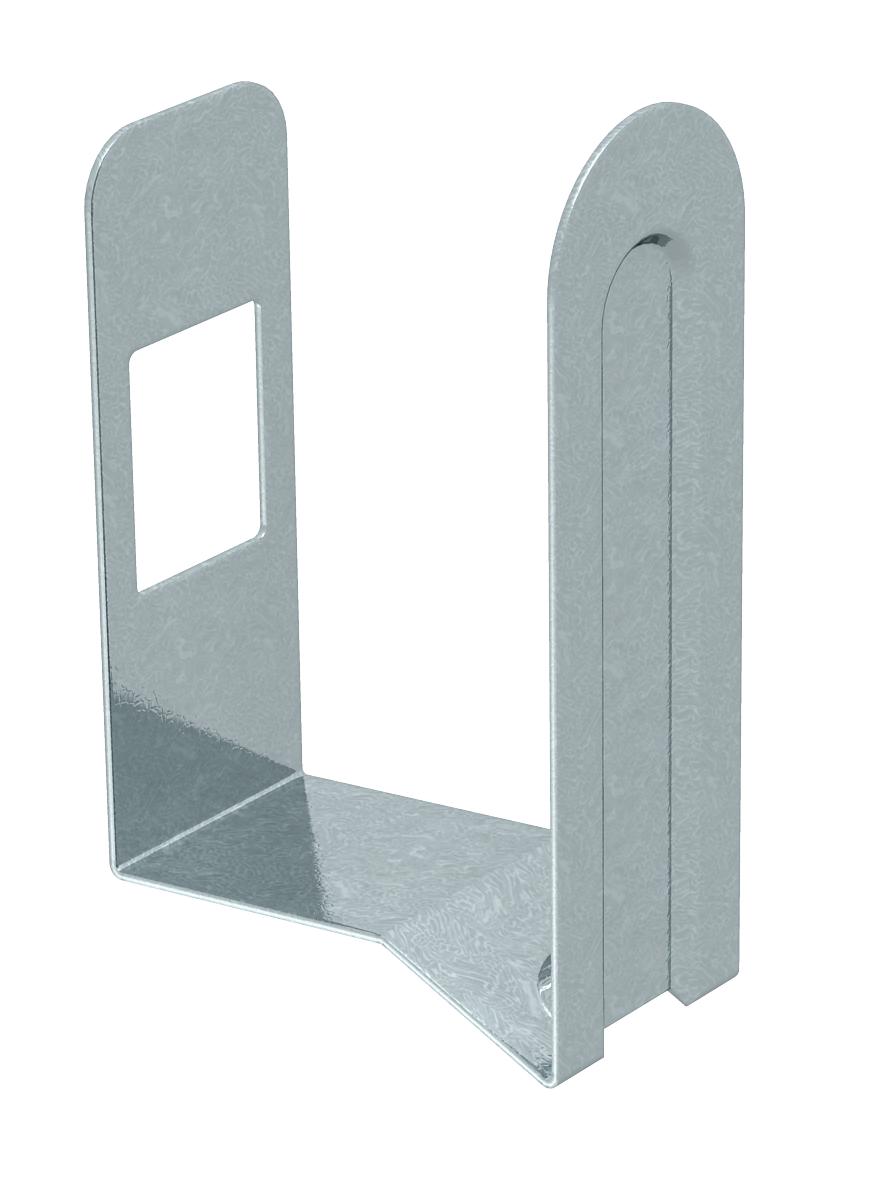

Trunking clamp, LKM, trunking width 100 mm
Item no. 6249884 | EAN 4012196119233
- Product description
-
Product descriptionThe duct clamp keeps the inserted cables in the duct, thus simplifying installation on walls and ceilings. The duct clamps are plugged onto the loop perforation and locked on the side wall. Suitable for duct width 100 mm.
-
- Technical data
-
Technical data
Colour zinc Cover width 100 mm Dimension 80mm Fastening type Lockable for duct dimension 60 x 100 Halogen-free yes Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Self-extinguishing no Surface Electrogalvanised, blue-passivated With equipotential bonding no Dimensions

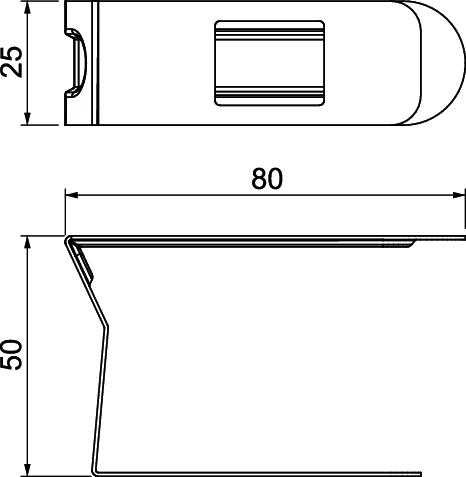

Dimension a 25 mm Dimension b 81 mm Dimension c 49 mm Height 49 mm Length 25 mm Width 81 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,059 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,059 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet LKM K80 / 6249884 , 0.18MB , pdfBrochure LKM cable trunking , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity LKM K80 / 6249884 , 0.10MB , pdfUK Declaration of Conformity LKM K80 / 6249884 , 0.09MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
