Trunking connector and joint cover
Item no. 6113023 | EAN 4012197372989
- Product description
-

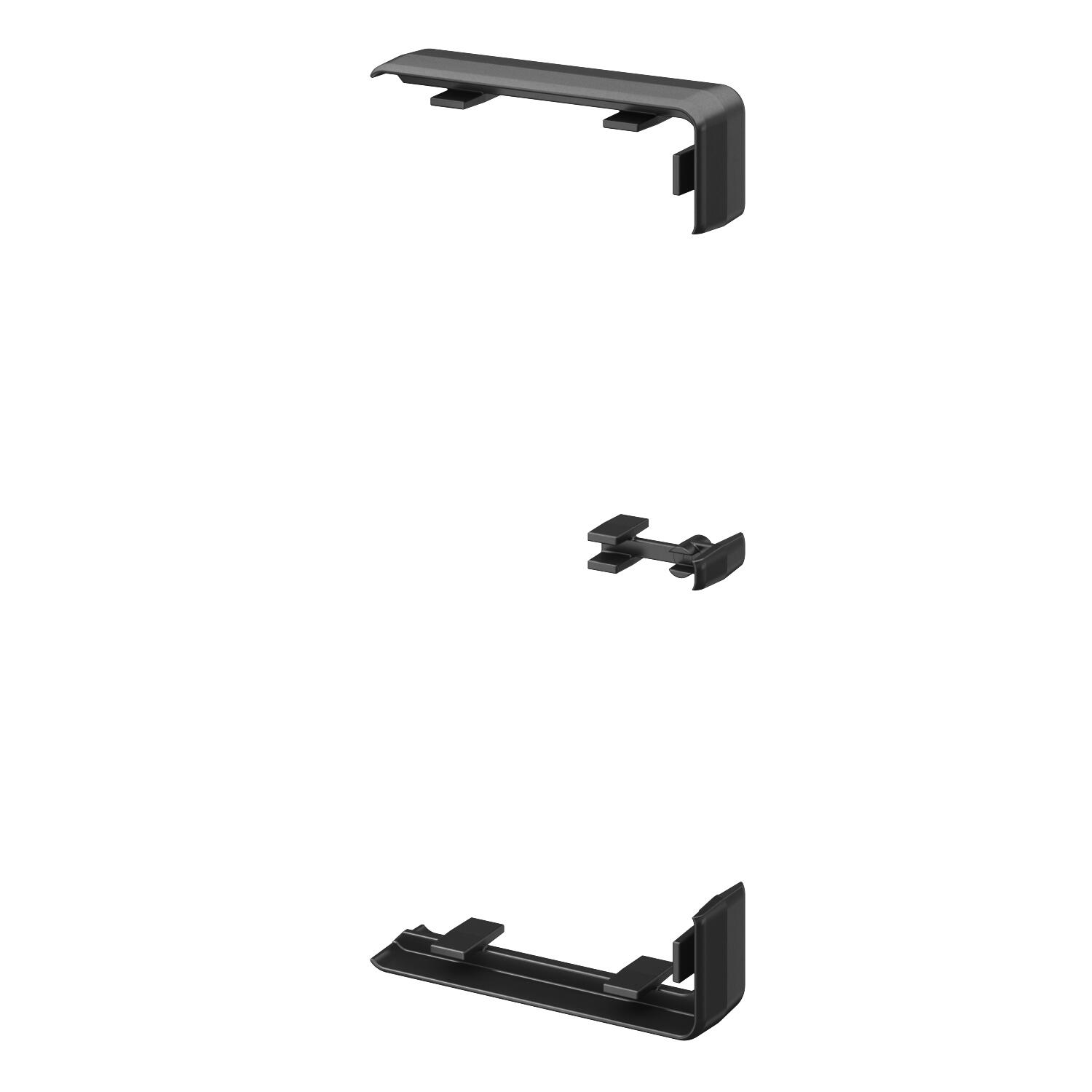

Product descriptionJoint cover for the bases of the Rapid 45-2 device installation trunking to hide cut edges and provide a perfect connection of the trunking segments. The joint covers are attached. Suitable for trunking width 100 mm and 165 mm.
-
- Technical data
-
Technical data
Colour Jet black; RAL 9005 Cover width 45 mm Dimension 168x55x15 Fastening type Slide (before mounting) for duct width 100,17 mm for trunking height 53 mm Halogen-free yes Material Polycarbonate/Acrylnitrile-butadiene-styrene Shape Symmetrical Version for Trunking cut cover Dimensions
Height 27 mm Length 15 mm Width 55 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0462 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0462 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet GK-KS45-1SW / 6113023 , 0.18MB , pdfEU declaration of conformity GK-KS45-1SW / 6113023 , 0.10MB , pdfREACH Declaration of conformity GK-KS45-1SW / 6113023 , 0.12MB , pdfRoHS Declaration of conformity GK-KS45-1SW / 6113023 , 0.13MB , pdfMounting instructions Geräteeinbaukanal Rapid 45-2® , 2.65MB , pdfMounting instructions Cable trunking WDK , 6.31MB , pdfNo invitation to tender text is available for this product.
