Note: This article is discontinued.
UDHOME2 floor socket, with tube body, double NF, stainless steel
Item no. 7368411 | EAN 4012196591831
- Product description
-

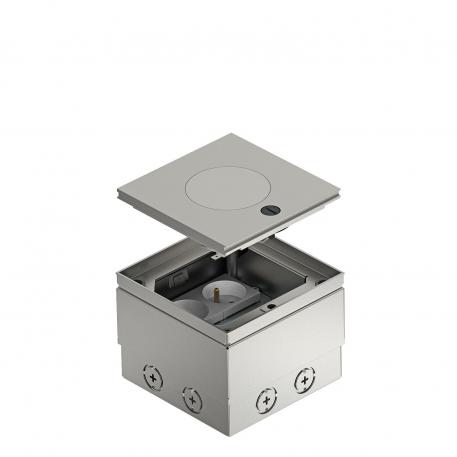

Product descriptionSquare floor socket for use in wet-care cavity and screed floors in indoor areas. Cable exit for height-adjustable tube body. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 110 mm, the height-adjustment range is +25 mm. The load-bearing capacity of 15 kN is only guaranteed when in an unused state.
-
- Technical data
-
Technical data

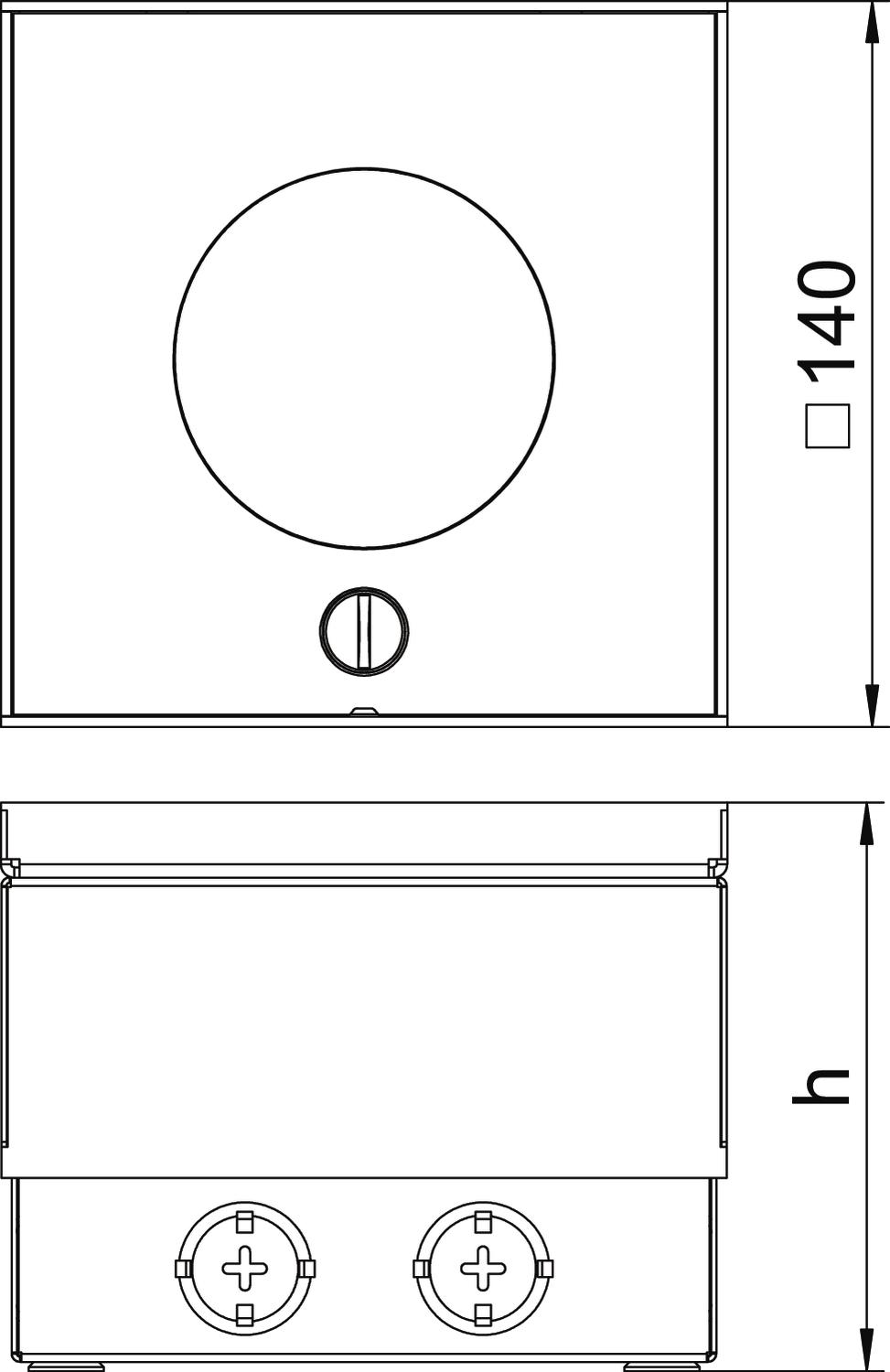

Cable outlet version Lowerable tube body CO2 Footprint (GWP) Cradle-to-Gate 14,8391 kg CO₂e / 1 Piece Dimension 140x140x110 Dimension h 110 mm Floor care Wet Floor covering protection frame no Floor height, max. 130 mm Floor height, min. 110 mm Installation depth 110 mm Length 140 mm Length of external dimensions 140 mm Length of installation dimensions 140 mm Material Stainless steel Number of mounting boxes 1 Opening mechanism Sash lock Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for underfloor ducts yes Suitable for wet care yes Version for Square Wide external dimensions 140 mm Wide installation dimensions 140 mm Width 140 mm With floor covering recess no - All types
- Downloads
-
Data sheet UDHOME2 VF N / 7368411 , 0.18MB , pdfSafety data sheet UDHOME2 VF N / 7368411 , 0.05MB , pdfEU declaration of conformity UDHOME2 VF N / 7368411 , 0.11MB , pdfREACH Declaration of conformity UDHOME2 VF N / 7368411 , 0.13MB , pdfRoHS Declaration of conformity UDHOME2 VF N / 7368411 , 0.13MB , pdfMounting instructions Mounting instructions, UDHOME2 AF, long , 0.04MB , pdfMounting instructions Mounting instructions UDHOME2 AF, short , 0.23MB , pdfInstructions for use PF-G instructions for use , 2.00MB , pdfInstructions for use UDHOME2 AF user manual , 0.11MB , pdf
