Note: This article is discontinued. You can find the current article here: 2003700 / UP Flush-mounted device box 46

UG60 device socket with square support 40 | | 20/25 mm | 7

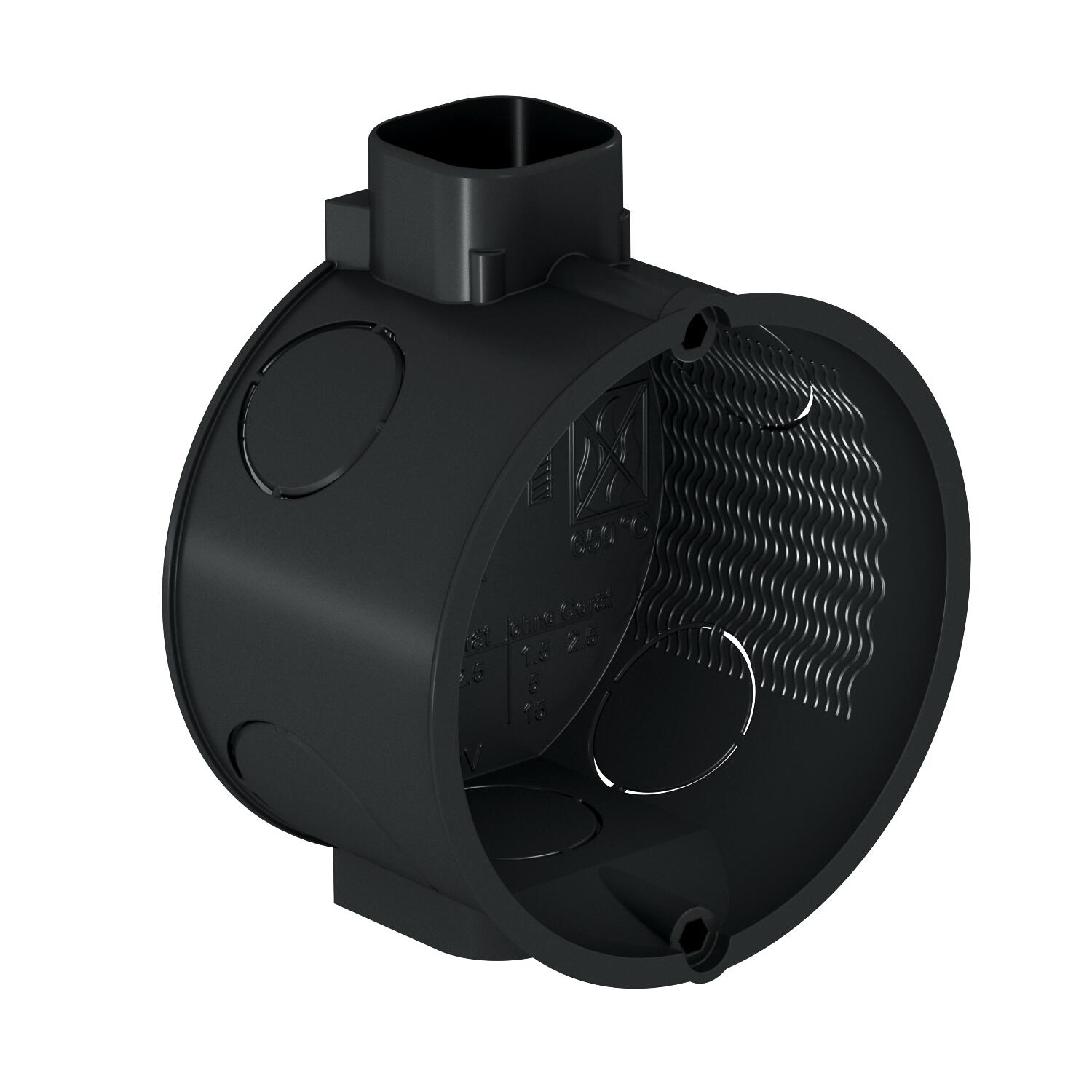

UG60 device socket with square support

Item no. 2004372 | EAN 4012195290391

Item no. / Types	2004372 / UG 60 258G

Height	40 mm

for pipe diameter	20/25 mm

No. of entries	7

Product description

Product description

The ideal system for use in any kind of masonry. The products were developed according to the state of the art and are perfectly matched. They can fulfil any practical requirements, thus allowing perfect installations in record time.
The system comprises a comprehensive range of accessories and can be used for any application.

Technical data

Technical data

Accessory screw clearance	60 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,0416 kg CO₂e / 1 Piece
Colour	Black
Cover	Without
Device fixing	Screw or spread

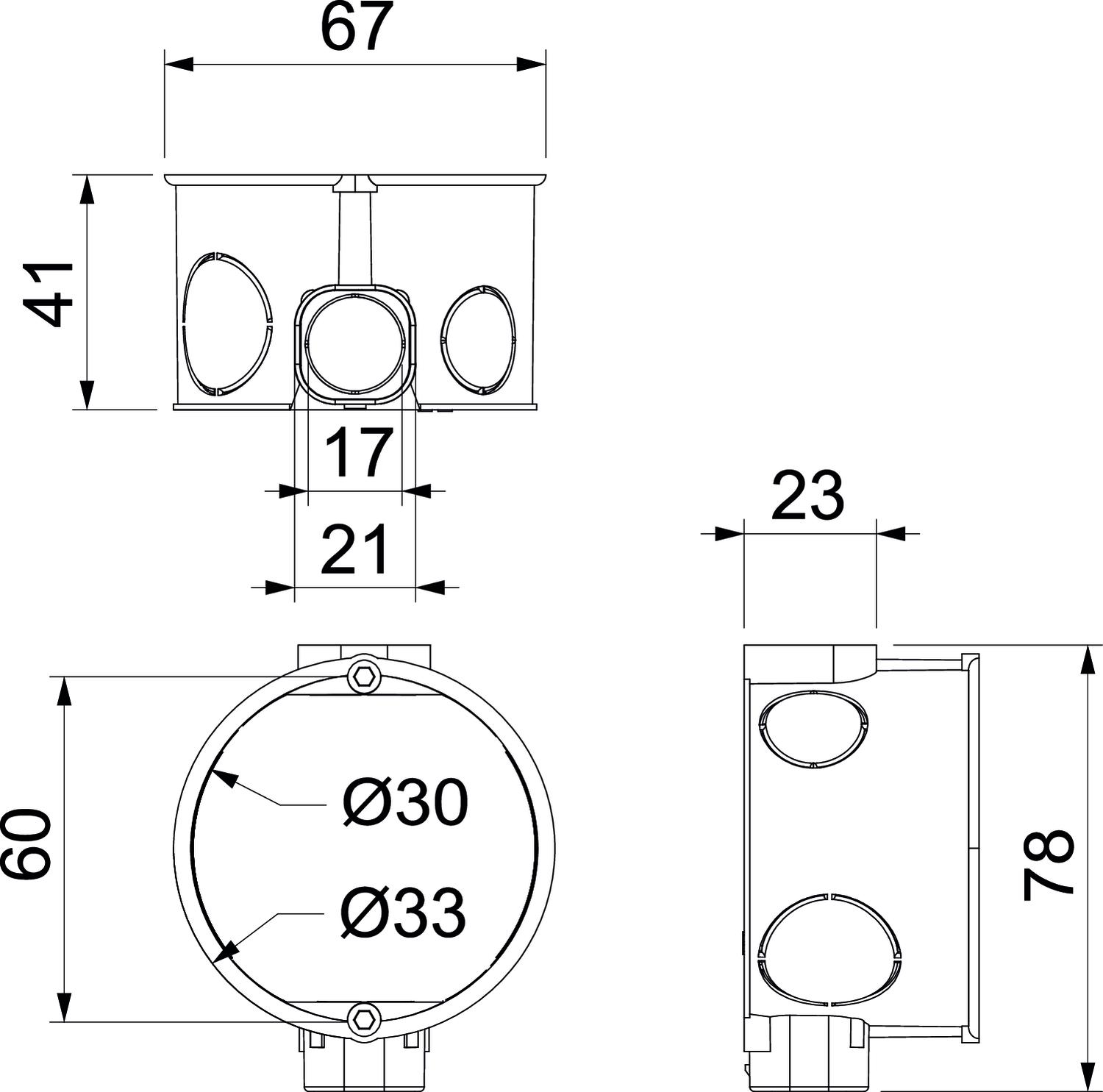

Dimension	Ø60mm, H40mm
Equipment	Without
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Floor height, min.	42 mm
for pipe diameter	20/25 mm
Height	40 mm

Material	Polystyrene
No. of entries	7
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	1,5 mm²
Protection rating	IP20
Rated voltage	400 V
Sealable	no
Shape	Round
Support	Square support
Type of entry	Break-out openings for cables and pipes Ø 20 mm and Ø 25 mm
With bolts	no
