Underfloor box for GES4
Item no. 7427430 | EAN 4012195916925
- Product description
-

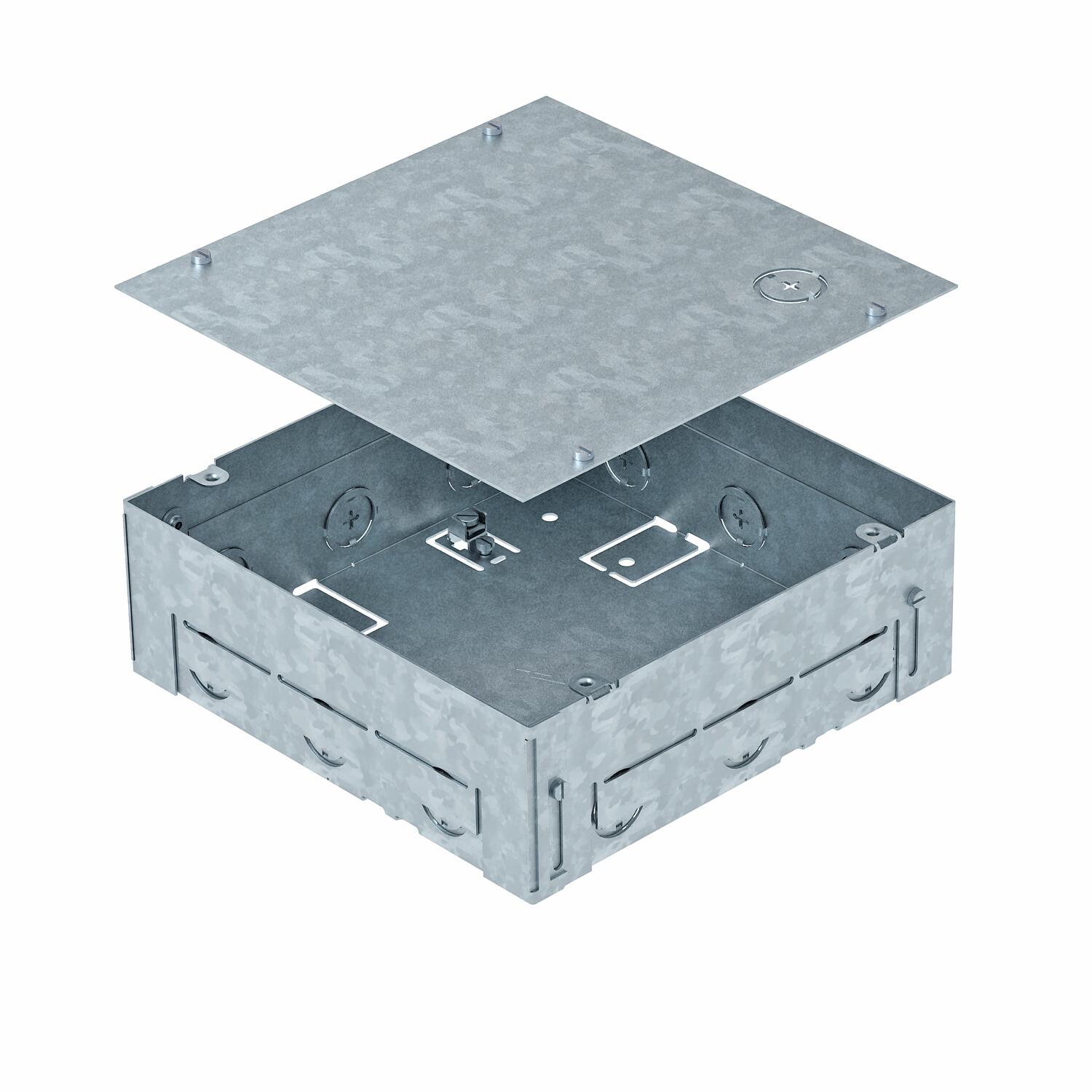

Product descriptionSquare installation housing for one GES4-2 service unit for outlet in screed floors for indoor use. With pre-marked insertion openings for pipelines (M25) on all four sides.
In the as-delivered state, the installation housing is closed with a mounting protection lid.
The minimum installation depth is 70 mm, the height-adjustment range +30 mm.
-
- Technical data
-
Technical data

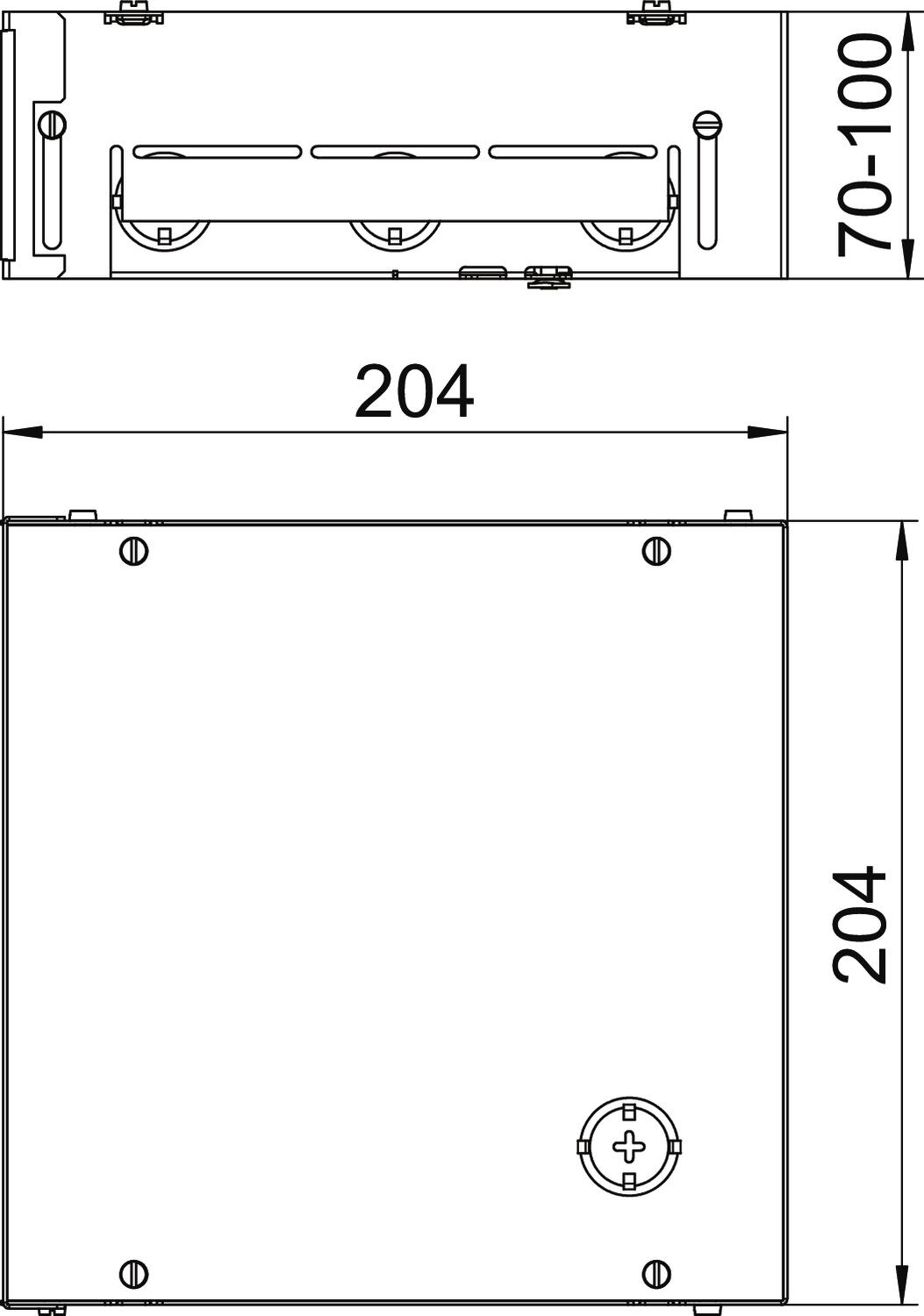

Dimension 210x205x75 Material Steel Surface Strip galvanised Dimensions
Length 205 mm Width 205 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 5,1627 kg CO2e / 1 Piece CO₂ Footprint (GWP) 5,1627 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet GES4 BOX / 7427430 , 0.18MB , pdfSafety data sheet GES4 BOX / 7427430 , 0.05MB , pdfEU declaration of conformity GES4 BOX / 7427430 , 0.11MB , pdfREACH Declaration of conformity GES4 BOX / 7427430 , 0.13MB , pdfRoHS Declaration of conformity GES4 BOX / 7427430 , 0.13MB , pdfMounting instructions Mounting instructions, installation housing UDHOME Box 4/9 , 0.11MB , pdf
