Note: This article is discontinued.
You can find the current article here: 2003748 / Universal cover

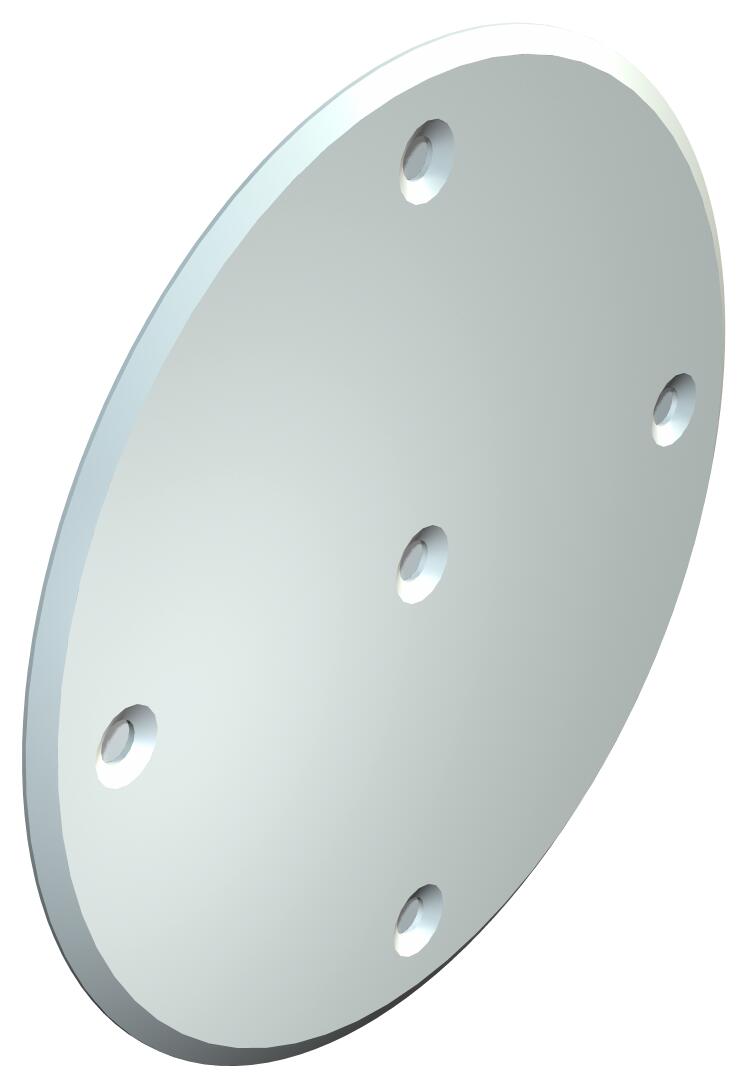

Universal cover
Item no. 2003236 | EAN 4012195024316
- Product description
-
Product descriptionUniversal cover for concealed and cavity wall socket. With drill holes, central fastening for connection socket, hole spacing 60 mm for device socket and device connection socket, hole spacing 67 mm for connection socket, retractable screws. Roughened surface.
-
- Technical data
-
Technical data

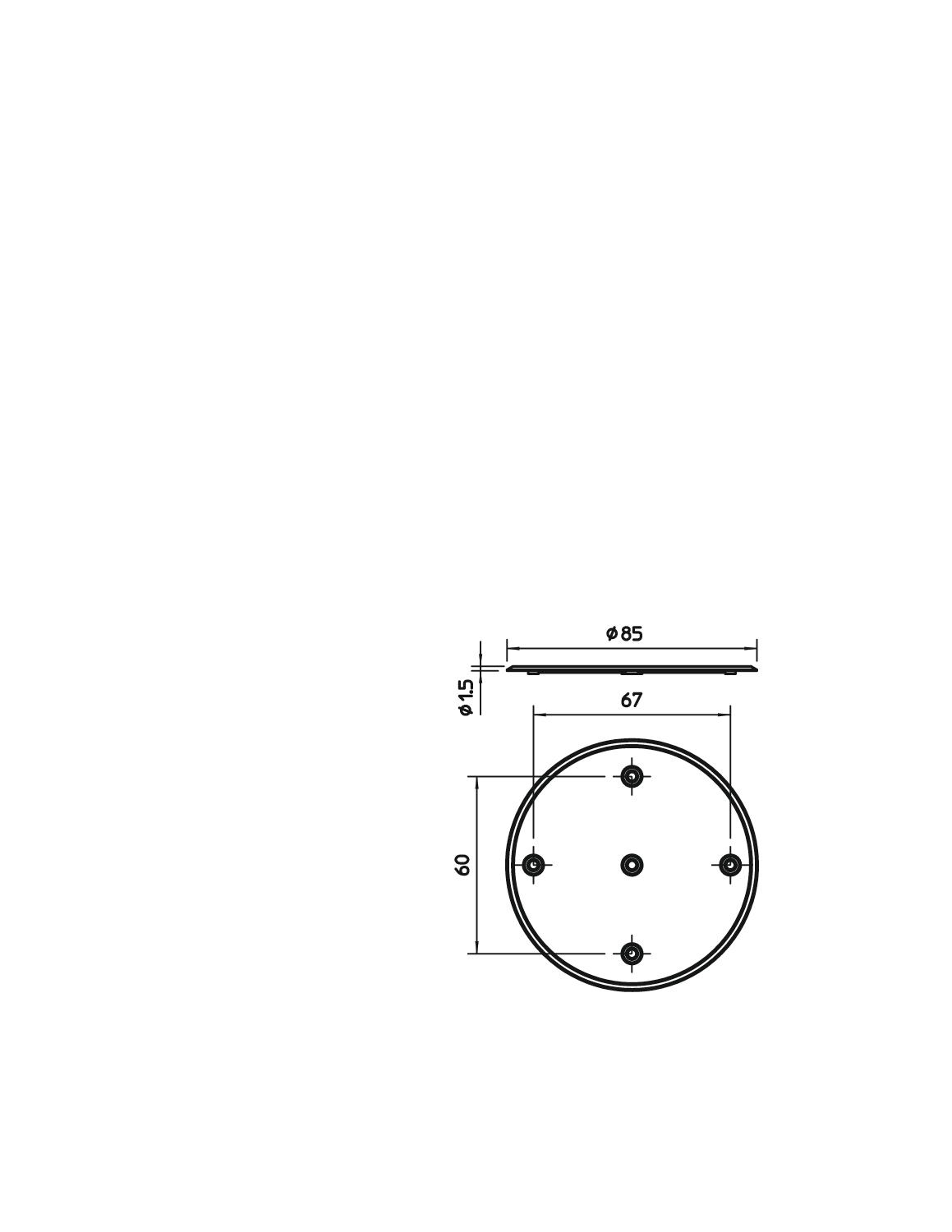

Colour White Diameter 85 mm Dimension Ø84mm Fastening type Screw-on lid Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C Halogen-free yes Height 1,5 mm Material Polystyrene Sealable no Shape Round With bolts no - All types
- Downloads
-
Data sheet UG UD / 2003236 , 0.16MB , pdfREACH Declaration of conformity UG UD / 2003236 , 0.12MB , pdfRoHS Declaration of conformity UG UD / 2003236 , 0.13MB , pdf
