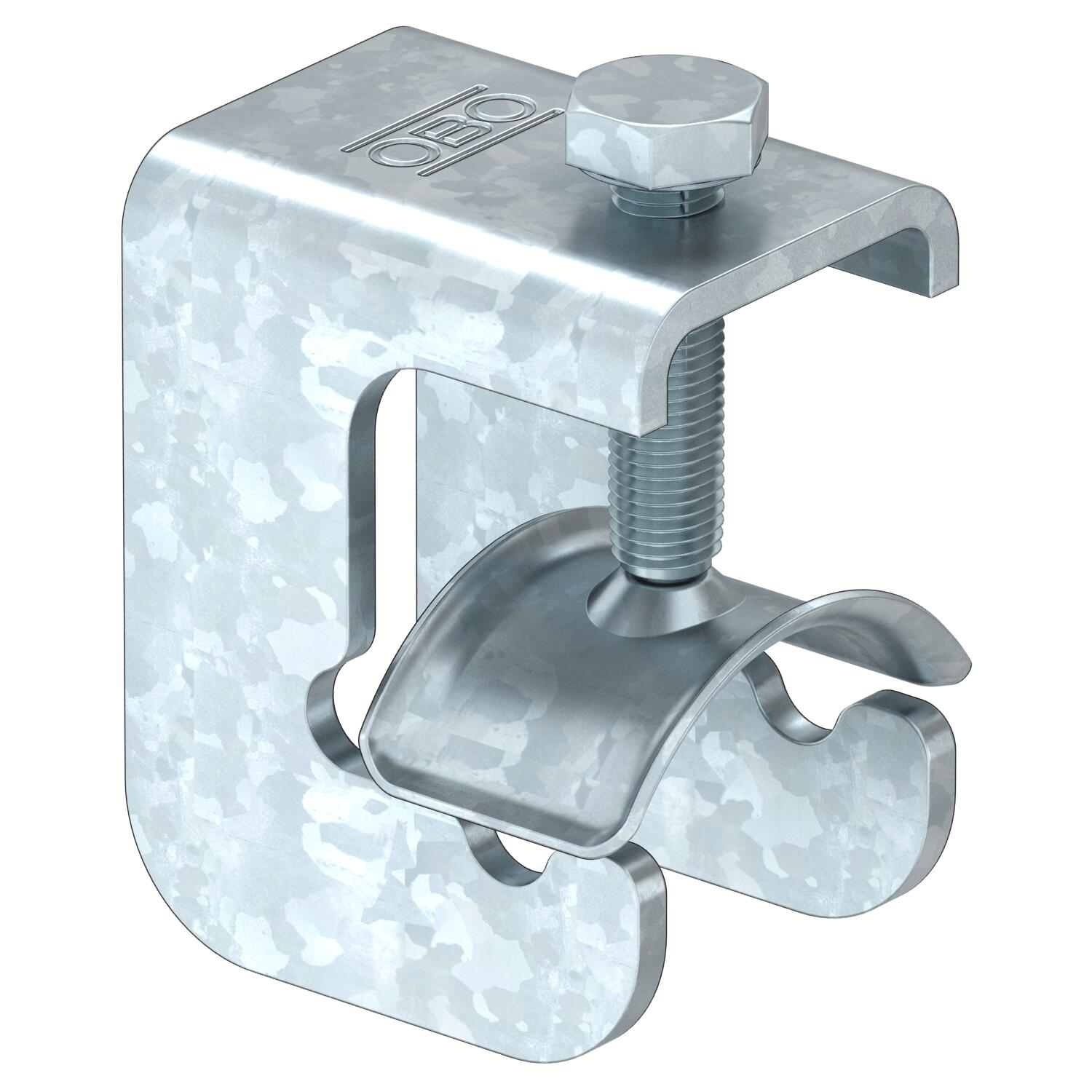

VARIO earthing terminal for large reinforced steels
Item no. 5014469 | EAN 4012196391059
- Product description
-

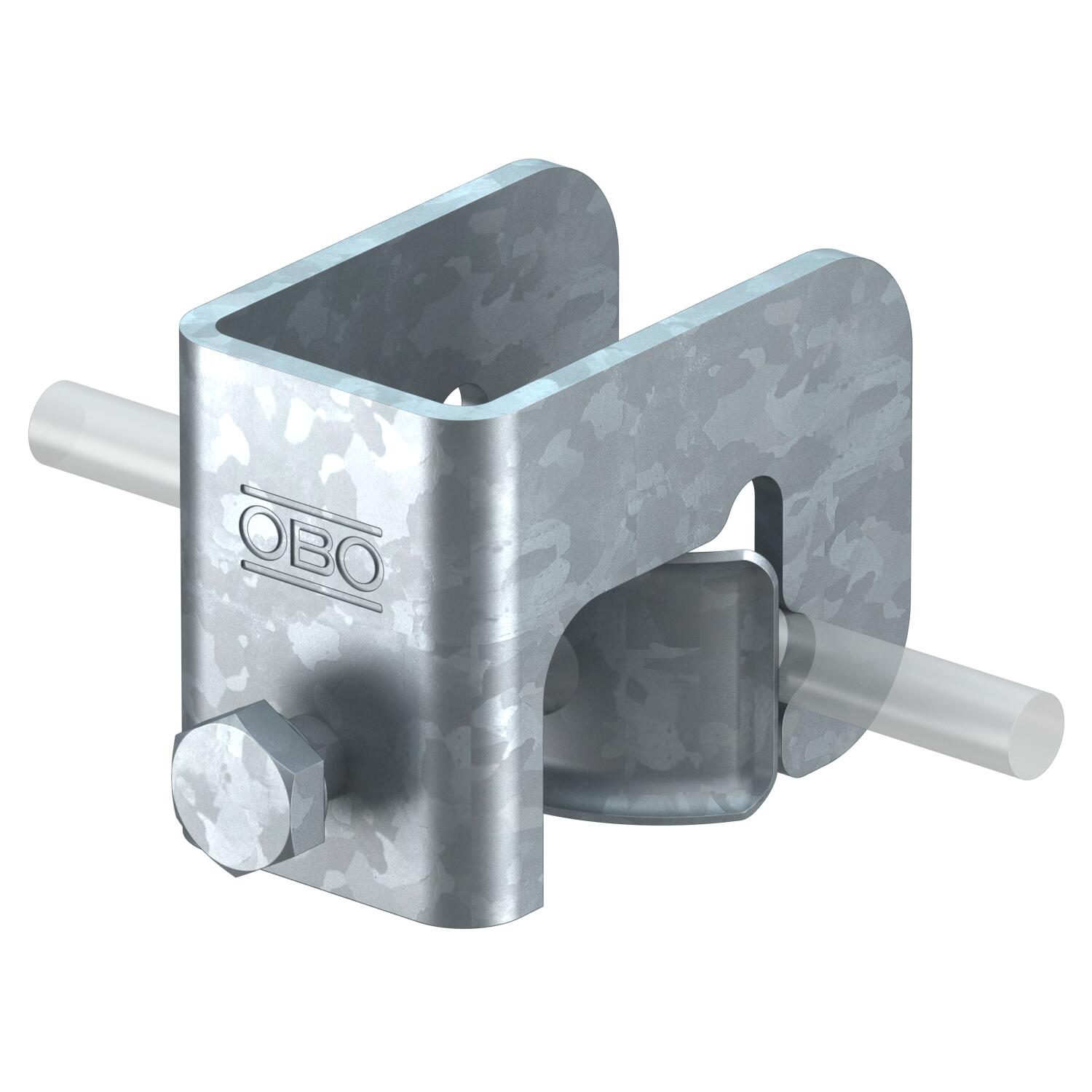

Product description• For armoured steel with 16-37 mm diameter and round conductors and flat conductors
• Rapid installation using open slot and only one M10 bolt
• Rotatable metal pressure trough for simple, safe mounting
-
- Technical data
-
Technical data

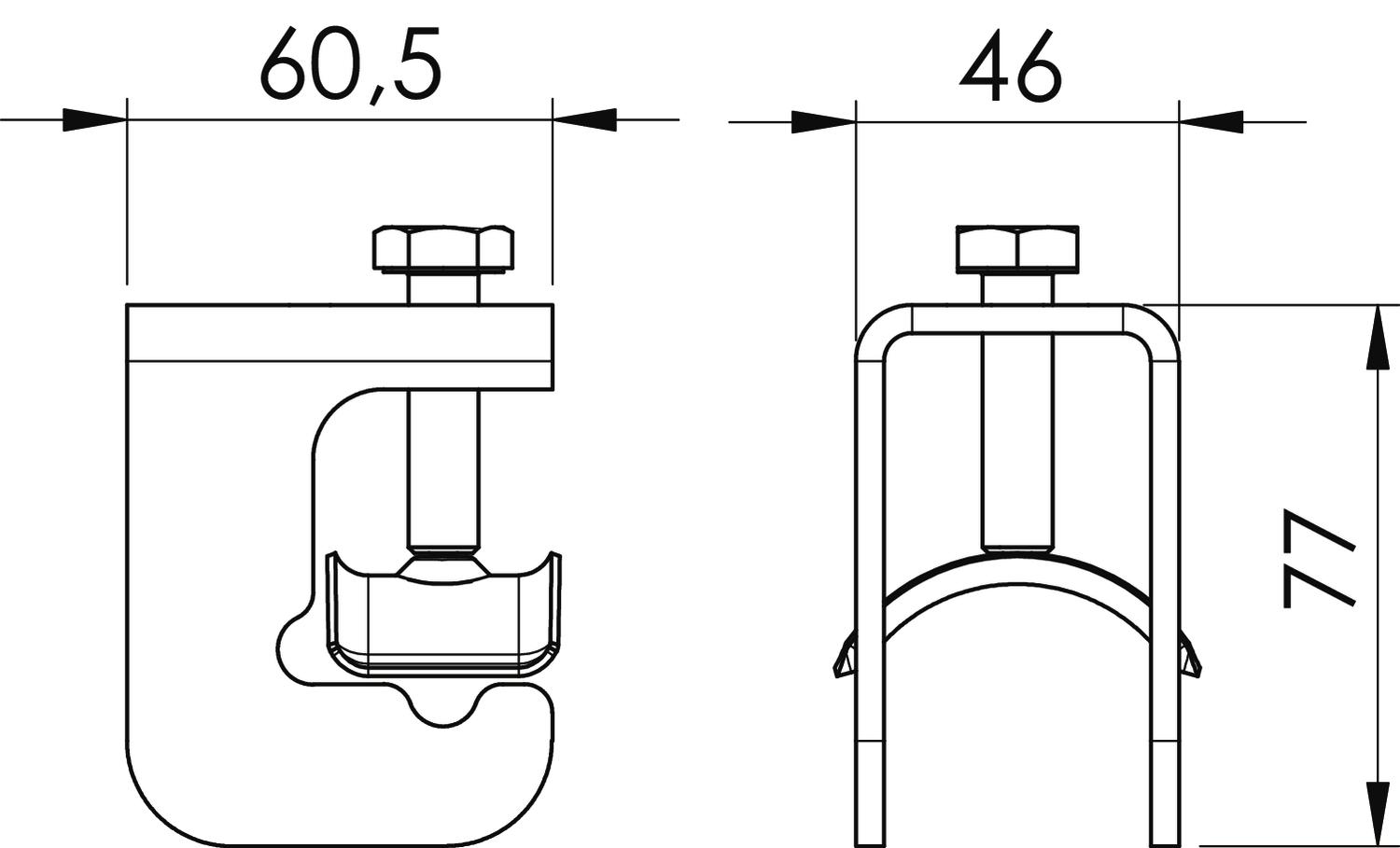

Dimension 61x46x88 Earthing connection diameter 20–30 mm Fit FL30x3-4mm / Rd 10 x Rd 16-37 mm Lightning current carrying capacity H/100 kA Material Steel Suitable for connection Miscellaneous Surface Hot-dip galvanised Type of connector Multipurpose connection clamp Type of fastening screw Hexagonal bolt CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,0841 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,0841 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 1814 FT D37 / 5014469 , 0.18MB , pdfEU declaration of conformity 1814 FT D37 / 5014469 , 0.06MB , pdfREACH Declaration of conformity 1814 FT D37 / 5014469 , 0.13MB , pdfRoHS Declaration of conformity 1814 FT D37 / 5014469 , 0.13MB , pdf
