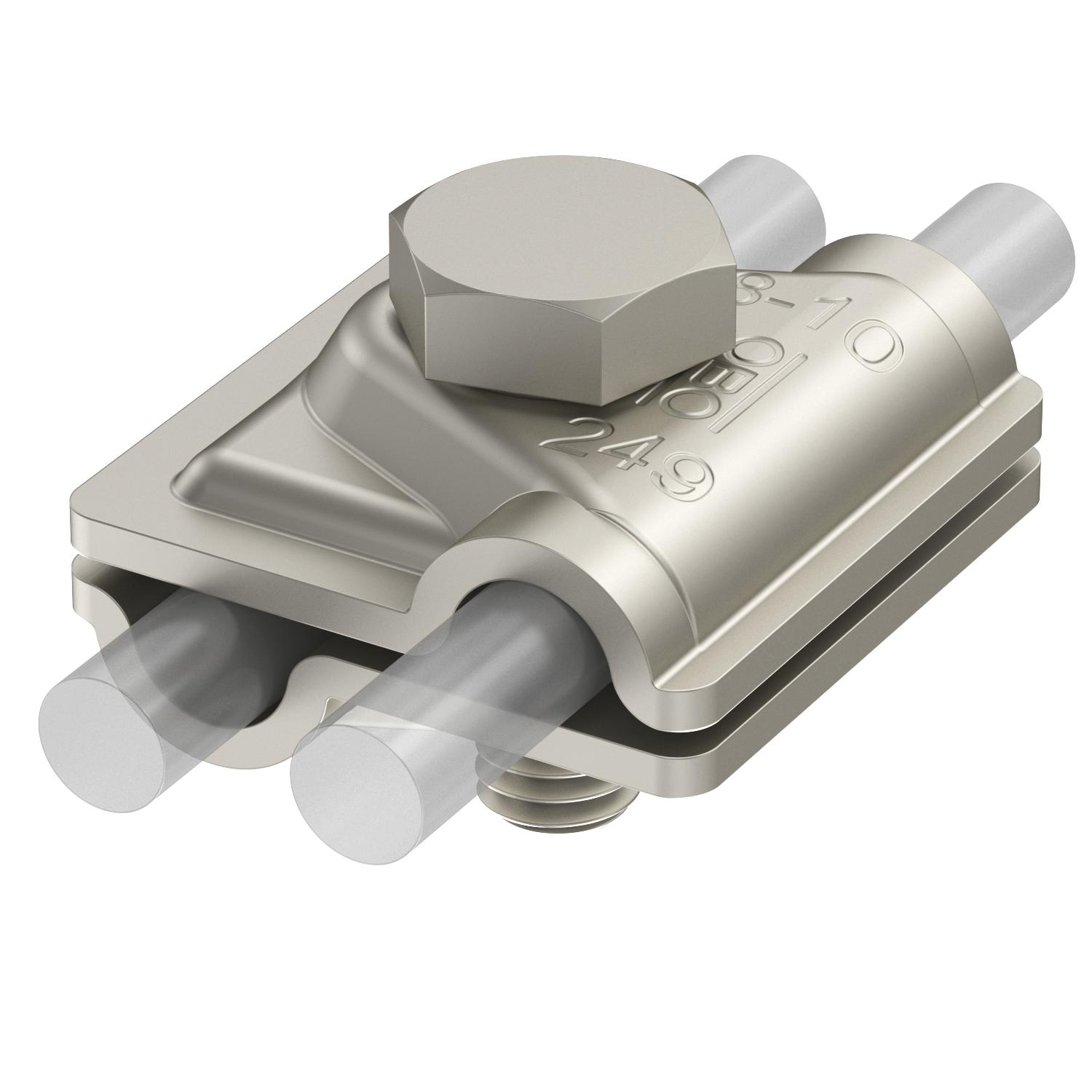

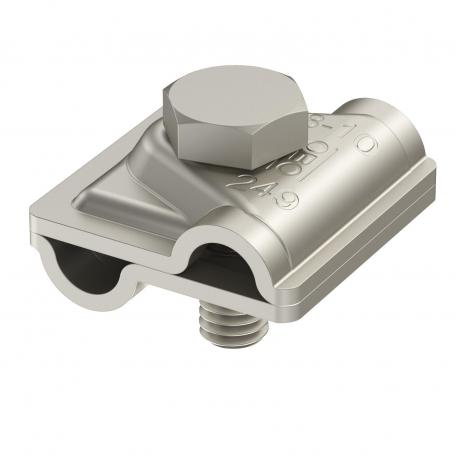

Vario quick connector A4
Item no. 5311405 | EAN 4012196428144
- Product description
-
Product description• For T, intersection and parallel connections
• Quick mounting using an M10 x 35 bolt, made from V4A
• Meets the requirements of VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data
Dimension 40x40mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Stainless steel 1.4571/1.4404 Round conductor diameter, conductor 1, max. 10 mm Round conductor diameter, conductor 1, min. 8 mm Round conductor diameter, conductor 2, max. 10 mm Round conductor diameter, conductor 2, min. 8 mm Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Multipurpose connection clamp Type of fastening screw Hexagonal bolt CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,6708 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,6708 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 249 S7 V4A / 5311405 , 0.18MB , pdfREACH Declaration of conformity 249 S7 V4A / 5311405 , 0.12MB , pdfRoHS Declaration of conformity 249 S7 V4A / 5311405 , 0.13MB , pdfNo invitation to tender text is available for this product.
