Washer A4 12 | | 6.4 | 1.6 | M6
morepic-1 morepic-2

Washer A4

Item no. 3402306 | EAN 4012195909415

Product description
Product description
Washer according to DIN 125, shape A, for universal use.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,0049 kg CO₂e / 1 Piece

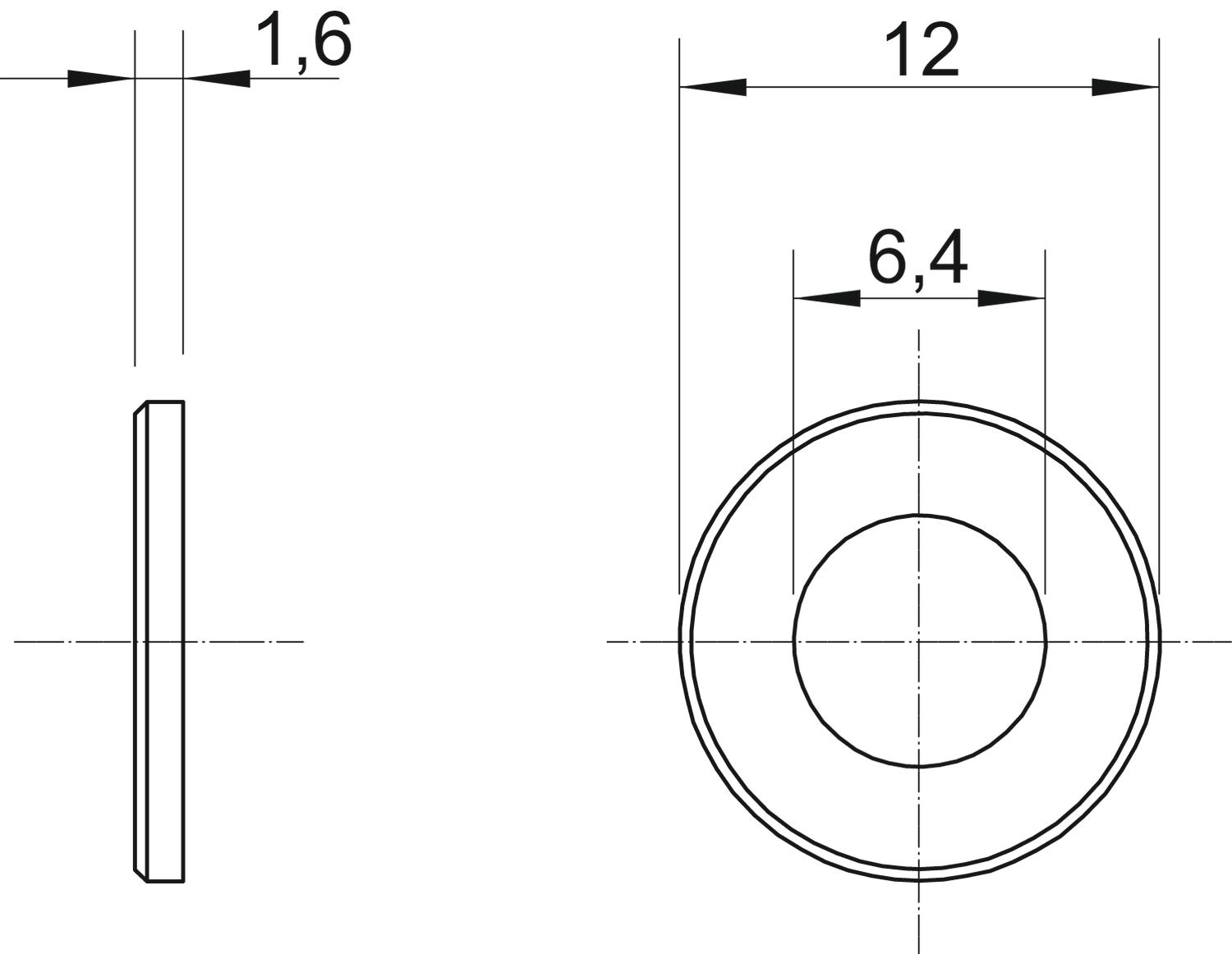

Diameter 12 mm
Dimension M6
Dimension d 6,4 mm
Dimension d min. 12 mm
Dimension h 1,6 mm
External diameter 12 mm
Faceted no
Hole diameter 6,4 mm
Hole shape Round
Inner diameter 6,4 mm
Material Stainless steel
Material thickness 1,6 mm
Surface Bright, treated
Thread M6
With toothing no
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no. Quantity SSU
WS M6 D12 A4 12 mm 6.4 mm 1.6 mm M6 3402306
100 piece
WS M8 D16 A4 16 mm 8.4 mm 1.6 mm M8 3402314
100 piece
WS M10 D20 A4 20 mm 10.5 mm 2 mm M10 3402322
100 piece
WS M12 D24 A4 24 mm 13 mm 2.5 mm M12 3402345
100 piece
