Washer ISO 7093

Item no. / Types

Dimension d min.

Dimension d

Dimension h

Thread

Product description

Product description

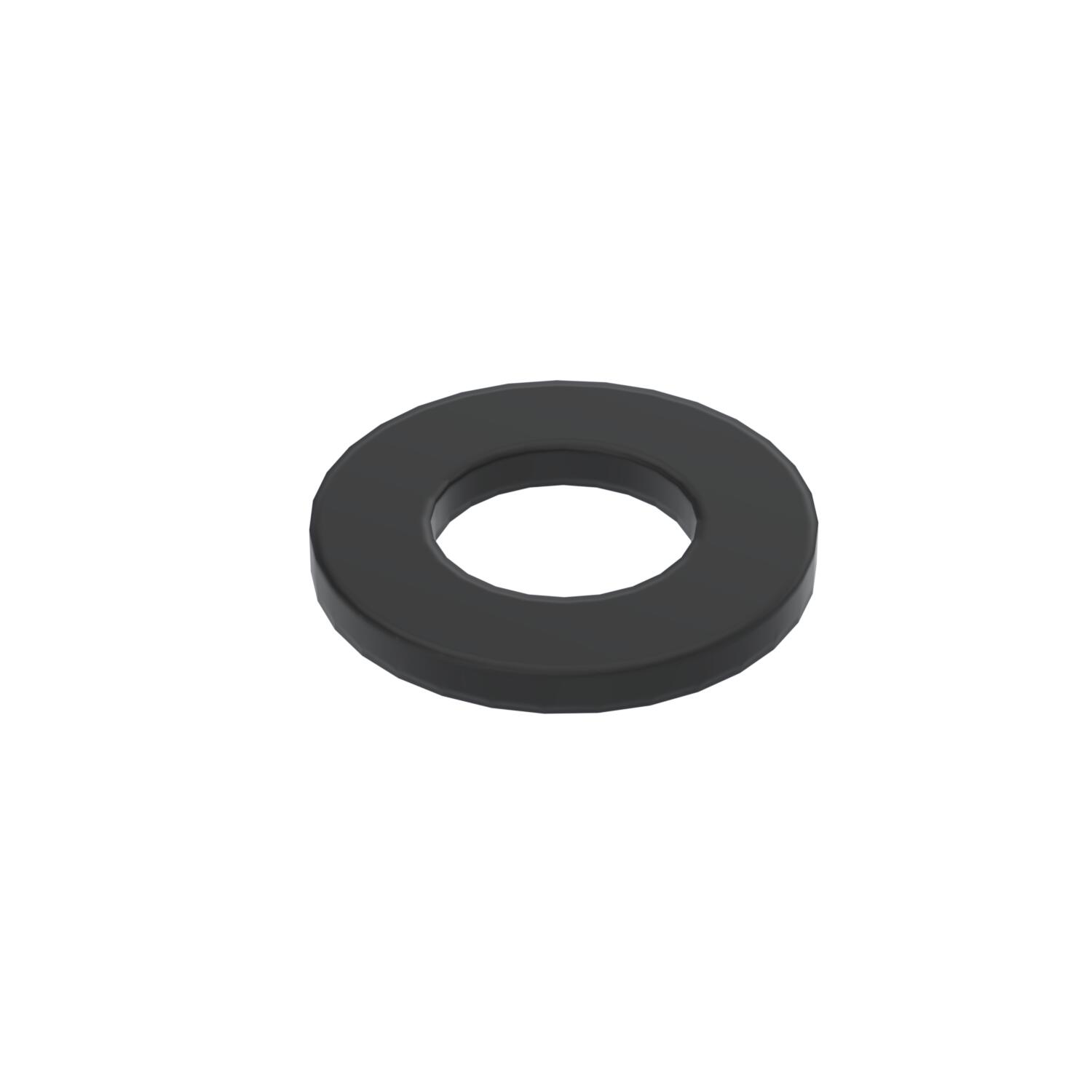

Washer according to DIN 125, form A, for universal use.

Technical data

Product series	BlackLine, Bolts and hooks
ROHS-conformant	yes
Surface	Electrogalvanised, black-passivated
Thread	M10

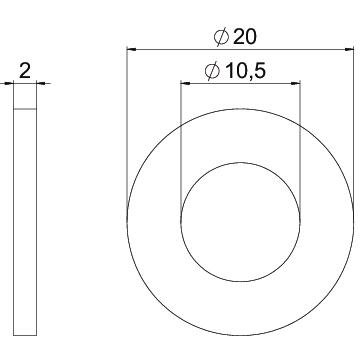

Dimension d	10,5 mm
Dimension d min.	20 mm

Dimension h	2 mm

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
WS M4 D09 G	9 mm	4.3 mm	0.8 mm	M4	3402045	piece	100 piece
WS M6 D12 G	12 mm	6.4 mm	1.6 mm	M6	3402061	piece	100 piece
WS M8 D16 G	16 mm	8.4 mm	1.6 mm	M8	3402088	piece	100 piece
WS M10 D20 G	20 mm	10.5 mm	2 mm	M10	3402096	piece	100 piece
WS M10 D20 G SW	20 mm	10.5 mm	2 mm	M10	3402098	piece	100 piece
WS M12 D24 G	24 mm	13 mm	2.5 mm	M12	3402126	piece	100 piece
