WDK device socket, type 2390
Item no. 6023207 | EAN 4012196024919
- Product description
-

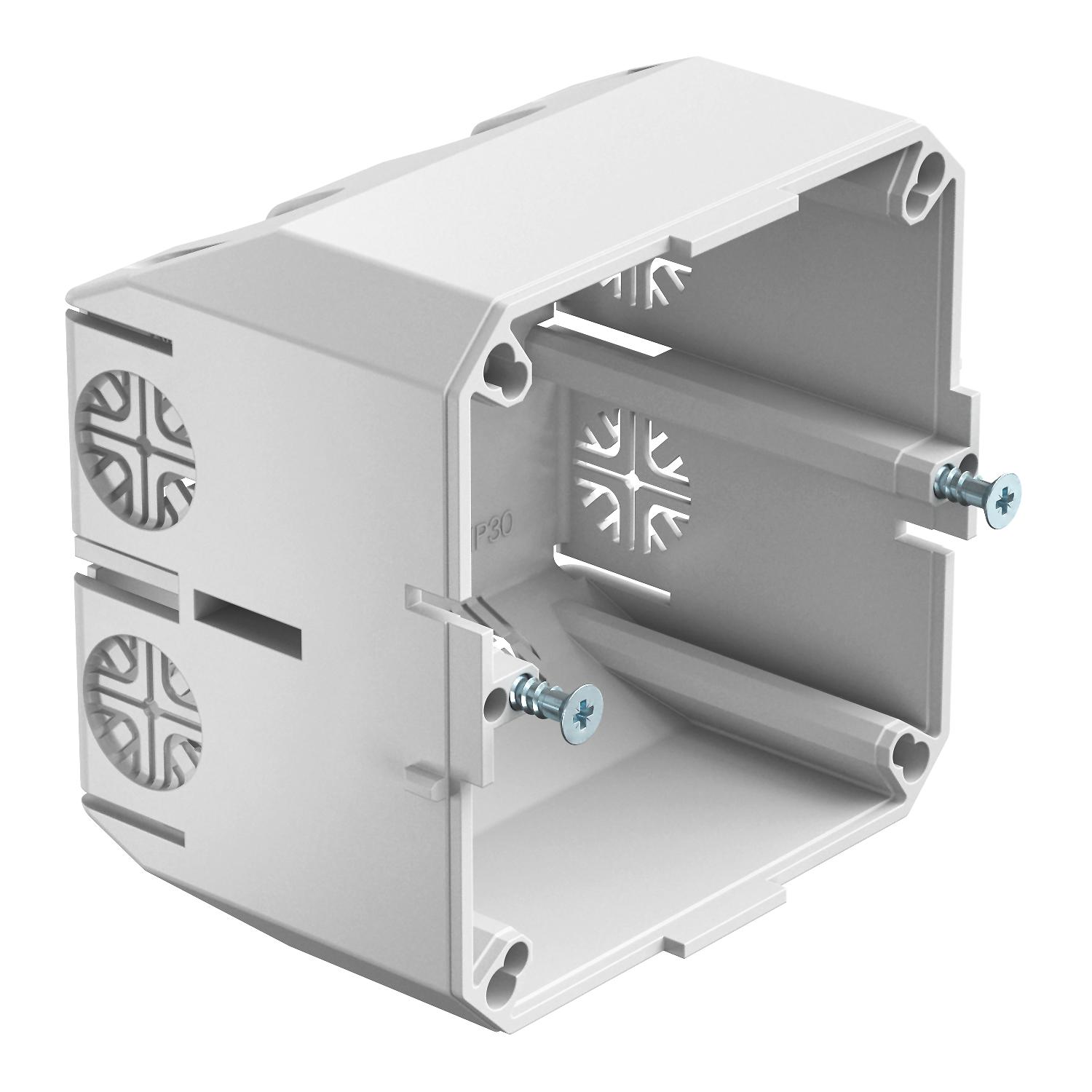

Product descriptionAccessory mounting box for the installation of devices with support rings and support clamps in WDK cable routing trunking of 60 mm trunking height. The device socket is placed on the floor connectors and fastened in the centre with a bolt.
Single underfloor box
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Halogen-free no Material Polyvinylchloride Number of units 1 Strain relief option no Version for Open With connection compartment no Dimensions

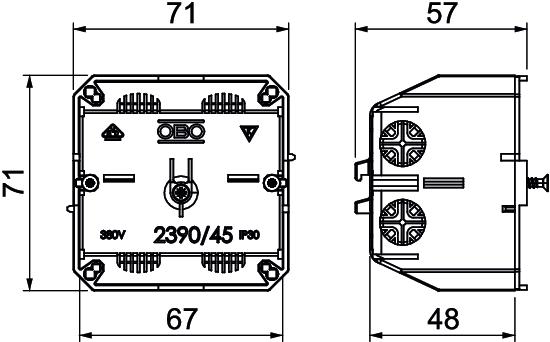

Height 56,6 mm Length 75 mm Width 71 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1586 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1586 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 2390 / 6023207 , 0.17MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity 2390 / 6023207 , 0.10MB , pdfREACH Declaration of conformity 2390 / 6023207 , 0.12MB , pdfRoHS Declaration of conformity 2390 / 6023207 , 0.12MB , pdfMounting instructions Accessory mounting box 2390 , 4.43MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
