Note: This article is discontinued.
You can find the current article here: 6036718 / 90° bend 85 FT
90° bend 85 FT
Item no. 7126417 | EAN 4012196248056
- Product description
-

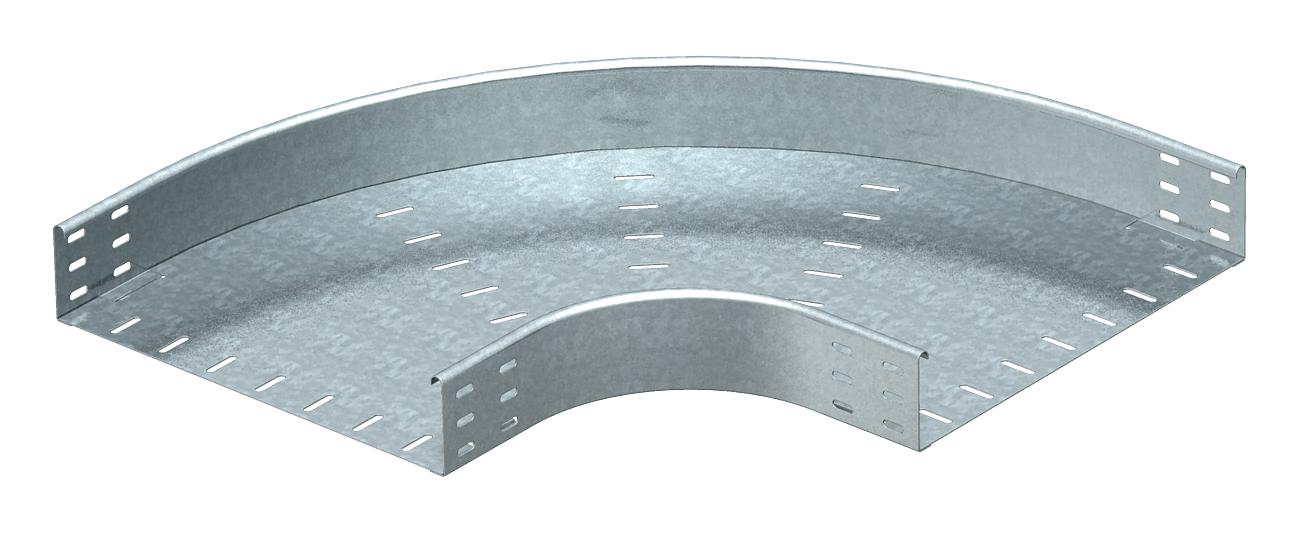

Product description90° bend, horizontal, for all cable tray types of 85 mm side height.
Fastening materials should be ordered separately.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Without connectors Dimension 85x400 Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Rustproof steel, pickled no Side perforation no Surface Hot-dip galvanised Type of connector, cable support system Screwed Wide-span version no Dimensions

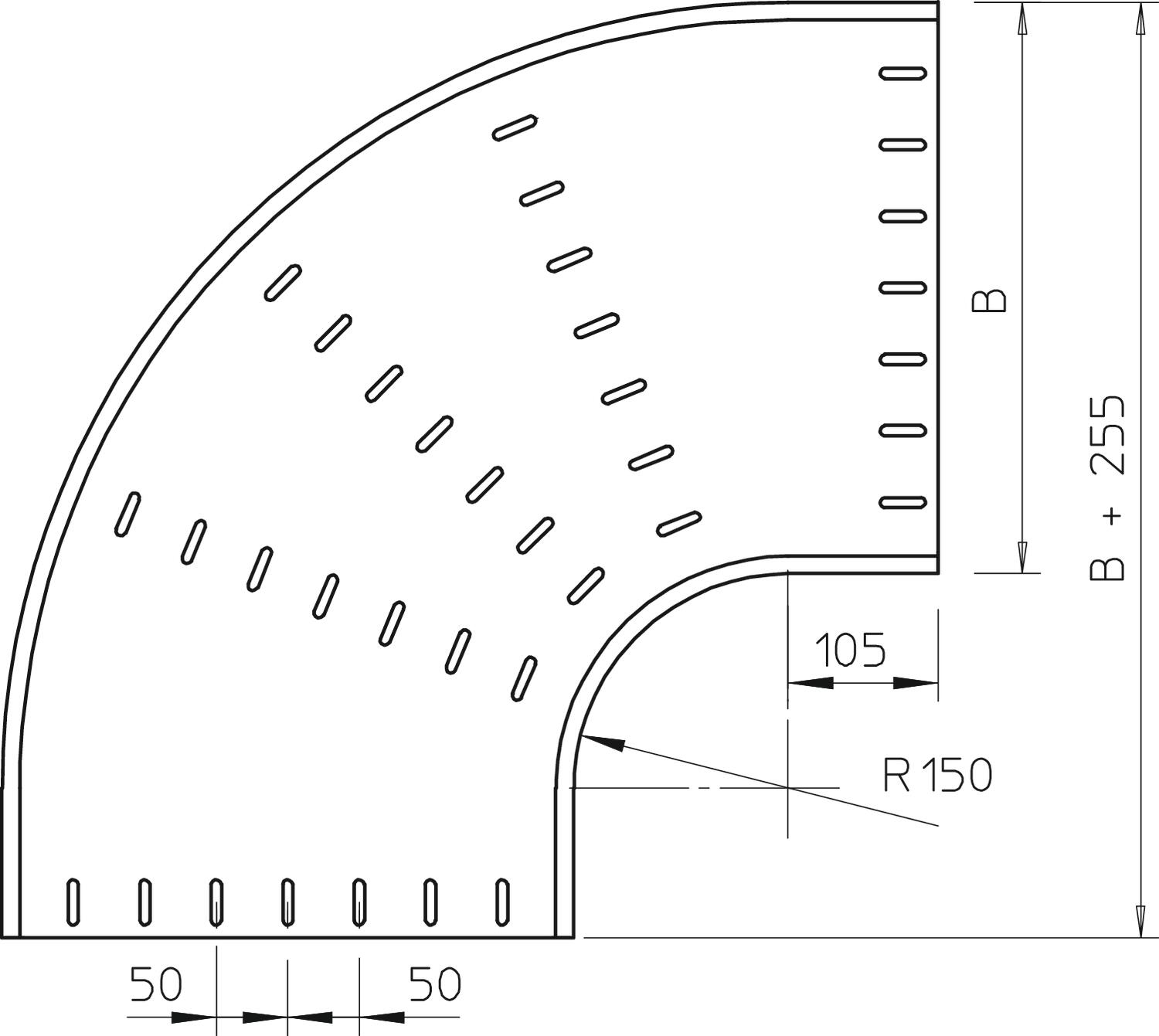

Dimension B 400 mm Dimension R 150 mm Height 3 in Height 85 mm Width 16 in Width 400 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet RB 90 840 FT / 7126417 , 0.17MB , pdfEU declaration of conformity RB 90 840 FT / 7126417 , 0.10MB , pdfREACH Declaration of conformity RB 90 840 FT / 7126417 , 0.12MB , pdfRoHS Declaration of conformity RB 90 840 FT / 7126417 , 0.12MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
