Note: This article is discontinued.
Cable and pipe spacer clip 732 with threaded connection V4A
Item no. 1360658 | EAN 4012195912446
- Product description
-
Product descriptionMounting with screw-in spacer clips. Spacer clips and screw-in spacer clips are available in various materials: in V2A stainless steel, in electrogalvanised, hot-dip galvanised steel or in aluminium. Fastening can be take place with bolt ties or Angler anchors and Sprint screws.
Depending on the design, the clips can be "shot" using a bolt-firing tool or nail device.
-
- Technical data
-
Technical data
Bolt M5 x 12 Clamping range D, max. 18 mm Clamping range D, min. 16,5 mm Dimension 16,5-18mm Distance to the wall yes Fastening type Threaded connection Halogen-free yes Hole size M6 Material Stainless steel 1.4571 Material thickness 1 mm Number of cables/pipes 1 Plastic-covered no Size PG11 Suitable in fire protection area yes Surface Bright, treated UV-resistant yes Version for Closed Dimensions

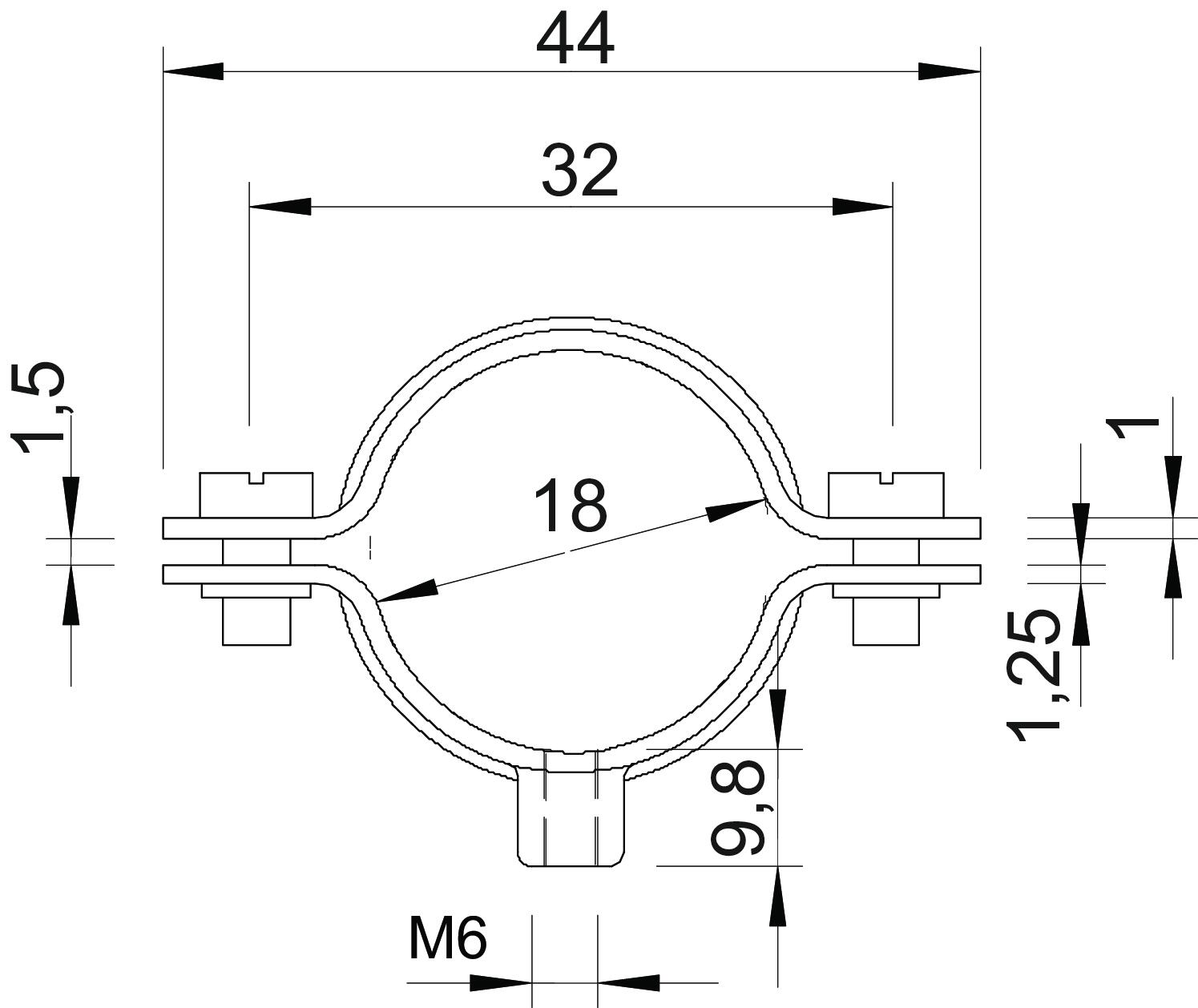

Dimension A 44 mm Dimension B 32 mm Dimension b1 9,8 mm Dimension t1 (mm) 1 mm Dimension t2 (mm) 1,25 mm Dimension x 1,5 mm Length 44 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1501 kg CO₂e / 1 Piece CO₂ Footprint (GWP) 0,1501 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-04-02T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 732 18 A4 / 1360658 , 0.20MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 732 18 A4 / 1360658 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 732 18 A4 / 1360658 , 0.09MB , pdfREACH Declaration of conformity 732 18 A4 / 1360658 , 0.12MB , pdfRoHS Declaration of conformity 732 18 A4 / 1360658 , 0.12MB , pdf
