Cable tray DKS 60 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

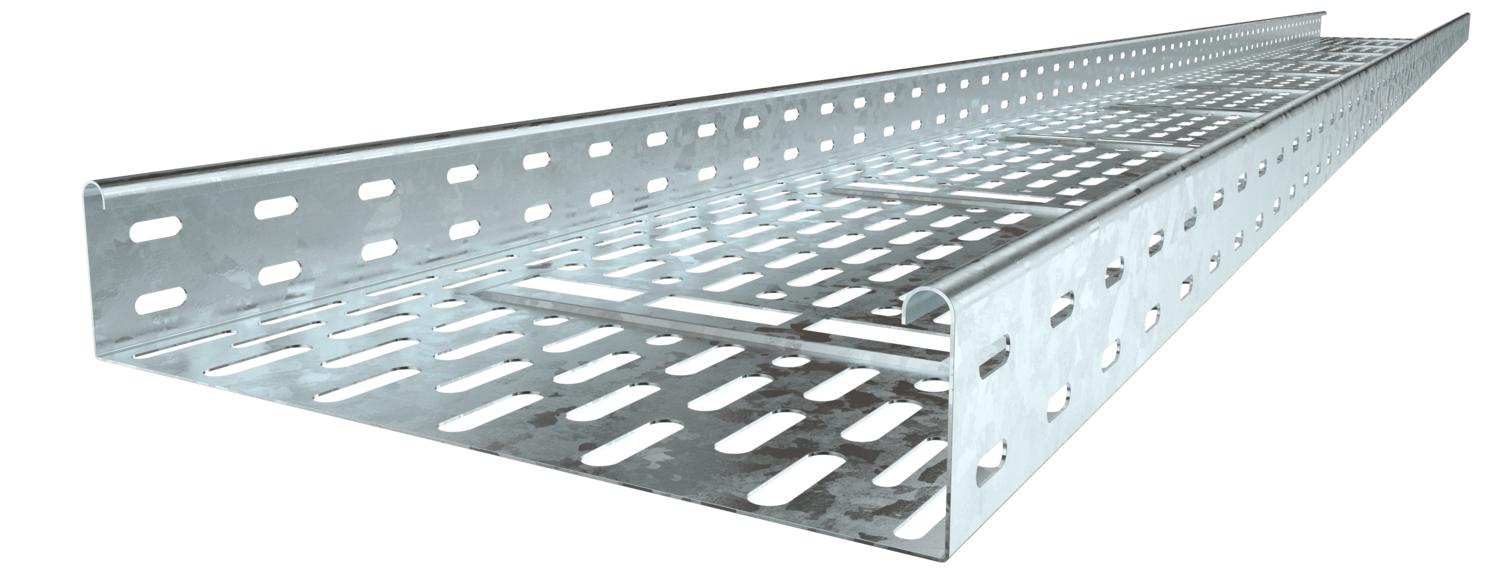

DKS 60 = perforated cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Permeable cable tray system to VdS guideline 2092 with 30% hole surface for use under sprinkler systems.

Bottom penetration from width 200 mm.

Connecting parts should be ordered in the appropriate quantity.

Technical data

Base perforation	1
Colour	zinc
Connector version	Without connectors
Dimension	60 x 100
Dimension	60x100x3000
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1 mm

Plate thickness	0,06 in
Rustproof steel, pickled	no
Side perforation	yes
Sprinkler system use	yes
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	58 cm²
Usable cross-section	5800 mm²
Wide-span version	no
With cover	no

Support spacing 1.5 m	1,75 kN/m
Support spacing 2.0 m	0,95 kN/m

Support spacing 2.5 m	0,5 kN/m
Support spacing 3.0 m	0,4 kN/m

CO2 Footprint (GWP) Cradle-to-Gate	4,3682 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	4,3682 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
DKS 610 FT	3000 mm	100 mm	1 mm	no	Steel	Hot-dip galvanised	6085326	m	3 m
DKS 620 FT	3000 mm	200 mm	1 mm	no	Steel	Hot-dip galvanised	6085342	m	3 m
DKS 630 FT	3000 mm	300 mm	1 mm	no	Steel	Hot-dip galvanised	6085369	m	3 m
DKS 640 FT	3000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised	6085512	m	3 m
DKS 650 FT	3000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised	6085539	m	3 m
DKS 660 FT	3000 mm	600 mm	1.5 mm	no	Steel	Hot-dip galvanised	6085555	m	3 m
