Note: This article is discontinued.

Clamping angle KWS A2

Item no. / Types

Height

F in kN	5.7 kN

Product description

Product description

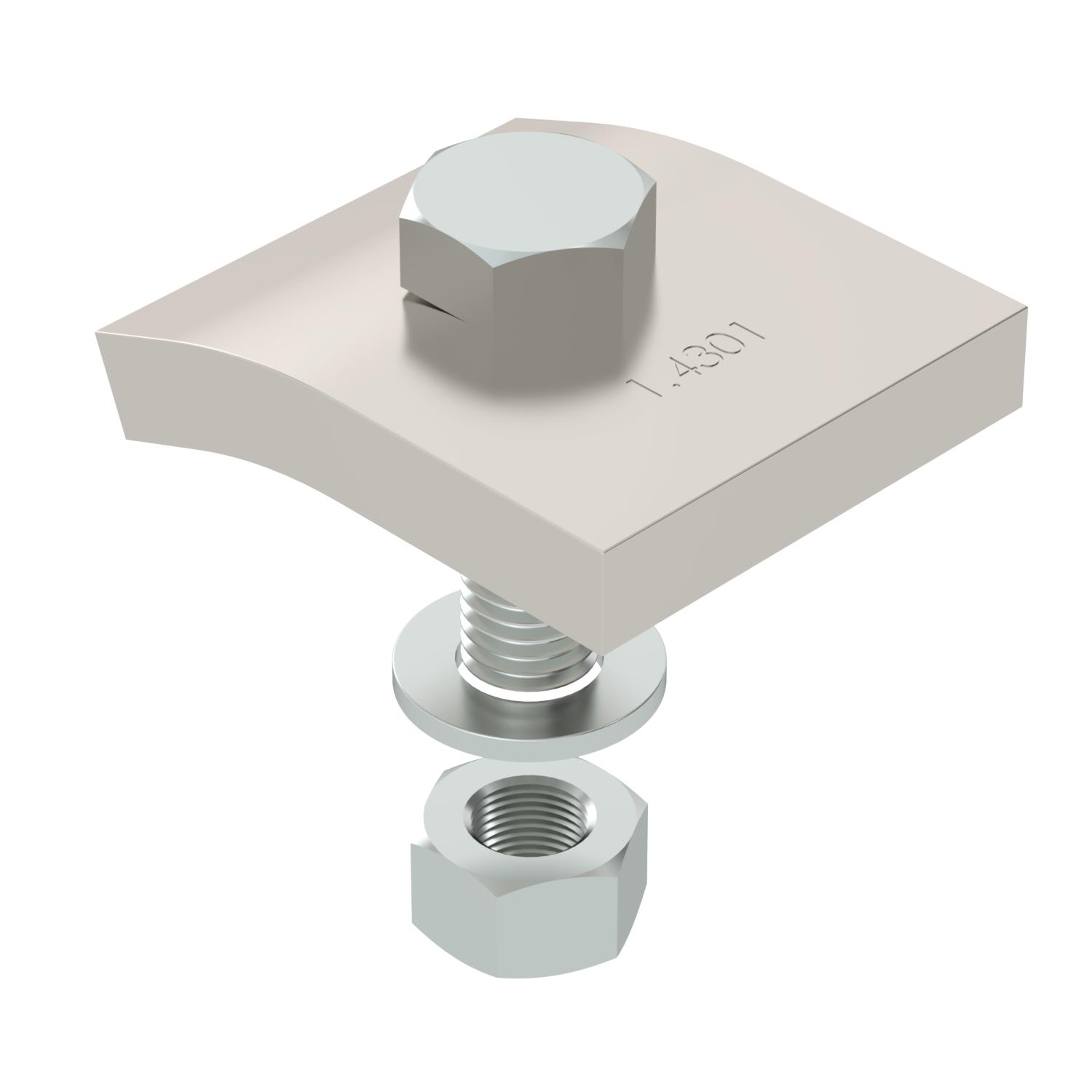

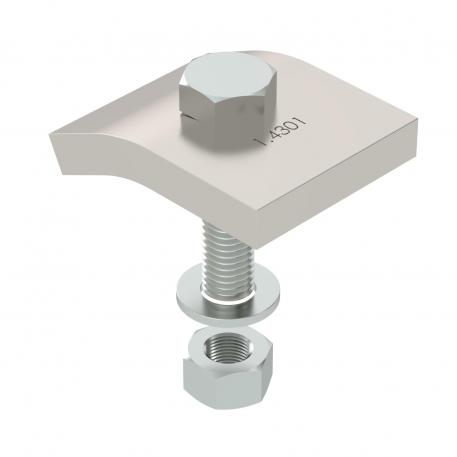

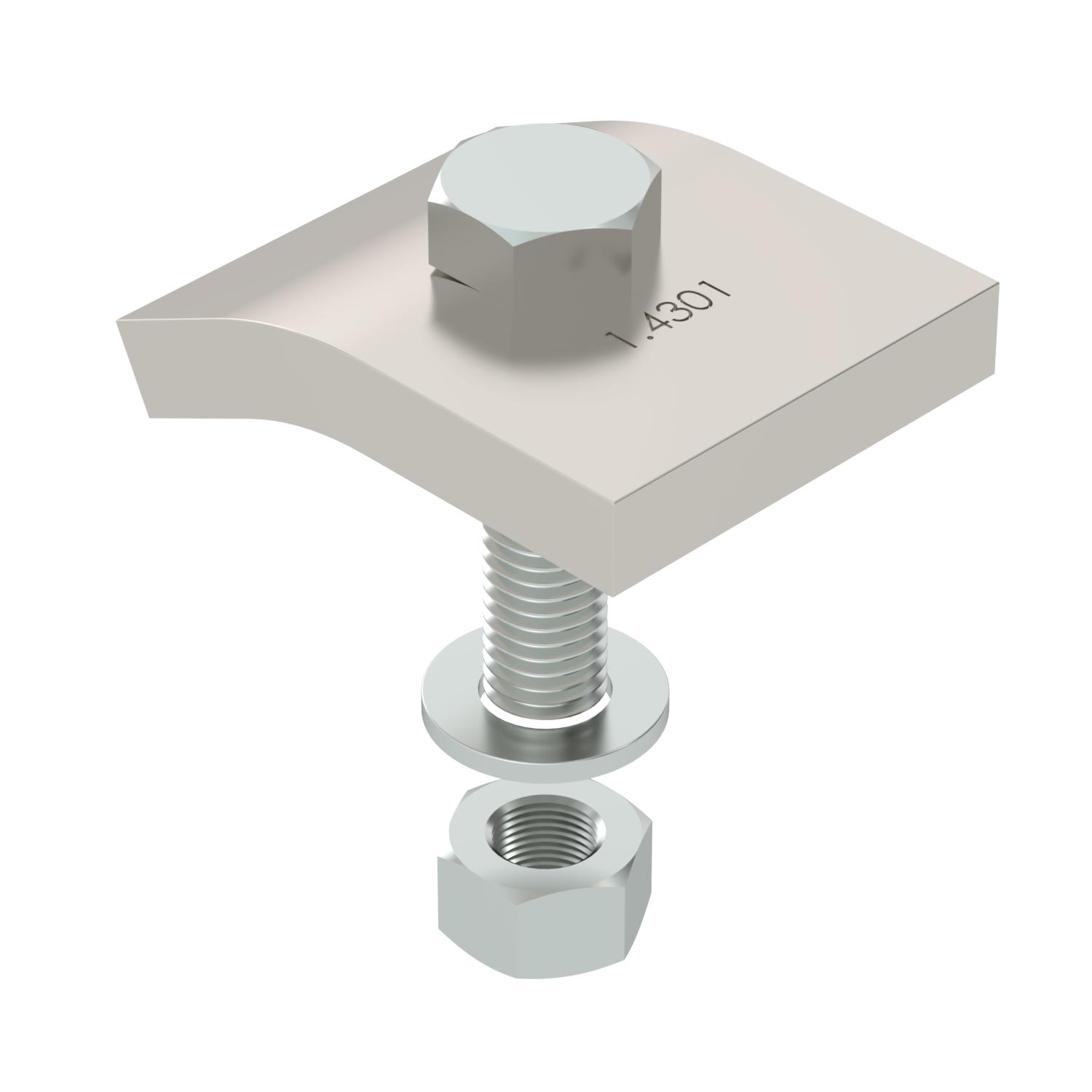

Clamping angle, with hexagonal bolt, type KWS, for direct fixing of constructions to steel girder flanges.

Choose the clamping angle according to the thickness of the flange.

Technical data

All types

All types

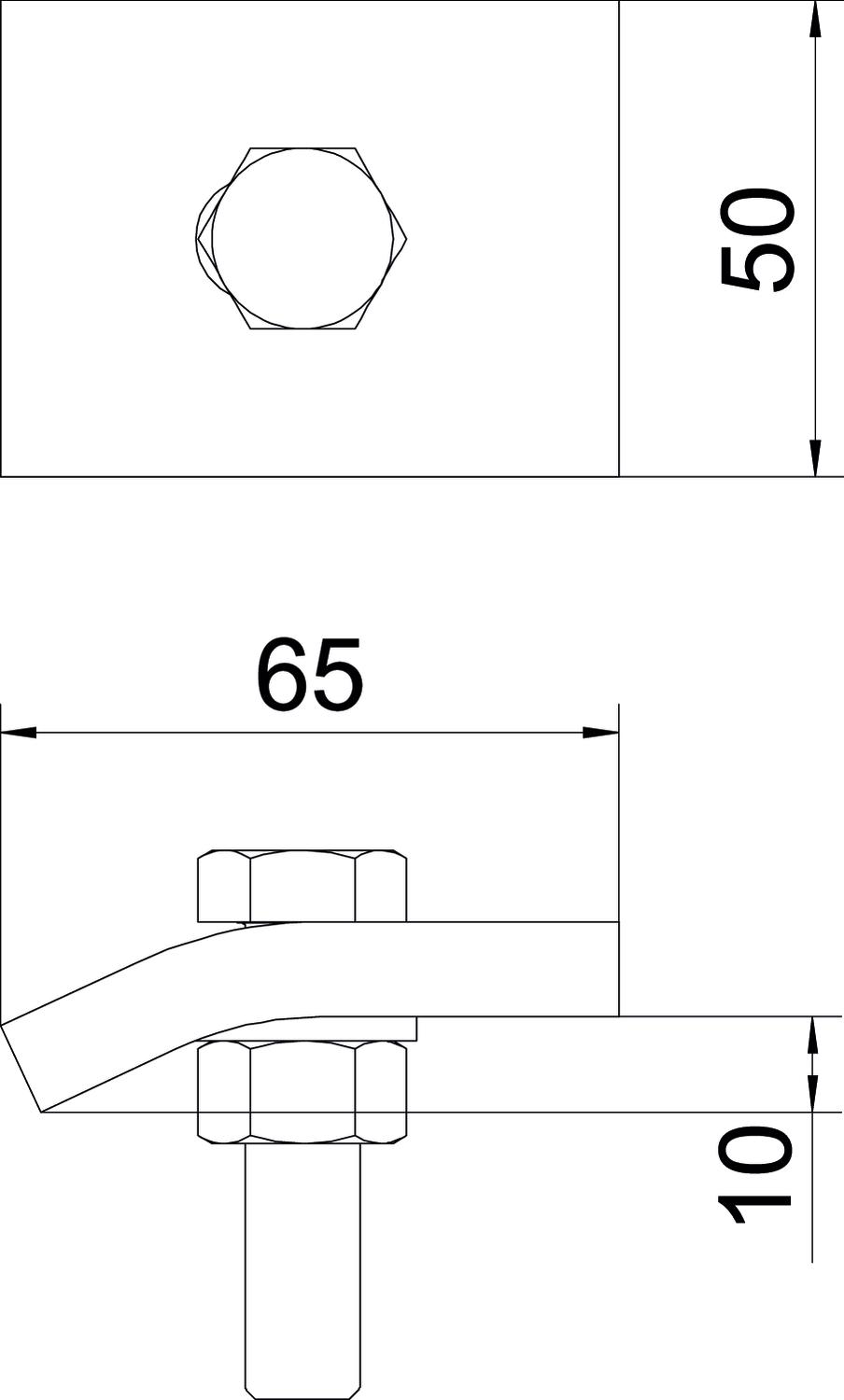

Types	Height	F in kN	Item no.	Quantity	SSU
KWS 10 A2	10 mm	5.7 kN	6355412	Pair	5 Pair
KWS 15 A2	15 mm	5.7 kN	6355420	Pair	5 Pair
KWS 20 A2	20 mm	5.7 kN	6355439	Pair	5 Pair
KWS 25 A2	25 mm	5.7 kN	6355447	Pair	5 Pair

Downloads

Data sheet KWS 10 A2 / 6355412 , 0.17MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Catalogue Cable support systems , 54.52MB , pdf

EU declaration of conformity KWS 10 A2 / 6355412 , 0.11MB , pdf

Download

Download

Mounting instructions General information on the mounting , 2.65MB , pdf

Mounting instructions Mounting instructions, clamp fastening , 0.04MB , pdf

KWS 10 A2 / 6355412
